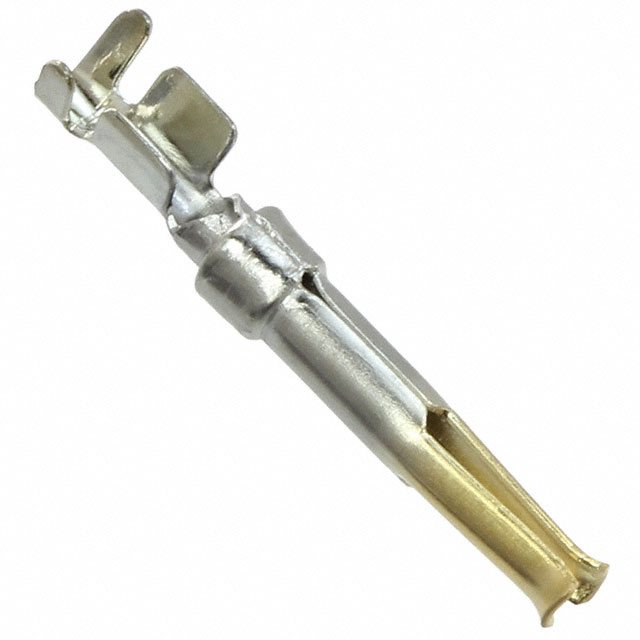

162A11849X

Active

Amphenol CONEC

CONN D-SUB SOCKET 20-24AWG CRIMP

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB SOCKET 20-24AWG CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	162A11849X

Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Phosphor Bronze
Contact Termination	Crimp
Contact Type	Female Socket
Termination Finish	Gold
Termination Finish Thickness	Flash
Type	Signal
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	20 AWG

Part	Contact Form	Termination Finish	Termination Finish Thickness	Contact Type	Type	Contact Termination	Contact Material	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish Thickness	Contact Finish	Features
Amphenol CONEC 162A11849X	Stamped	Gold	Flash	Female Socket	Signal	Crimp	Phosphor Bronze	20 AWG	24 AWG	Flash	Gold
Amphenol CONEC 162A11889X	Stamped			Female Socket	Signal	Crimp	Phosphor Bronze	24 AWG	28 AWG		Gold	Insulation Support

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

D-Sub Contact Female Socket Gold 20-24 AWG Crimp Stamped
