EN3C3M16LX

Active

Switchcraft Inc.

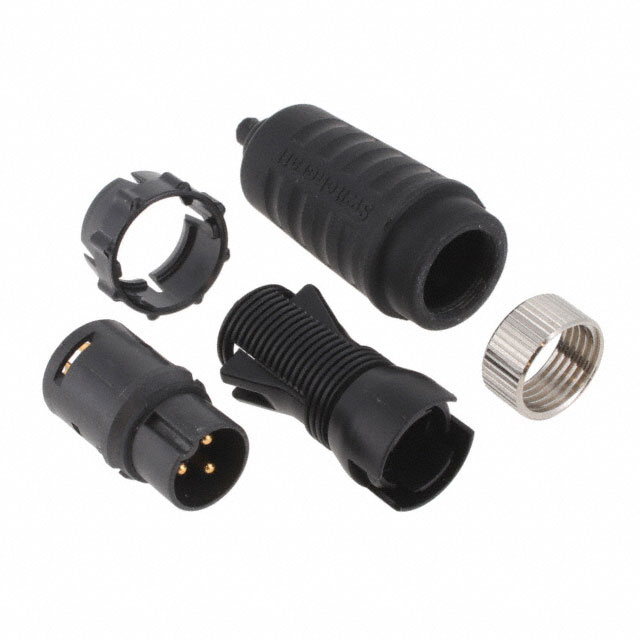

CONN PLUG MALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN3C3M16LX

Active

Switchcraft Inc.

CONN PLUG MALE 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3C3M16LX	EN3C3M Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	4.06 - 6.73 mm
Cable Opening	-	0.16 - 0.265 in
Cable Opening [Max] [diameter]	0.38 in	0.38 in
Cable Opening [Max] [diameter]	9.65 mm	9.65 mm
Cable Opening [Min] [diameter]	5.84 mm	5.84 mm
Cable Opening [Min] [diameter]	0.23 in	0.23 in
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	13 A	7.5 - 13 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Coupling Nut, Backshell	Cable Clamp, Coupling Nut, Backshell
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	-	Crimp
Voltage Rating	250 VAC	250 VAC

EN3C3M Series

CONN PLUG MALE 3P GOLD SLDR CUP

Part	Connector Type	Color	Fastening Type	Insert Material	Ingress Protection	Features	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Applications	Backshell Material, Plating	Contact Finish - Mating	Current Rating (Amps)	Voltage Rating	Contact Material	Material Flammability Rating	Orientation	Mounting Type	Primary Material	Cable Opening [diameter]	Cable Opening [diameter]	Termination
Switchcraft Inc. EN3C3M16LX	Male Pins, Plug	Black	Bayonet Lock	Elastomer	IP66/IP68	Backshell, Cable Clamp, Coupling Nut	Unshielded	65 °C	-40 °C	5.84 mm	0.38 in	9.65 mm	0.23 in	General Purpose, Instrumentation, Marine, Medical	Thermoplastic	Gold	13 A	250 VAC	Copper Alloy	UL94 V-0	Keyed	Free Hanging (In-Line)	Plastic
Switchcraft Inc. EN3C3M16X	Male Pins, Plug	Black	Bayonet Lock	Elastomer	IP66/IP68	Backshell, Cable Clamp, Coupling Nut	Unshielded	65 °C	-40 °C					General Purpose, Instrumentation, Marine, Medical	Thermoplastic	Gold	13 A	250 VAC	Copper Alloy	UL94 V-0	Keyed	Free Hanging (In-Line)	Plastic	4.06 mm, 6.73 mm	0.16 in, 0.265 in
Switchcraft Inc. EN3C3MCX	Male Pins, Plug	Black	Bayonet Lock	Elastomer	IP66/IP68	Backshell, Cable Clamp, Coupling Nut	Unshielded	65 °C	-40 °C					General Purpose, Instrumentation, Marine, Medical	Thermoplastic	Gold	7.5 A	250 VAC	Copper Alloy	UL94 V-0	Keyed	Free Hanging (In-Line)	Plastic	4.06 mm, 6.73 mm	0.16 in, 0.265 in	Crimp
Switchcraft Inc. EN3C3M16CX	Male Pins, Plug	Black	Bayonet Lock	Elastomer	IP66/IP68	Backshell, Cable Clamp, Coupling Nut	Unshielded	65 °C	-40 °C					General Purpose, Instrumentation, Marine, Medical	Thermoplastic	Gold	13 A	250 VAC	Copper Alloy	UL94 V-0	Keyed	Free Hanging (In-Line)	Plastic	4.06 mm, 6.73 mm	0.16 in, 0.265 in	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.52
		10	$ 7.32
		25	$ 6.62
		50	$ 6.38

Description

General part information

EN3C3M Series

3 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources
