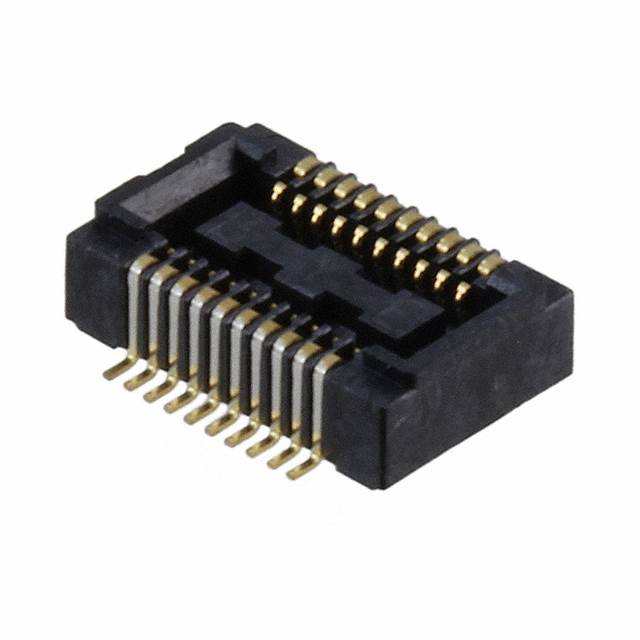

AXK720247G

Active

Panasonic Electric Works

CONN SOCKET 20POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK720247G

Connector Type	Center Strip, Socket, Outer Edge Contacts
Contact Finish	Gold
Height Above Board	0.076 in
Height Above Board	1.92 mm
Mated Stacking Heights	2 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Pitch [x]	Pitch [x]	Mounting Type	Height Above Board	Height Above Board	Number of Rows	Contact Finish	Connector Type	Number of Positions	Mated Stacking Heights
Panasonic Electric Works AXK720247G	0.016 in	0.4 mm	Surface Mount	0.076 in	1.92 mm	2	Gold	Center Strip Outer Edge Contacts Socket	20	2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Connector Socket, Center Strip, Outer Edge Contacts Surface Mount Gold
