135111-02-M0.50

Active

Amphenol RF

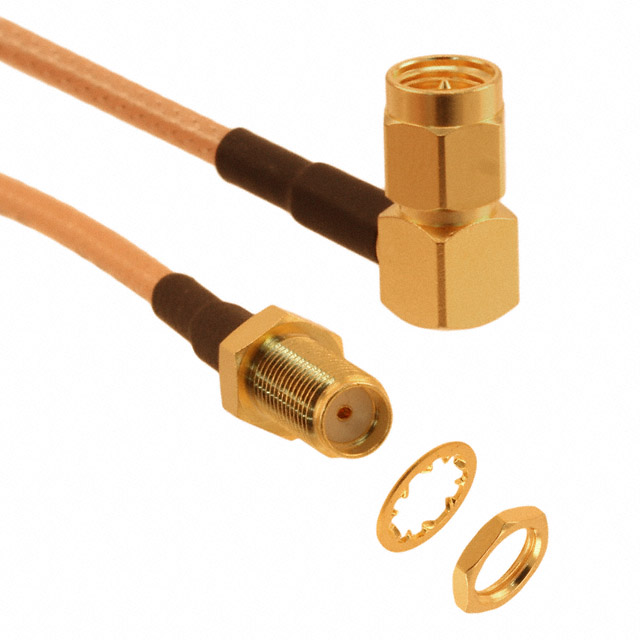

RF / COAXIAL CABLE ASSEMBLY, 90° SMA PLUG TO SMA BULKHEAD JACK, RG174/U, 50 OHM, 19.7 ", 500 MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsManufacturer Catalogue EN

135111-02-M0.50

Active

Amphenol RF

RF / COAXIAL CABLE ASSEMBLY, 90° SMA PLUG TO SMA BULKHEAD JACK, RG174/U, 50 OHM, 19.7 ", 500 MM

Deep-Dive with AI

DocumentsManufacturer Catalogue EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	135111-02-M0.50

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMA Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Copper
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms
Style	SMA to SMA

135111 Series

Part	1st Connector Mounting Feature	1st Connector	Style	Frequency - Max [Max]	Overall Impedance	2nd Contact Gender	2nd Connector	Features	2nd Connector Mounting Type	1st Connector Mounting Type	Color	1st Contact Gender	Cable Impedance	Cable Type	Length	Length	Length
Amphenol RF 135111-02-M0.50	Bulkhead - Front Side Nut	SMA Jack	SMA to SMA	3 GHz	50 Ohms	Male	SMA Plug Right Angle	Shielded	Free Hanging (In-Line)	Panel Mount	Copper	Female	50 Ohms	RG-174	50 cm	19.69 "
Amphenol RF 135111-04-M1.00	Bulkhead - Front Side Nut	SMA Jack	SMA to SMA	1 GHz	50 Ohms	Male	SMA Plug Right Angle	Shielded	Free Hanging (In-Line)	Panel Mount	Black	Female	50 Ohms	RG-58	1 m	39.4 in	3.3 ft
Amphenol RF 135111-04-06.00	Bulkhead - Front Side Nut	SMA Jack	SMA to SMA	1 GHz	50 Ohms	Male	SMA Plug Right Angle	Shielded	Free Hanging (In-Line)	Panel Mount	Black	Female	50 Ohms	RG-58	152.4 mm	6 in
Amphenol RF 135111-01-12.00	Bulkhead - Front Side Nut	SMA Jack	SMA to SMA	3 GHz	50 Ohms	Male	SMA Plug Right Angle	Shielded	Free Hanging (In-Line)	Panel Mount	Copper	Female	50 Ohms	RG-316	304.8 mm	12 "
Amphenol RF 135111-07-12.00	Bulkhead - Front Side Nut	SMA Jack	SMA to SMA	1 GHz	50 Ohms	Male	SMA Plug Right Angle	Shielded	Free Hanging (In-Line)	Panel Mount	Copper	Female	50 Ohms	RG-142	304.8 mm	12 "
Amphenol RF 135111-02-48.00	Bulkhead - Front Side Nut	SMA Jack	SMA to SMA	3 GHz	50 Ohms	Male	SMA Plug Right Angle	Shielded	Free Hanging (In-Line)	Panel Mount	Copper	Female	50 Ohms	RG-174	1200 mm	48 in	4 ft
Amphenol RF 135111-07-24.00	Bulkhead - Front Side Nut	SMA Jack	SMA to SMA	1 GHz	50 Ohms	Male	SMA Plug Right Angle	Shielded	Free Hanging (In-Line)	Panel Mount	Copper	Female	50 Ohms	RG-142	609.6 mm	24 "
Amphenol RF 135111-02-24.00	Bulkhead - Front Side Nut	SMA Jack	SMA to SMA	3 GHz	50 Ohms	Male	SMA Plug Right Angle	Shielded	Free Hanging (In-Line)	Panel Mount	Copper	Female	50 Ohms	RG-174	609.6 mm	24 "
Amphenol RF 135111-03-M0.75	Bulkhead - Front Side Nut	SMA Jack	SMA to SMA	3 GHz	50 Ohms	Male	SMA Plug Right Angle	Shielded	Free Hanging (In-Line)	Panel Mount	Copper	Female	50 Ohms	RG-316 DS	750 mm	29.53 "
Amphenol RF 135111-04-M0.50	Bulkhead - Front Side Nut	SMA Jack	SMA to SMA	1 GHz	50 Ohms	Male	SMA Plug Right Angle	Shielded	Free Hanging (In-Line)	Panel Mount	Black	Female	50 Ohms	RG-58	50 cm	19.69 "
