RKWT 4-633/5M

Active

LUMBERG AUTOMATION

SENSOR CABLE, SELF LOCKING, 90° M12 RECEPTACLE, FREE END, 4 POSITIONS, 5 M, 16.4 FT, RKWT SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

RKWT 4-633/5M

Active

LUMBERG AUTOMATION

SENSOR CABLE, SELF LOCKING, 90° M12 RECEPTACLE, FREE END, 4 POSITIONS, 5 M, 16.4 FT, RKWT SERIES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RKWT 4-633/5M

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M12
1st Connector Type	Plug, Right Angle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Yellow
Ingress Protection	NEMA 6, IP67
Shielding	Unshielded
Usage	Industrial Environments

RKWT Series

Part	1st Connector Number of Positions Loaded	1st Connector Mounting Type	2nd Connector Type	1st Connector Gender	Cable Material	1st Connector Number of Positions	Ingress Protection	Color	Cable Type	Shielding	1st Connector Orientation [custom]	1st Connector Type	1st Connector Shell Size - Insert	Assembly Configuration	Usage	Length [x]	Length [x]
LUMBERG AUTOMATION RKWT 4-646/10M	All	Free Hanging (In-Line)	Wire Leads	Female Sockets	Polyvinyl Chloride (PVC)	4	IP68 - Dust Tight Waterproof; NEMA 6	Gray	Round	Unshielded	Keyed	Plug Right Angle	M12	Standard	Industrial Environments
LUMBERG AUTOMATION RKWT 4-225/5M	All	Free Hanging (In-Line)	Wire Leads	Female Sockets	Polyurethane (PUR)	4	IP67 NEMA 6	Black	Round	Unshielded	Keyed	Plug Right Angle	M12	Standard	Industrial Environments
LUMBERG AUTOMATION RKWT 5-612/2M	All	Free Hanging (In-Line)	Wire Leads	Female Sockets	Polyvinyl Chloride (PVC)	5	IP67 NEMA 6	Yellow	Round	Unshielded	Keyed	Plug Right Angle	M12	Standard	Industrial Environments	2 m	6.56 ft
LUMBERG AUTOMATION RKWT 4-225/2M	All	Free Hanging (In-Line)	Wire Leads	Female Sockets	Polyurethane (PUR)	4	IP67 NEMA 6	Black	Round	Unshielded	Keyed	Plug Right Angle	M12	Standard	Industrial Environments	2 m	6.56 ft
LUMBERG AUTOMATION RKWT 5-612/10M	All	Free Hanging (In-Line)	Wire Leads	Female Sockets	Polyvinyl Chloride (PVC)	5	IP67 NEMA 6	Yellow	Round	Unshielded	Keyed	Plug Right Angle	M12	Standard	Industrial Environments
LUMBERG AUTOMATION RKWT 5-612/5M	All	Free Hanging (In-Line)	Wire Leads	Female Sockets	Polyvinyl Chloride (PVC)	5	IP67 NEMA 6	Yellow	Round	Unshielded	Keyed	Plug Right Angle	M12	Standard	Industrial Environments
LUMBERG AUTOMATION RKWT 4-633/5M	All	Free Hanging (In-Line)	Wire Leads	Female Sockets	Polyvinyl Chloride (PVC)	4	IP67 NEMA 6	Yellow	Round	Unshielded	Keyed	Plug Right Angle	M12	Standard	Industrial Environments
LUMBERG AUTOMATION RKWT 4-225/10M	All	Free Hanging (In-Line)	Wire Leads	Female Sockets	Polyurethane (PUR)	4	IP67 NEMA 6	Black	Round	Unshielded	Keyed	Plug Right Angle	M12	Standard	Industrial Environments

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 33.48
		10	$ 25.86
		25	$ 23.44
		50	$ 21.80
		100	$ 20.32
		250	$ 18.57
		500	$ 17.40
Newark	Each	1	$ 26.00
		5	$ 22.19

Description

General part information

RKWT Series

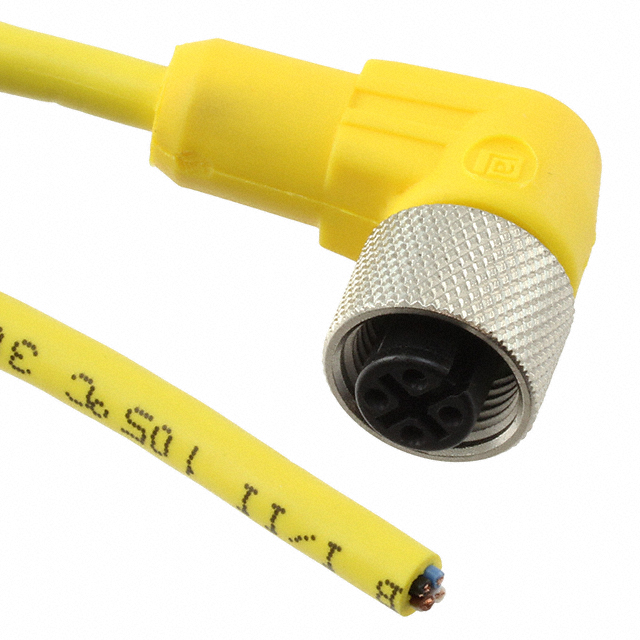

The RKWT 4-633/5M is a 22AWG Micro Actuator/Sensor Single-ended Cordset with 4-pole M12 female right-angle connector, self-locking thread and yellow PVC molded jacket.
