OD4006-12MB02A

Active

Orion Fans

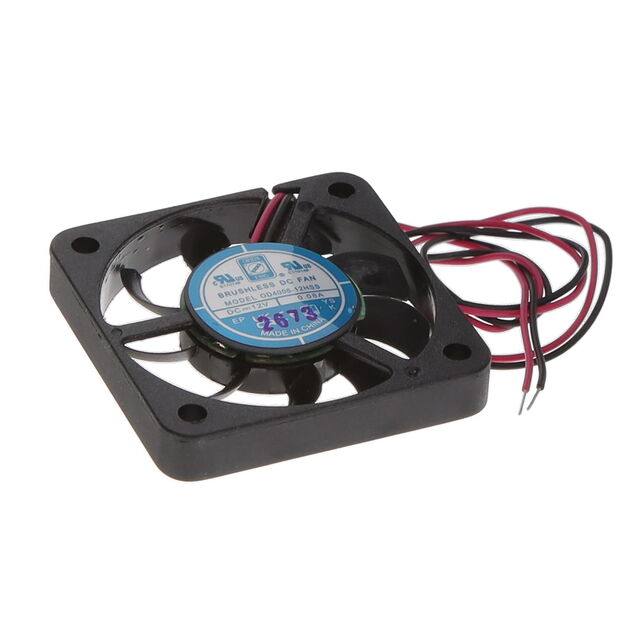

FAN AXIAL 40X6MM BALL 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

OD4006-12MB02A

Active

Orion Fans

FAN AXIAL 40X6MM BALL 12VDC WIRE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OD4006-12MB02A

Bearing Type	Ball
Fan Type	Tubeaxial
Features	Locked Rotor Sensor
Material - Blade	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Width [x]	6 mm

OD4006 Series

Part	Termination	Material - Blade	Voltage - Rated	Width [x]	Bearing Type	Material - Frame	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Features	Fan Type
Orion Fans OD4006-12MB01A	3 Wire Leads	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	12 VDC	6 mm	Ball	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	40 mm	Square	40 mm	Speed Sensor (Tach)	Tubeaxial
Orion Fans OD4006-05HSS	2 Wire Leads	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	5 V	6 mm	Sealed Sleeve	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	40 mm	Square	40 mm		Tubeaxial
Orion Fans OD4006-12MB02A	3 Wire Leads	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	12 VDC	6 mm	Ball	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	40 mm	Square	40 mm	Locked Rotor Sensor	Tubeaxial
Orion Fans OD4006-05MB	2 Wire Leads	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	5 V	6 mm	Ball	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	40 mm	Square	40 mm		Tubeaxial
Orion Fans OD4006-05LB01A	3 Wire Leads	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	5 V	6 mm	Ball	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	40 mm	Square	40 mm	Speed Sensor (Tach)	Tubeaxial
Orion Fans OD4006-12MSS01A	3 Wire Leads	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	12 VDC	6 mm	Sealed Sleeve	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	40 mm	Square	40 mm	Speed Sensor (Tach)	Tubeaxial
Orion Fans OD4006-12MB	2 Wire Leads	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	12 VDC	6 mm	Ball	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	40 mm	Square	40 mm		Tubeaxial
Orion Fans OD4006-05LSS	2 Wire Leads	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	5 V	6 mm	Sealed Sleeve	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	40 mm	Square	40 mm		Tubeaxial
Orion Fans OD4006-12HSS01A	3 Wire Leads	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	12 VDC	6 mm	Sealed Sleeve	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	40 mm	Square	40 mm	Speed Sensor (Tach)	Tubeaxial
Orion Fans OD4006-05HB	2 Wire Leads	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	5 V	6 mm	Ball	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	40 mm	Square	40 mm		Tubeaxial

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	520	$ 9.38

Description

General part information

OD4006 Series

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 3 Wire Leads

Documents

Technical documentation and resources

No documents available
