8380-4PG-522

Active

Conxall/Switchcraft

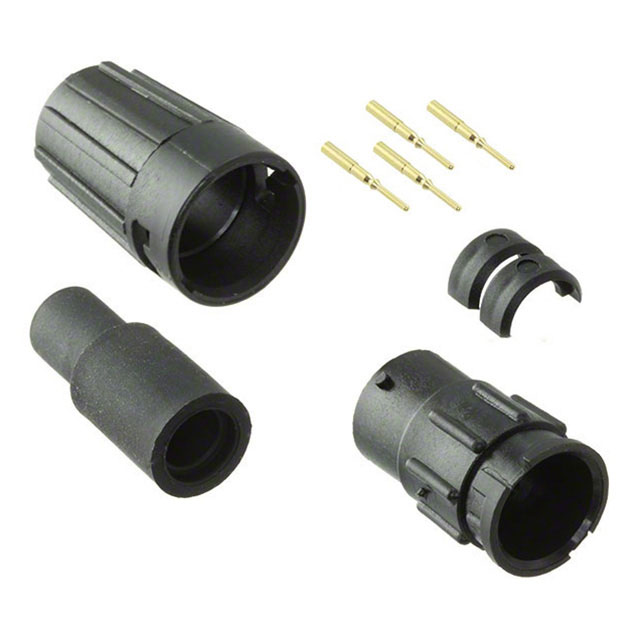

CONN RCPT MALE 4POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8380-4PG-522

Active

Conxall/Switchcraft

CONN RCPT MALE 4POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.16
		10	$ 5.54
		25	$ 5.22
		50	$ 5.09
		100	$ 4.95
		300	$ 4.71

Description

General part information

8380-4PG Series

4 Position Circular Connector Receptacle, Male Pins Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8380-4PG-522	8380-4PG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	5.84 mm
Cable Opening	-	0.13 - 0.15 in
Cable Opening	-	3.3 - 3.81 mm
Cable Opening	-	0.16 - 0.18 in
Cable Opening	-	0.18 - 0.2 in
Cable Opening	-	4.06 - 4.57 mm
Cable Opening	-	4.57 - 5.08 mm
Cable Opening [Max] [diameter]	6.35 mm	6.35 mm
Cable Opening [Max] [diameter]	0.25 in	0.23 - 0.25 in
Cable Opening [Min] [diameter]	0.22 in	0.21 - 0.22 in
Cable Opening [Min] [diameter]	5.59 mm	5.33 - 5.59 mm
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

8380-4PG Series

CONN RCPT MALE 4POS GOLD CRIMP

Part	Voltage Rating	Applications	Connector Type	Number of Positions	Features	Mounting Type	Contact Finish - Mating	Contact Material	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Ingress Protection	Backshell Material, Plating	Termination	Color	Primary Material	Current Rating (Amps)	Orientation	Fastening Type	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 8380-4PG-321	600 V	Automotive, Communication Systems, Instrumentation	Male Pins, Receptacle	4	Backshell	Free Hanging (In-Line)	Gold	Brass	5.33 mm	5.84 mm	0.21 in	0.23 in	Weathertight	Nylon, Polyamide (PA)	Crimp	Black	Plastic	Varies by Wire Gauge	Keyed	Bayonet Lock	Unshielded	-40 °C	115 °C
Conxall/Switchcraft 8380-4PG-513	600 V	Automotive, Communication Systems, Instrumentation	Male Pins, Receptacle	4	Backshell	Free Hanging (In-Line)	Gold	Brass					Weathertight	Nylon, Polyamide (PA)	Crimp	Black	Plastic	Varies by Wire Gauge	Keyed	Bayonet Lock	Unshielded	-40 °C	115 °C	0.13 in, 0.15 in	3.3 mm, 3.81 mm
Conxall/Switchcraft 8380-4PG-516	600 V	Automotive, Communication Systems, Instrumentation	Male Pins, Receptacle	4	Backshell	Free Hanging (In-Line)	Gold	Brass					Weathertight	Nylon, Polyamide (PA)	Crimp	Black	Plastic	Varies by Wire Gauge	Keyed	Bayonet Lock	Unshielded	-40 °C	115 °C			0.16 in	0.18 in	4.06 mm	4.57 mm
Conxall/Switchcraft 8380-4PG-522	600 V	Automotive, Communication Systems, Instrumentation	Male Pins, Receptacle	4	Backshell	Free Hanging (In-Line)	Gold	Brass	5.59 mm		0.22 in	0.25 in	Weathertight	Nylon, Polyamide (PA)	Crimp	Black	Plastic	Varies by Wire Gauge	Keyed	Bayonet Lock	Unshielded	-40 °C	115 °C							6.35 mm
Conxall/Switchcraft 8380-4PG-318	600 V	Automotive, Communication Systems, Instrumentation	Male Pins, Receptacle	4	Backshell	Free Hanging (In-Line)	Gold	Brass					Weathertight	Nylon, Polyamide (PA)	Crimp	Black	Plastic	Varies by Wire Gauge	Keyed	Bayonet Lock	Unshielded	-40 °C	115 °C			0.18 in	0.2 in	4.57 mm	5.08 mm
