R112554000

Active

Radiall USA, Inc.

SMC F 27000 UG1619U BHD

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC F 27000 UG1619U BHD

Technical Specifications

Parameters and characteristics for this part

Specification	R112554000

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Male Pin, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	10 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Insertion Loss	0.25 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Part	Connector Style	Voltage Rating	Mating Cycles	Frequency - Max [Max]	Impedance	Includes	Center Contact Material	Shield Termination	Body Finish	Number of Ports	Body Material	Features	Insertion Loss	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Housing Color	Contact Termination	Mounting Feature	Connector Type
Radiall USA, Inc. R112554000	SMC	335 V	500	10 GHz	50 Ohms	1 Connector 1 Lockwasher 1 Nut	Brass	Solder	Gold	1	Brass	Extended Insulation	0.25 dB	Gold	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Gold	Solder Cup	Bulkhead - Front Side Nut	Jack Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

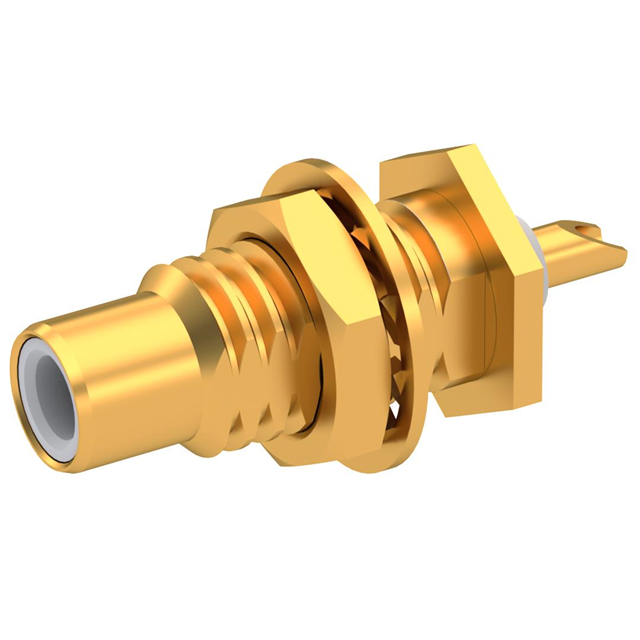

SMC Connector Jack, Male Pin 50 Ohms Panel Mount Solder Cup
