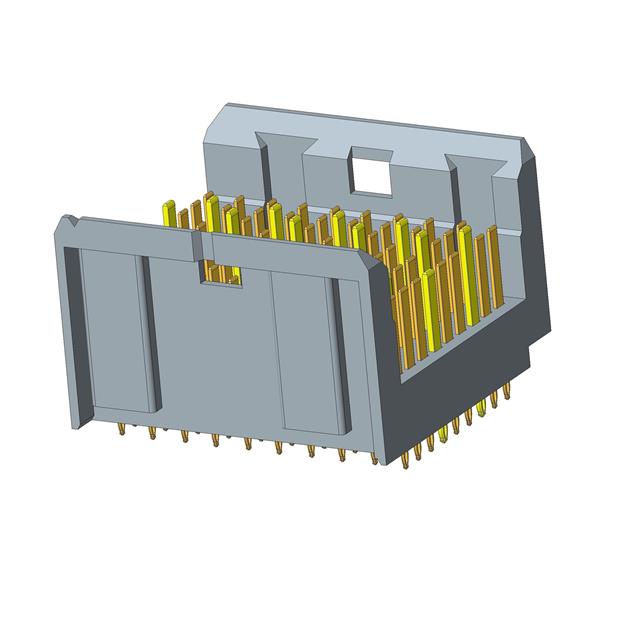

10127939-101LF

Active

Amphenol ICC (FCI)

VS2 3X10 VH ST 2S WC

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

VS2 3X10 VH ST 2S WC

Technical Specifications

Parameters and characteristics for this part

Specification	10127939-101LF

Color	Black
Connector Type	Header, Male Pins
Contact Finish	GXT™, Gold or Gold
Current Rating (Amps)	500 mA
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	10
Number of Positions	90
Number of Positions Loaded	All
Number of Rows	9
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit
Voltage Rating	30 VAC

Part	Mounting Type	Material Flammability Rating	Number of Positions	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Contact Finish	Termination	Number of Columns	Number of Positions Loaded	Current Rating (Amps)	Connector Type	Pitch [x]	Pitch [x]	Color
Amphenol ICC (FCI) 10127939-101LF	Through Hole	UL94 V-0	90	30 VAC	85 °C	-55 °C	9	Gold or Gold GXT™	Press-Fit	10	All	500 mA	Header Male Pins	0.079 in	2 mm	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

90 Connector Header, Male Pins Through Hole Black
