EBC30MMMD
ActiveSullins Connector Solutions
CONN CARDEDGE MALE 60POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
EBC30MMMD
ActiveSullins Connector Solutions
CONN CARDEDGE MALE 60POS 0.100
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EBC30MMMD |
|---|---|
| Card Thickness | 0.062 in |
| Card Thickness | 1.57 mm |
| Card Type | Fits Female Edgecards |
| Color | Blue |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Phosphor Bronze |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature | 0.125 " |
| Flange Feature | 3.18 mm |
| Gender | Male |
| Material - Insulation | Polybutylene Terephthalate (PBT) |
| Mounting Type | Through Hole |
| Number of Positions | 60 |
| Number of Positions/Bay/Row [custom] | 30 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Wire Wrap |
EBC30 Series
...
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Contact Finish | Mounting Type | Number of Rows | Contact Type | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Gender | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Material - Insulation | Number of Positions/Bay/Row [custom] | Read Out | Card Type | Card Thickness | Card Thickness | Termination | Pitch [x] | Pitch [x] | Color | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | 125 °C | -65 ░C | Phosphor Bronze | Gold | Through Hole | 2 | Cantilever | 0.125 in | 3.18 mm | Top Mount Opening Unthreaded | Female | 10 Áin | 0.25 Ám | 60 | Polybutylene Terephthalate (PBT) | 30 | Dual | Non Specified - Dual Edge | 0.062 in | 1.57 mm | Solder | 2.54 mm | 0.1 in | ||||
Sullins Connector Solutions | 125 °C | -65 ░C | Phosphor Bronze | Gold | Through Hole | 2 | Hairpin Bellows | 4-40 Flush Mount Threaded Insert Top Opening | Female | 10 Áin | 0.25 Ám | 60 | Polybutylene Terephthalate (PBT) | 30 | Dual | Non Specified - Dual Edge | 0.062 in | 1.57 mm | Solder | 2.54 mm | 0.1 in | Blue | |||||
Sullins Connector Solutions | 125 °C | -65 ░C | Phosphor Bronze | Gold | Through Hole | 2 | Full Bellows | 0.125 in | 3.18 mm | Top Mount Opening Unthreaded | Female | 10 Áin | 0.25 Ám | 60 | Polybutylene Terephthalate (PBT) | 30 | Dual | Non Specified - Dual Edge | 0.093 in | 2.36 mm | Solder | 2.54 mm | 0.1 in | Blue | |||
Sullins Connector Solutions | 125 °C | -65 ░C | Phosphor Bronze | Gold | Through Hole | 1 | Cantilever | 0.125 in | 3.18 mm | Top Mount Opening Unthreaded | Female | 10 Áin | 0.25 Ám | 30 | Polybutylene Terephthalate (PBT) | Single | Non Specified - Dual Edge | 0.062 in | 1.57 mm | Solder | 2.54 mm | 0.1 in | |||||
Sullins Connector Solutions | 125 °C | -65 ░C | Phosphor Bronze | Gold | Through Hole | 2 | Flush Mount Top Opening Unthreaded | Male | 10 Áin | 0.25 Ám | 60 | Polybutylene Terephthalate (PBT) | 30 | Dual | Fits Female Edgecards | 0.062 in | 1.57 mm | Wire Wrap | 2.54 mm | 0.1 in | Blue | 0.125 " | 3.18 mm | ||||
Sullins Connector Solutions | 125 °C | -65 ░C | Phosphor Bronze | Gold | 2 | Full Bellows | 0.125 in | 3.18 mm | Top Mount Opening Unthreaded | Female | 10 Áin | 0.25 Ám | 60 | Polybutylene Terephthalate (PBT) | 30 | Dual | Non Specified - Dual Edge | 0.031 in | 0.79 mm | Solder Eyelet(s) | 2.54 mm | 0.1 in | Blue | ||||
Sullins Connector Solutions | 125 °C | -65 ░C | Phosphor Bronze | Gold | Through Hole | 2 | Hairpin Bellows | 4-40 Flush Mount Threaded Insert Top Opening | Female | 10 Áin | 0.25 Ám | 60 | Polybutylene Terephthalate (PBT) | 30 | Dual | Non Specified - Dual Edge | 0.062 in | 1.57 mm | Wire Wrap | 2.54 mm | 0.1 in | Blue | |||||
Sullins Connector Solutions | 125 °C | -65 ░C | Phosphor Bronze | Gold | Board Edge Straddle Mount | 2 | Full Bellows | 4-40 Threaded Insert Top Mount Opening | Female | 10 Áin | 0.25 Ám | 60 | Polybutylene Terephthalate (PBT) | 30 | Dual | Non Specified - Dual Edge | 0.062 in | 1.57 mm | Solder | 2.54 mm | 0.1 in | Blue | Card Extender | ||||
Sullins Connector Solutions | 125 °C | -65 ░C | Phosphor Bronze | Gold | Through Hole | 2 | Loop Bellows | Flush Mount Top Opening Unthreaded | Female | 10 Áin | 0.25 Ám | 60 | Polybutylene Terephthalate (PBT) | 30 | Dual | Non Specified - Dual Edge | 0.062 in | 1.57 mm | Solder | 2.54 mm | 0.1 in | 0.125 " | 3.18 mm | ||||
Sullins Connector Solutions | 125 °C | -65 ░C | Phosphor Bronze | Gold | Through Hole | 2 | Full Bellows | 4-40 Threaded Insert Top Mount Opening | Female | 10 Áin | 0.25 Ám | 60 | Polybutylene Terephthalate (PBT) | 30 | Dual | Non Specified - Dual Edge | 0.093 in | 2.36 mm | Solder | 2.54 mm | 0.1 in | Blue |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.15 | |
| 10 | $ 7.34 | |||
| 30 | $ 6.91 | |||
| 40 | $ 6.74 | |||
| 80 | $ 6.56 | |||
| 230 | $ 5.85 | |||
| 440 | $ 5.49 | |||
| 950 | $ 4.86 | |||
Description
General part information
EBC30 Series

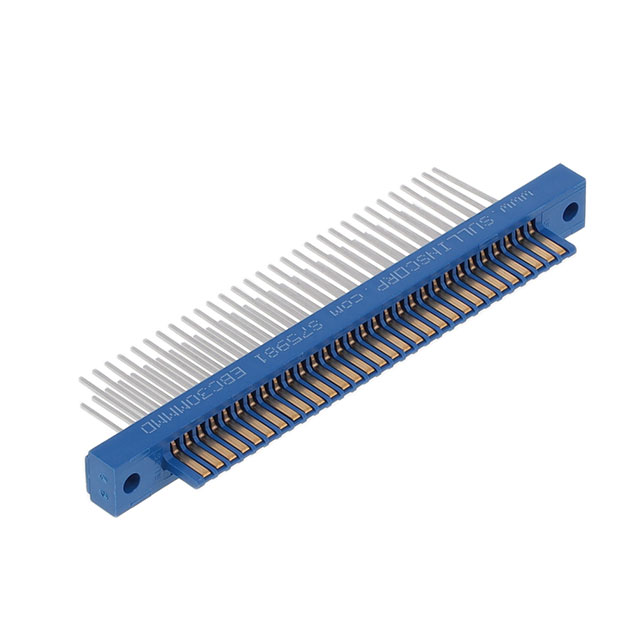

60 Position Male Connector Fits Female Edgecards Gold 0.100" (2.54mm) Blue
