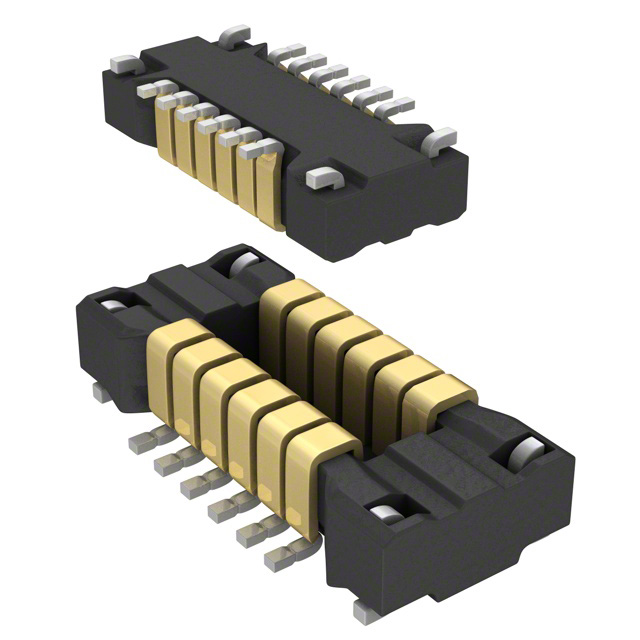

AXT612124

Obsolete

Panasonic Electric Works

CONN HDR 12POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN HDR 12POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT612124

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.84 mm
Height Above Board [z]	0.033 "
Mated Stacking Heights	1 mm
Mounting Type	Surface Mount
Number of Positions	12
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Number of Rows	Contact Finish	Height Above Board [z]	Height Above Board [z]	Number of Positions	Mounting Type	Connector Type	Features	Pitch [x]	Pitch [x]	Mated Stacking Heights
Panasonic Electric Works AXT612124	2	Gold	0.84 mm	0.033 "	12	Surface Mount	Header Center Strip Contacts	Solder Retention	0.016 in	0.4 mm	1 mm
Panasonic Electric Works AXT612124A	2	Gold	0.84 mm	0.033 "	12	Surface Mount	Header Center Strip Contacts	Solder Retention	0.016 in	0.4 mm	1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

12 Position Connector Header, Center Strip Contacts Surface Mount Gold
