ZWS75BAF-5/CO2

Active

TDK-LAMBDA

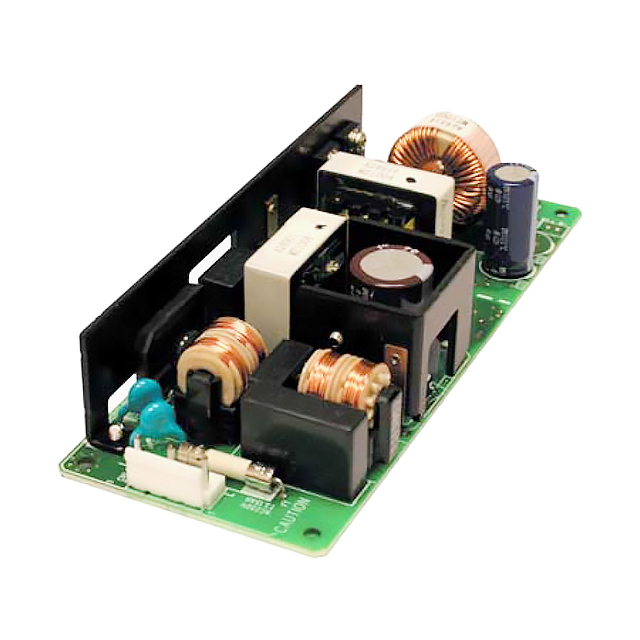

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 75 W, 5 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDeclaration of Conformity EN User Manual EN +3

ZWS75BAF-5/CO2

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 75 W, 5 V

Deep-Dive with AI

DocumentsDeclaration of Conformity EN User Manual EN +3

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 91.74
Newark	Each	1	$ 91.74
		10	$ 90.35
		25	$ 81.42
		50	$ 79.21

Description

General part information

ZWS75BAF Series

Open Frame, Conformal Coated AC DC Converters 1 Output 5V 85 ~ 265 VAC Input

Documents

Technical documentation and resources

Specification	ZWS75BAF-5/CO2	ZWS75BAF Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Current - Output 1	15 A	1.6 - 15 A
Efficiency	84 %	78 - 88 %
Features	Load Sharing, Universal Input, PFC, Adjustable Output, DC Input Capable	PFC, Adjustable Output, Universal Input, Load Sharing, DC Input Capable
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	75 W	75 W
Size / Dimension [x]	5.9 in	5.9 in
Size / Dimension [x]	150 mm	150 mm
Size / Dimension [y]	50 mm	50 mm
Size / Dimension [y]	1.97 "	1.97 "
Size / Dimension [z]	1.3 "	1.3 "
Size / Dimension [z]	33 mm	33 mm
Type	Open Frame, Conformal Coated	Enclosed, Open Frame, Conformal Coated
Voltage - Input [Max]	265 VAC	265 VAC
Voltage - Input [Min]	85 VAC	85 VAC
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	5 V	3.3 - 48 V
