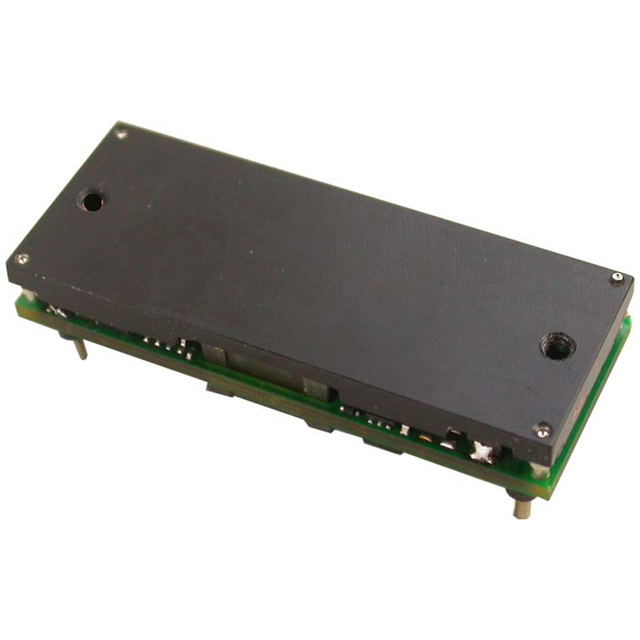

0RCY-60U12L

Active

Bel Power Solutions

DC DC CONVERTER 12V 84W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 12V 84W

Technical Specifications

Parameters and characteristics for this part

Specification	0RCY-60U12L

Applications	ITE (Commercial)
Current - Output (Max)	7 A
Efficiency	92 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-DIP Module, 1/8 Brick
Power (Watts)	84 W
Size / Dimension [x]	2.3 in
Size / Dimension [x]	58.4 mm
Size / Dimension [y]	0.9 "
Size / Dimension [y]	22.8 mm
Size / Dimension [z]	12.7 mm
Size / Dimension [z]	0.5 in
Supplier Device Package	Eighth Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	12 V

DC DC CONVERTER 12V 84W

Part	Mounting Type	Package / Case	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Efficiency	Number of Outputs	Current - Output (Max)	Supplier Device Package	Features	Voltage - Output 1	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Power (Watts)	Type
Bel Power Solutions 0RCY-60U12L	Through Hole	1/8 Brick, 8-DIP Module	ITE (Commercial)	85 °C	-40 °C	1.5 kV	92 %	1	7 A	Eighth Brick	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	12 V	75 V	18 V	0.9 "	2.3 in	12.7 mm	58.4 mm	0.5 in	22.8 mm	84 W	Isolated Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 12V 7A 18V - 75V Input
