ActiveMill-Max Manufacturing Corp.

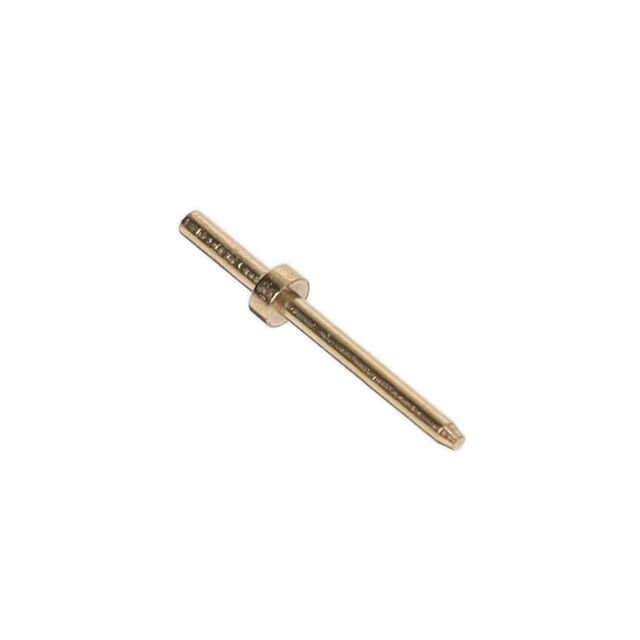

PIN RECEP GOLD SLDER MNT IN .023
Deep-Dive with AI
Search across all available documentation for this part.
3121-2-00-34-00-00-08-0
ActiveMill-Max Manufacturing Corp.
PIN RECEP GOLD SLDER MNT IN .023
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3121-2-00-34-00-00-08-0 |
|---|---|
| Board Thickness | 1.02 mm |
| Board Thickness | 0.04 in |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.02 mm |
| Flange Diameter [diameter] | 0.04 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 3.99 mm |
| Length - Above Flange [x] | 0.157 in |
| Length - Overall [x] | 0.248 in |
| Length - Overall [x] | 6.3 mm |
| Mounting Hole Diameter [diameter] | 0.58 mm |
| Mounting Hole Diameter [diameter] | 0.023 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.017 in |
| Pin Size - Above Flange [diameter] | 0.43 mm |
| Pin Size - Below Flange [diameter] | 0.019 in |
| Pin Size - Below Flange [diameter] | 0.48 mm |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.94 | |
| 10 | $ 0.79 | |||
| 25 | $ 0.76 | |||
| 50 | $ 0.74 | |||
| 100 | $ 0.71 | |||
| 250 | $ 0.65 | |||
| 500 | $ 0.58 | |||
| 1000 | $ 0.52 | |||
| 3000 | $ 0.47 | |||
Description
General part information
3121-2 Series
PC Pin Terminal Connector Through Hole Gold 0.017" (0.43mm) Dia
