3682S-1-501L
ActiveBourns Inc.
VALUE DISPL POT 500OHM 2W PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3682S-1-501L
ActiveBourns Inc.
VALUE DISPL POT 500OHM 2W PNL MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3682S-1-501L |
|---|---|
| Adjustment Type | Push Button |
| Number of Characters | 2 |
| Power (Watts) | 2 W |
| Resistance | 500 Ohms |
| Size / Dimension [x] | 1.05 in |
| Size / Dimension [x] | 26.67 mm |
| Size / Dimension [y] | 0.93 in |
| Size / Dimension [y] | 23.62 mm |
| Size / Dimension [z] | 26.67 mm |
| Size / Dimension [z] | 1.05 " |
| Termination Style | Solder Lug |
| Tolerance | 3 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 48.05 | |
| 10 | $ 42.71 | |||
| 25 | $ 35.23 | |||
| 40 | $ 33.10 | |||
| 80 | $ 32.03 | |||
| 230 | $ 29.90 | |||
Description
General part information

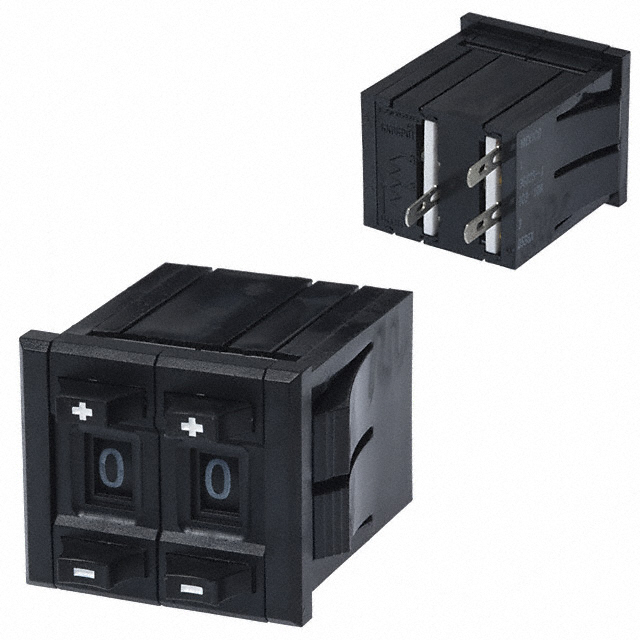

3682S Series
500 Ohms 2 W 2.0 Character Panel Mount Value Display Potentiometer
