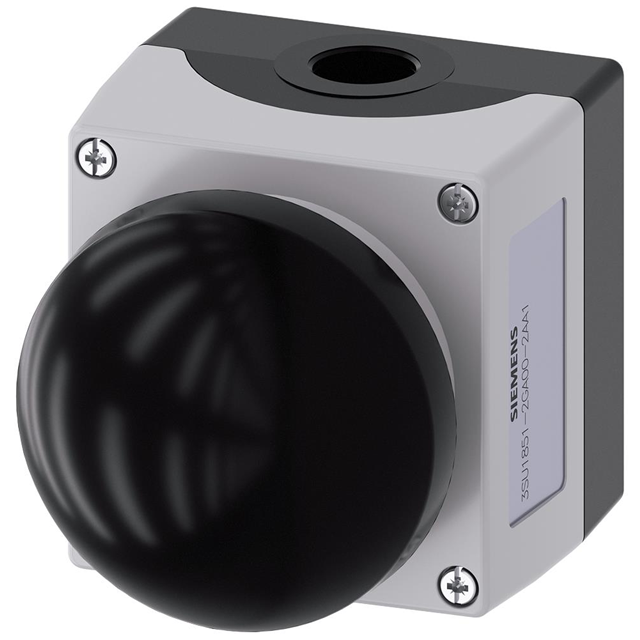

3SU18512GA002AA1

Active

Siemens

ENCLOSURE METAL. 1 COMMAND POINT

Search across all available documentation for this part.

Active

Siemens

ENCLOSURE METAL. 1 COMMAND POINT

Technical Specifications

Parameters and characteristics for this part

Specification	3SU18512GA002AA1

Actuator Type	Round, Button
Circuit	SPST-NO
Current Rating (Amps)	10 A
Ingress Protection	IP69K, IP67, IP66
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	Off-Mom
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	500 V
Voltage Rating - DC	500 V

Part	Accessory Type	For Use With/Related Products	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Type	Mounting Type	Voltage Rating - AC	Ingress Protection	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Actuator Type	Voltage Rating - DC	Termination Style	Switch Function	Color - Actuator/Cap
Siemens 3SU18510NA002AC2	Enclosure	3SU1 Series
Siemens 3SU18510AC002AB1			SPST-NC	70 °C	-25 °C	Standard	Panel Mount Front	500 V	IP66 IP67 IP69K	22.3 mm	10 A	Button Round	500 V	Screw Terminal
Siemens 3SU18512GA002AA1			SPST-NO	70 °C	-25 °C	Standard	Panel Mount Front	500 V	IP66 IP67 IP69K	22.3 mm	10 A	Button Round	500 V	Screw Terminal	Off-Mom
Siemens 3SU18510AA000AF2	Enclosure	3SU1 Series
Siemens 3SU18510AD002AB1			SPST-NO	70 °C	-25 °C	Standard	Panel Mount Front	500 V	IP66 IP67 IP69K	22.3 mm	10 A	Button Round	500 V	Screw Terminal
Siemens 3SU18510NB104GC2	Enclosure	3SU1 Series
Siemens 3SU18512NG002AA2			DPST-NO/NC	70 °C	-25 °C	Standard	Panel Mount Front	500 V	IP66 IP67 IP69K	22.3 mm	10 A	Button Round	500 V	Screw Terminal		Red
Siemens 3SU18510AA000AB2	Enclosure	3SU1 Series
Siemens 3SU18510NB002AA2	Enclosure	3SU1 Series
Siemens 3SU18510NB104GB2	Enclosure	3SU1 Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 277.52

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front
