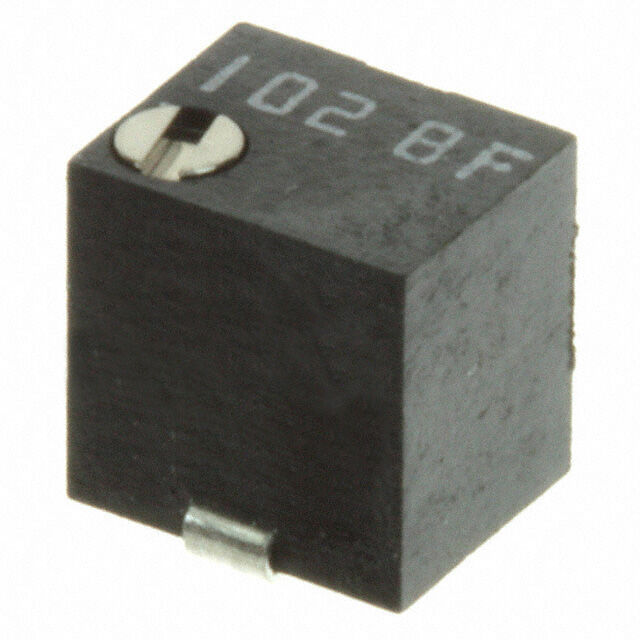

Specification	SM-31TW201

Adjustment Type	Top Adjustment
Mounting Type	Surface Mount
Number of Turns	5 turns
Power (Watts)	0.125 W
Power (Watts) Options	1/8W
Resistance	200 Ohm
Resistive Material	Cermet
Size / Dimension Length	0.154 in
Size / Dimension Shape	Rectangular
Size / Dimension Width	0.126 in
Temperature Coefficient	100 ppm/°C
Termination Style	J Lead
Tolerance	20 %

SM-3 Series

Part	Tolerance	Temperature Coefficient	Size / Dimension Width	Size / Dimension Shape	Size / Dimension Length	Resistive Material	Adjustment Type	Power (Watts)	Power (Watts) Options	Resistance	Number of Turns	Termination Style	Mounting Type
Nidec Components Corporation SM-31TW201	20 %	100 ppm/°C	0.126 in	Rectangular	0.154 in	Cermet	Top Adjustment	0.125 W	1/8W	200 Ohm	5 turns	J Lead	Surface Mount
Nidec Components Corporation SM-3B105	20 %	100 ppm/°C	0.154 in	Square	0.154 in	Cermet	Side Adjustment	0.125 W	1/8W	1 MOhm	11 turns	Gull Wing	Surface Mount
Nidec Components Corporation SM-31TB503	20 %	100 ppm/°C	0.154 in	Rectangular	0.173 in	Cermet	Side Adjustment	0.125 W	1/8W	50 kOhm	5 turns	Gull Wing	Surface Mount
Nidec Components Corporation SM-3TA101	20 %	100 ppm/°C	0.154 in	Square	0.154 in	Cermet	Side Adjustment	0.125 W	1/8W	100 Ohms	11 turns	J Lead	Surface Mount
Nidec Components Corporation SM-31TA105	20 %	100 ppm/°C	0.154 in	Rectangular	0.173 in	Cermet	Side Adjustment	0.125 W	1/8W	1 MOhm	5 turns	J Lead	Surface Mount
Nidec Components Corporation SM-31TW501	20 %	100 ppm/°C	0.126 in	Rectangular	0.154 in	Cermet	Top Adjustment	0.125 W	1/8W	500 Ohm	5 turns	J Lead	Surface Mount
Nidec Components Corporation SM-31TW204	20 %	100 ppm/°C	0.126 in	Rectangular	0.154 in	Cermet	Top Adjustment	0.125 W	1/8W	200 kOhm	5 turns	J Lead	Surface Mount
Nidec Components Corporation SM-3B500	20 %	100 ppm/°C	0.154 in	Square	0.154 in	Cermet	Side Adjustment	0.125 W	1/8W	50 Ohms	11 turns	Gull Wing	Surface Mount
Nidec Components Corporation SM-3B204	20 %	100 ppm/°C	0.154 in	Square	0.154 in	Cermet	Side Adjustment	0.125 W	1/8W	200 kOhm	11 turns	Gull Wing	Surface Mount
Nidec Components Corporation SM-31A101	20 %	100 ppm/°C	0.154 in	Rectangular	0.173 in	Cermet	Side Adjustment	0.125 W	1/8W	100 Ohms	5 turns	J Lead	Surface Mount
