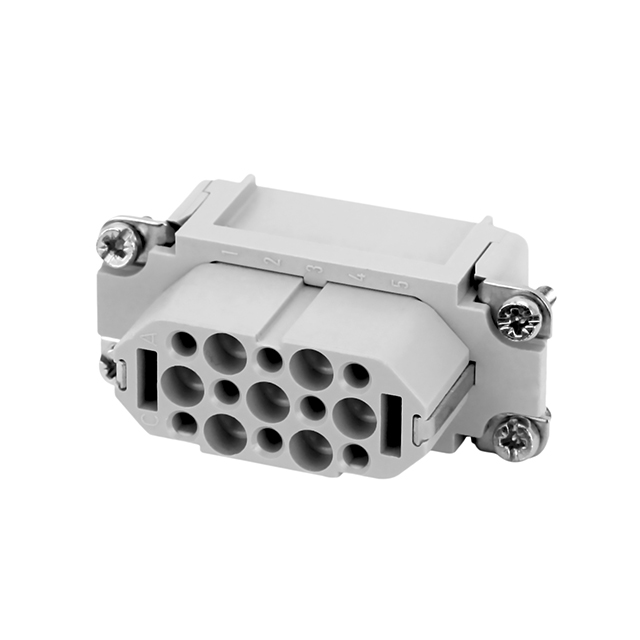

C14610B0150002
ActiveAmphenol Tuchel Industrial
INSERT FEMALE 15POS+1GND CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C14610B0150002
ActiveAmphenol Tuchel Industrial
INSERT FEMALE 15POS+1GND CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C14610B0150002 |
|---|---|
| Color | Gray |
| Connector Type | Insert without Contacts |
| Contact Type | C146 D, C 16-3, M, heavy|mate® |
| Current Rating (Amps) | 15 A |
| Gender | Female |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 15+Ground |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | A10 |
| Termination Style | Crimp |
| Voltage Rating | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.18 | |
| 10 | $ 14.34 | |||
| 30 | $ 13.79 | |||
| 50 | $ 13.23 | |||
| 100 | $ 12.50 | |||
| 250 | $ 11.40 | |||
| 500 | $ 10.66 | |||
| 1000 | $ 9.78 | |||
Description
General part information
C14610B015 Series
Female Insert without Contacts Gray 15+Ground Position Crimp
