Technical Specifications
Parameters and characteristics for this part
| Specification | LR1F300R |
|---|---|
| Composition | Metal Film |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 600 mW |
| Resistance | 300 Ohms |
| Size / Dimension [diameter] | 2.3 mm |
| Size / Dimension [diameter] | 0.091 " |
| Size / Dimension [x] | 6.2 mm |
| Size / Dimension [x] | 0.244 " |
| Supplier Device Package | Axial |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.04 | |||
| 50 | $ 0.03 | |||
| 100 | $ 0.03 | |||
| 500 | $ 0.02 | |||
| 1000 | $ 0.02 | |||
| Tape & Box (TB) | 4000 | $ 0.02 | ||
| 8000 | $ 0.01 | |||
Description
General part information
LR1F Series

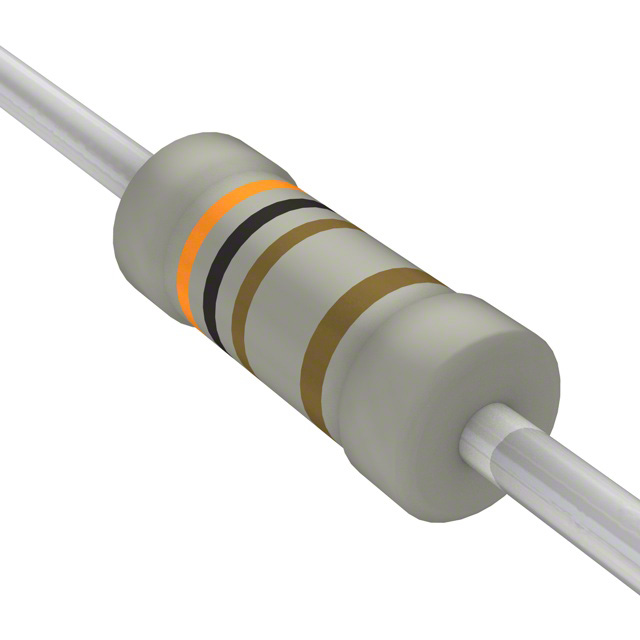

300 Ohms ±1% 0.6W Through Hole Resistor Axial Metal Film
