794619-6

Obsolete

TE Connectivity AMP Connectors

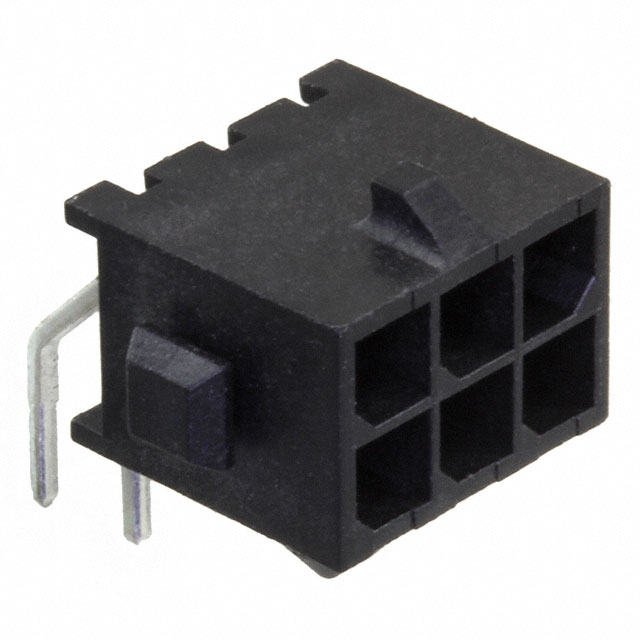

CONN HEADER R/A 6POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

794619-6

Obsolete

TE Connectivity AMP Connectors

CONN HEADER R/A 6POS 3MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

794619 Series

Connector Header Through Hole, Right Angle 6 position 0.118" (3.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	794619-6	794619 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold, Gold or Gold-Palladium
Contact Finish - Post	Tin-Lead	Tin-Lead, Tin
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 µm
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	Black	Black
Insulation Height	7.37 mm	7.37 mm
Insulation Height	0.29 in	0.29 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	6	2 - 24
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.118 in	0.118 in
Pitch - Mating	3 mm	3 mm
Row Spacing - Mating	3 mm	3 mm
Row Spacing - Mating	0.118 in	0.118 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VDC	250 VDC

794619 Series

CONN HEADER R/A 8POS 3MM

Part	Current Rating (Amps)	Style	Number of Positions Loaded	Material Flammability Rating	Contact Type	Fastening Type	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Insulation Height	Insulation Height	Number of Rows	Mounting Type	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Voltage Rating	Shrouding	Termination	Insulation Material	Contact Finish - Post	Applications	Number of Positions	Pitch - Mating	Pitch - Mating	Number of Positions
TE Connectivity AMP Connectors 794619-8	Varies by Wire Gauge	Board to Cable/Wire	All	UL94 V-0	Male Pin	Locking Ramp	Gold	15 µin	0.38 µm	Black	Header	-40 °C	105 ░C	3 mm	0.118 in	Square	7.37 mm	0.29 in	2	Through Hole, Right Angle	Brass	2.54 µm	100 µin	250 VDC	Shrouded - 4 Wall	Solder	Nylon, Polyamide (PA)	Tin-Lead	General Purpose	8	0.118 in	3 mm
TE Connectivity AMP Connectors 4-794619-4	Varies by Wire Gauge	Board to Cable/Wire	All	UL94 V-0	Male Pin	Locking Ramp	Gold	15 µin	0.38 µm	Black	Header	-40 °C	105 ░C	3 mm	0.118 in	Square	7.37 mm	0.29 in	2	Through Hole, Right Angle	Brass	2.54 µm	100 µin	250 VDC	Shrouded - 4 Wall	Solder	Nylon, Polyamide (PA)	Tin	General Purpose	14	0.118 in	3 mm
TE Connectivity AMP Connectors 4-794619-8	Varies by Wire Gauge	Board to Cable/Wire	All	UL94 V-0	Male Pin	Locking Ramp	Gold	15 µin	0.38 µm	Black	Header	-40 °C	105 ░C	3 mm	0.118 in	Square	7.37 mm	0.29 in	2	Through Hole, Right Angle	Brass	2.54 µm	100 µin	250 VDC	Shrouded - 4 Wall	Solder	Nylon, Polyamide (PA)	Tin	General Purpose	18	0.118 in	3 mm
TE Connectivity AMP Connectors 3-794619-4	Varies by Wire Gauge	Board to Cable/Wire	All	UL94 V-0	Male Pin	Locking Ramp	Gold	15 µin	0.38 µm	Black	Header	-40 °C	105 ░C	3 mm	0.118 in	Square	7.37 mm	0.29 in	2	Through Hole, Right Angle	Brass	2.54 µm	100 µin	250 VDC	Shrouded - 4 Wall	Solder	Nylon, Polyamide (PA)	Tin	General Purpose	4	0.118 in	3 mm
TE Connectivity AMP Connectors 794619-6	Varies by Wire Gauge	Board to Cable/Wire	All	UL94 V-0	Male Pin	Locking Ramp	Gold	15 µin	0.38 µm	Black	Header	-40 °C	105 ░C	3 mm	0.118 in	Square	7.37 mm	0.29 in	2	Through Hole, Right Angle	Brass	2.54 µm	100 µin	250 VDC	Shrouded - 4 Wall	Solder	Nylon, Polyamide (PA)	Tin-Lead	General Purpose	6	0.118 in	3 mm
TE Connectivity AMP Connectors 1-794619-0	Varies by Wire Gauge	Board to Cable/Wire	All	UL94 V-0	Male Pin	Locking Ramp	Gold	15 µin	0.38 µm	Black	Header	-40 °C	105 ░C	3 mm	0.118 in	Square	7.37 mm	0.29 in	2	Through Hole, Right Angle	Brass	2.54 µm	100 µin	250 VDC	Shrouded - 4 Wall	Solder	Nylon, Polyamide (PA)	Tin-Lead	General Purpose	10	0.118 in	3 mm
TE Connectivity AMP Connectors 2-794619-4	Varies by Wire Gauge	Board to Cable/Wire	All	UL94 V-0	Male Pin	Locking Ramp	Gold, Gold or Gold-Palladium	15 µin	0.38 µm	Black	Header	-40 °C	105 ░C	3 mm	0.118 in	Square	7.37 mm	0.29 in	2	Through Hole, Right Angle	Brass	2.54 µm	100 µin	250 VDC	Shrouded - 4 Wall	Solder	Nylon, Polyamide (PA)	Tin-Lead	General Purpose	24	0.118 in	3 mm
TE Connectivity AMP Connectors 4-794619-6	Varies by Wire Gauge	Board to Cable/Wire	All	UL94 V-0	Male Pin	Locking Ramp	Gold	15 µin	0.38 µm	Black	Header	-40 °C	105 ░C	3 mm	0.118 in	Square	7.37 mm	0.29 in	2	Through Hole, Right Angle	Brass	2.54 µm	100 µin	250 VDC	Shrouded - 4 Wall	Solder	Nylon, Polyamide (PA)	Tin	General Purpose		0.118 in	3 mm	16
TE Connectivity AMP Connectors 794619-2	Varies by Wire Gauge	Board to Cable/Wire	All	UL94 V-0	Male Pin	Locking Ramp	Gold	15 µin	0.38 µm	Black	Header	-40 °C	105 ░C	3 mm	0.118 in	Square	7.37 mm	0.29 in	2	Through Hole, Right Angle	Brass	2.54 µm	100 µin	250 VDC	Shrouded - 4 Wall	Solder	Nylon, Polyamide (PA)	Tin-Lead	General Purpose	2
TE Connectivity AMP Connectors 2-794619-0	Varies by Wire Gauge	Board to Cable/Wire	All	UL94 V-0	Male Pin	Locking Ramp	Gold	15 µin	0.38 µm	Black	Header	-40 °C	105 ░C	3 mm	0.118 in	Square	7.37 mm	0.29 in	2	Through Hole, Right Angle	Brass	2.54 µm	100 µin	250 VDC	Shrouded - 4 Wall	Solder	Nylon, Polyamide (PA)	Tin-Lead	General Purpose	20	0.118 in	3 mm
