055650 Series

Part	Connector Type	Features	Number of Positions	Number of Rows	Mounting Type	Pitch	Contact Finish	Mated Stacking Height	Height Above Board	Contact Finish Thickness

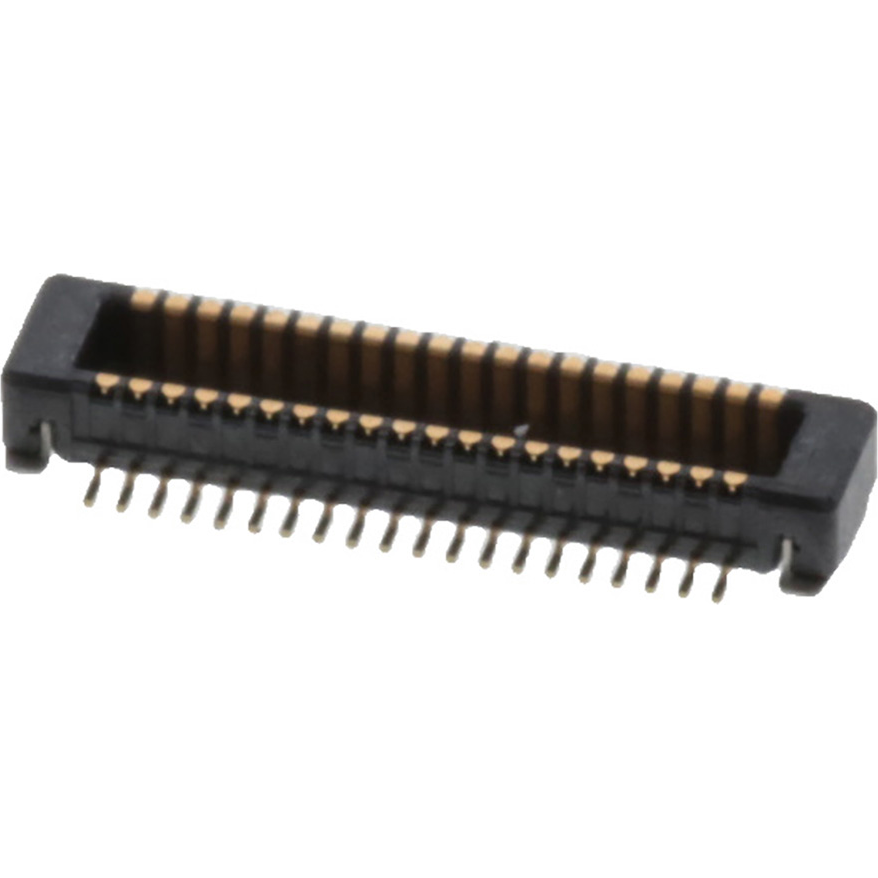

Molex 0556500488	Outer Shroud Contacts Plug	Solder Retention	40	2	Surface Mount	0.02 in	Gold	2 mm	0.063 in	10 Ąin
Molex 0556500388	Outer Shroud Contacts Plug	Solder Retention	30	2	Surface Mount	0.02 in	Gold	2 mm	0.063 in	10 Ąin
Molex 0556500288	Outer Shroud Contacts Plug	Solder Retention	20	2	Surface Mount	0.02 in	Gold	1.5 mm 2 mm	0.063 in	10 Ąin
Molex 0556504078	Outer Shroud Contacts Plug	Solder Retention	40	2	Surface Mount	0.02 in	Gold	2 mm	0.063 in	10 Ąin

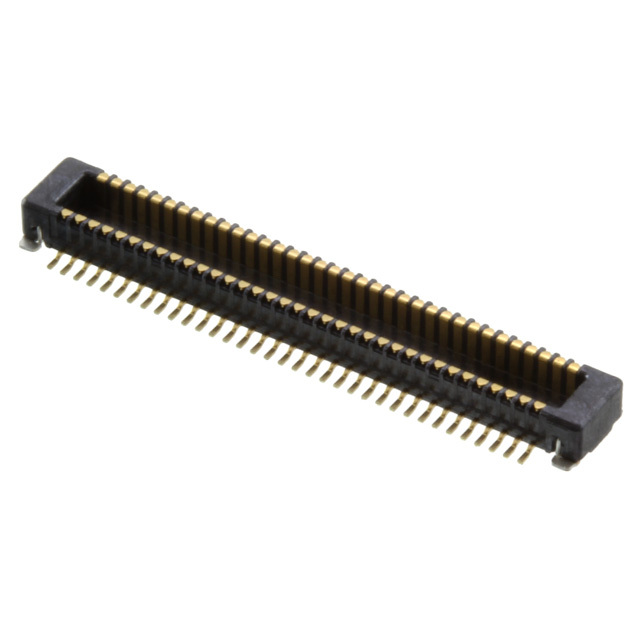

Molex 0556500788	Outer Shroud Contacts Plug	Solder Retention	70	2	Surface Mount	0.02 in	Gold	2 mm	0.063 in	10 Ąin
Molex 0556500588	Outer Shroud Contacts Plug	Solder Retention	50	2	Surface Mount	0.02 in	Gold	2 mm	0.063 in	10 Ąin
Molex 0556500688	Outer Shroud Contacts Plug	Solder Retention	60	2	Surface Mount	0.02 in	Gold	2 mm	0.063 in	10 Ąin
Molex 0556503078
