Technical Specifications
Parameters and characteristics for this part
| Specification | 6001UE 8771000 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Low Smoke Poly-Vinyl Chloride (LSPVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 19 |
| Conductor Strand [custom] | 25 |
| Features | Rip Cord |
| Jacket (Insulation) Diameter [diameter] | 0.273 in |
| Jacket (Insulation) Diameter [diameter] | 6.93 mm |
| Jacket (Insulation) Material | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum |
| Jacket (Insulation) Thickness | 0.015 in |
| Jacket (Insulation) Thickness | 0.381 mm |
| Jacket Color | Natural |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 3 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | 0 °C |
| Ratings | UL Style CL2P |
| Usage | Sound, Security |
| Voltage | 150 V |
| Wire Gauge | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 2.00 | |
Description
General part information
6001UE Series

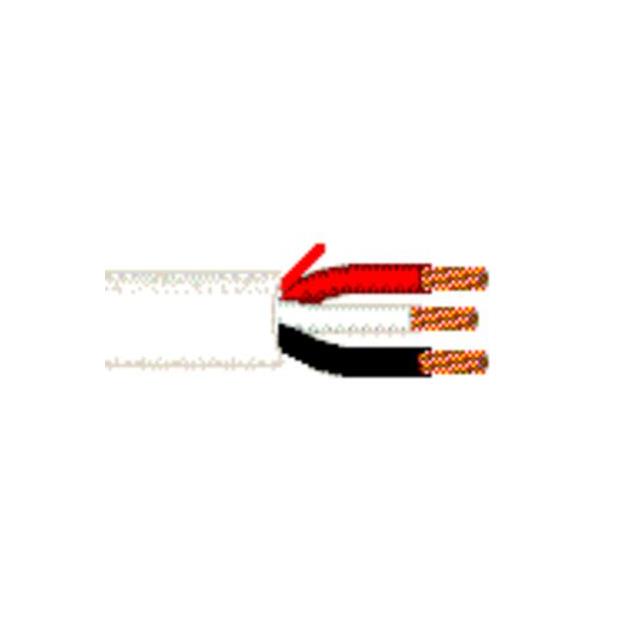

3 Conductor Multi-Conductor Cable Natural 12 AWG 1000.0' (304.8m)
