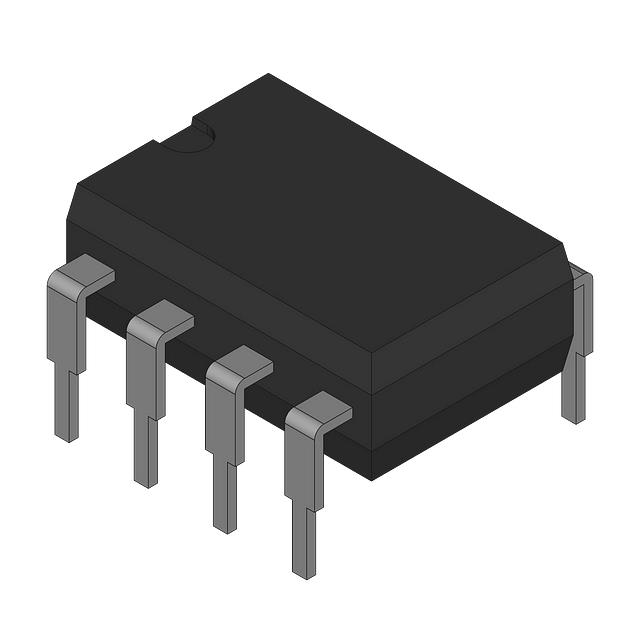

ICE3AR10080JZTXKLA1
ActiveInfineon Technologies
1.1A, 113KHZ SWITCHING FREQ-MAX
Deep-Dive with AI
Search across all available documentation for this part.
ICE3AR10080JZTXKLA1
ActiveInfineon Technologies
1.1A, 113KHZ SWITCHING FREQ-MAX
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ICE3AR10080JZTXKLA1 |
|---|---|
| Control Features | Soft Start |
| Duty Cycle | 75 % |
| Fault Protection | Over Load, Current Limiting, UVLO, Over Temperature, Open Loop, Over Voltage |
| Frequency - Switching | 100 kHz |
| Internal Switch(s) | True |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -20 °C |
| Output Isolation | Isolated |
| Package / Case | 7.62 mm |
| Package / Case | 0.3 in, 7 Leads |
| Package / Case | 8-DIP |
| Power (Watts) | 22 W |
| Supplier Device Package | PG-DIP-7-4 |
| Topology | Flyback |
| Voltage - Breakdown | 800 V |
| Voltage - Start Up | 17 V |
| Voltage - Supply (Vcc/Vdd) [Max] | 27 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 10.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 353 | $ 0.85 | |
Description
General part information
ICE3AR10080 Series
Converter Offline Flyback Topology 100kHz PG-DIP-7-4
