T4040014031-000
ActiveTE Connectivity AMP Connectors

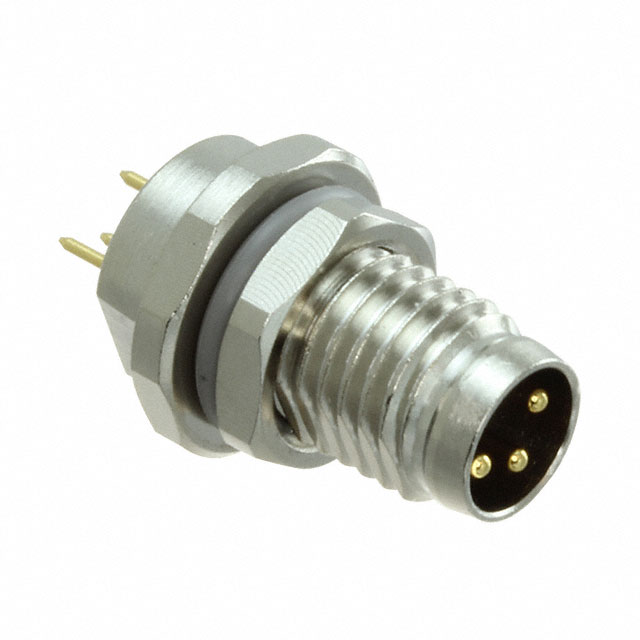

CONN PLUG MALE 3POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
T4040014031-000
ActiveTE Connectivity AMP Connectors
CONN PLUG MALE 3POS GOLD SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4040014031-000 | T40400 Series |
|---|---|---|
| Applications | Telecommunications, Automation Control, Industrial | Telecommunications, Automation Control, Industrial |
| Color | Silver | Silver |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 3 µin | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm | 0.076 µm |
| Current Rating (Amps) | 3 A | 3 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Mounting Feature | Bulkhead | Bulkhead |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Number of Positions | - | 4 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | A | A |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Copper Alloy | Copper Alloy |
| Shell Size - Insert | M8-3 | M8-3, M8-4 |
| Shielding | - | Shielded |
| Termination | Solder | Solder |
| Voltage Rating | 60 VDC | 30 - 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.01 | |
| 10 | $ 5.27 | |||
| 25 | $ 5.13 | |||
| 50 | $ 5.02 | |||
| 100 | $ 4.71 | |||
| 250 | $ 4.69 | |||
| 500 | $ 4.38 | |||
| 1000 | $ 3.92 | |||
| 2500 | $ 3.64 | |||
T40400 Series
CONN PLUG MALE 3POS GOLD SOLDER
| Part | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Primary Material | Connector Type | Ingress Protection | Mounting Feature | Shell Finish | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Color | Shell Size - Insert | Applications | Shell Material | Mounting Type | Contact Finish - Mating | Voltage Rating | Orientation | Shielding | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4040014031-000 | 3 A | 3 µin | 0.076 µm | Metal | Male Pins, Plug | IP67 - Dust Tight, Waterproof | Bulkhead | Nickel | Solder | 85 °C | -40 °C | Silver | M8-3 | Automation Control, Industrial, Telecommunications | Copper Alloy | Panel Mount, Through Hole | Gold | 60 VDC | A | ||
TE Connectivity AMP Connectors T4040034031-000 | 3 A | 3 µin | 0.076 µm | Metal | Male Pins, Plug | IP67 - Dust Tight, Waterproof | Bulkhead | Nickel | Solder | 85 °C | -40 °C | Silver | M8-3 | Automation Control, Industrial, Telecommunications | Copper Alloy | Panel Mount, Through Hole | Gold | 60 VDC | A | Shielded | |
TE Connectivity AMP Connectors T4040034041-000 | 3 A | 3 µin | 0.076 µm | Metal | Male Pins, Plug | IP67 - Dust Tight, Waterproof | Bulkhead | Nickel | Solder | 85 °C | -40 °C | Silver | M8-4 | Automation Control, Industrial, Telecommunications | Copper Alloy | Panel Mount, Through Hole | Gold | 30 VDC | A | Shielded | 4 |
Description
General part information
T40400 Series
3 Position Circular Connector Plug, Male Pins Solder
