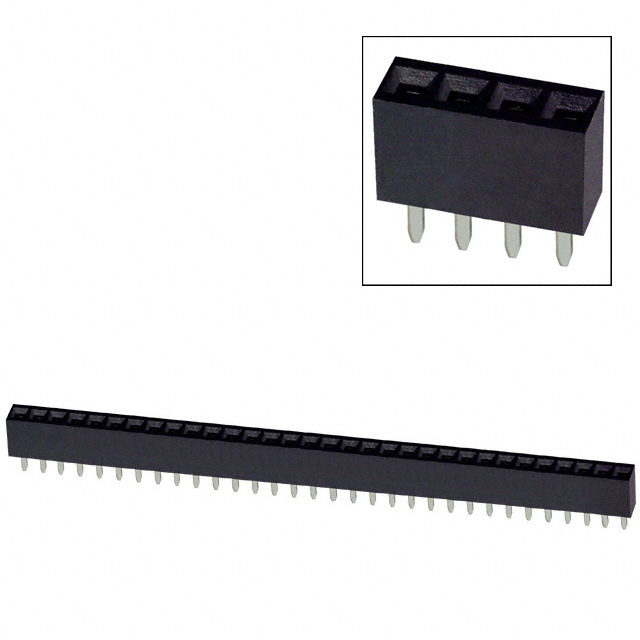

PPTC321LFBN-RC

Active

Sullins Connector Solutions

CONN HDR 32POS 0.1 TIN PCB

Search across all available documentation for this part.

Active

Sullins Connector Solutions

CONN HDR 32POS 0.1 TIN PCB

Technical Specifications

Parameters and characteristics for this part

Specification	PPTC321LFBN-RC

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Voltage Rating	250 VDC

Part	Termination	Current Rating (Amps)	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Type	Mounting Type	Insulation Color	Pitch - Mating	Pitch - Mating	Number of Rows	Fastening Type	Contact Shape	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post [x]	Contact Finish - Post	Number of Positions Loaded	Material Flammability Rating	Insulation Material	Voltage Rating	Contact Length - Post
Sullins Connector Solutions PPTC321LFBN-RC	Solder	3 A	Phosphor Bronze	-40 °C	105 ░C	Header	Female Socket	Through Hole	Black	0.1 in	2.54 mm	1	Push-Pull	Square	0.335 "	8.51 mm	3.2 mm	0.126 in	Tin	All	UL94 V-0	Polyester	250 VDC
Sullins Connector Solutions PPTC321LGBN-RC	Solder	3 A	Phosphor Bronze	-40 °C	105 ░C	Header	Female Socket	Through Hole Right Angle	Black	0.1 in	2.54 mm	1	Push-Pull	Square	0.1 in	2.54 mm	3.15 mm		Tin	All	UL94 V-0	Polyester	250 VDC	0.124 "
Sullins Connector Solutions PPTC321LGBN	Solder	3 A	Phosphor Bronze	-40 °C	105 ░C	Header	Female Socket	Through Hole Right Angle	Black	0.1 in	2.54 mm	1	Push-Pull	Square	0.1 in	2.54 mm	3.15 mm		Tin	All	UL94 V-0	Polyester	250 VDC	0.124 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1000	$ 1.02

General part information

32 Position Header Connector 0.100" (2.54mm) Through Hole Tin
