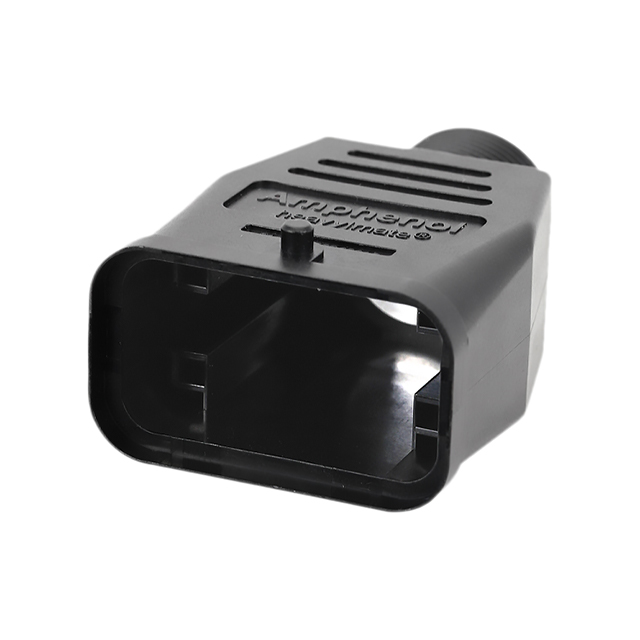

C146 10R008 606 12

Active

Amphenol Tuchel Industrial

CONN HOOD TOP ENTRY M25

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN HOOD TOP ENTRY M25

Technical Specifications

Parameters and characteristics for this part

Specification	C146 10R008 606 12

Connector Type	Hood
Housing Color	Black
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	1.89 in
Size / Dimension [x]	48 mm
Size / Dimension [y]	1.378 "
Size / Dimension [y]	35 mm
Size / Dimension [z]	2.677 "
Size / Dimension [z]	68 mm
Style	Top Entry
Thread Size	M25

Part	Style	Thread Size	Connector Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Housing Color	Lock Location
Amphenol Tuchel Industrial C146 10R008 606 12	Top Entry	M25	Hood	1.378 "	1.89 in	2.677 "	48 mm	68 mm	35 mm	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Black	Locking Clip (2) on Base Bottom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 10.22

General part information

Hood Connector Top Entry M25 IP65 - Dust Tight, Water Resistant
