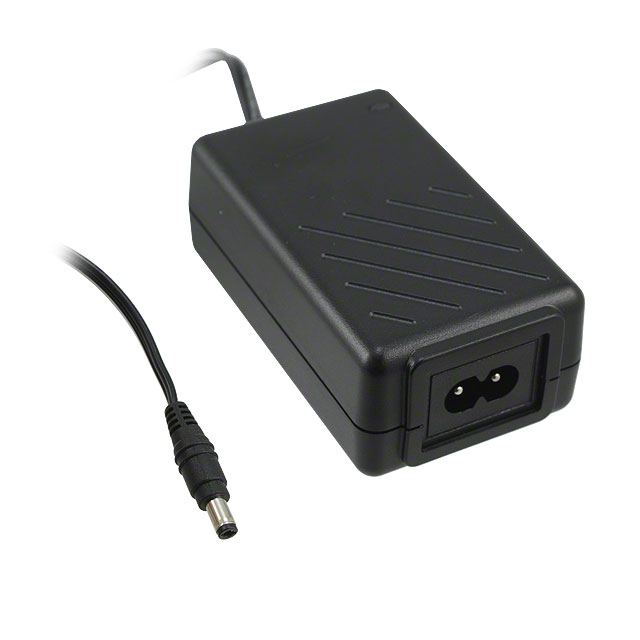

MWA020009B-10A

Active

Inventus Power

AC/DC DESKTOP ADAPTER 9V 20W

Search across all available documentation for this part.

Active

Inventus Power

AC/DC DESKTOP ADAPTER 9V 20W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	240	$ 17.26

General part information

9V 20 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	MWA020009B-10A	MWA020009 Series

Applications	Medical	Medical
Approval Agency	CB, CE, cTUVus	CB, CE, cTUVus
Cord Length	1.83 m	1.83 m
Cord Length	72 in	72 in
Current - Output (Max) [Max]	2.22 A	2.22 A
Efficiency	Level V	Level V
Form	Desktop (Class II)	Desktop (Class I), Desktop (Class II)
Input Connector	IEC 320-C8	IEC 320-C14, IEC 320-C8
Input Type	Cord	Cord
No Load Power Consumption	300 mW	300 mW
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	Barrel Plug	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm	2.5 - 5.5 mm
Output Connector [x]	9.5 mm	9.5 mm
Polarization	Positive Center	Positive Center
Power (Watts)	20 W	20 W
Region Utilized	International	International
Size / Dimension [x]	87.7 mm	87.7 mm
Size / Dimension [x]	3.45 in	3.45 in
Size / Dimension [y]	2.04 in	2.04 in
Size / Dimension [y]	51.8 mm	51.8 mm
Size / Dimension [z]	33 mm	33 mm
Size / Dimension [z]	1.3 "	1.3 "
Voltage - Output	9 V	9 V
Weight	181 g	181 g
Weight	0.399 lb	0.399 lb

AC/DC DESKTOP ADAPTER 9V 20W

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	No Load Power Consumption	Region Utilized	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Approval Agency	Weight	Weight	Output Connector [diameter]	Output Connector [x]	Output Connector	Current - Output (Max) [Max]	Polarization	Cord Length	Cord Length	Voltage - Output	Applications	Form	Input Type	Input Connector	Power (Watts)
Inventus Power MWA020009A-10A	33 mm	2.04 in	87.7 mm	3.45 in	51.8 mm	1.3 "	300 mW	International	40 °C	0 °C	Level V	CB, CE, cTUVus	181 g	0.399 lb	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	2.22 A	Positive Center	1.83 m	72 in	9 V	Medical	Desktop (Class I)	Cord	IEC 320-C14	20 W
Inventus Power MWA020009B-10A	33 mm	2.04 in	87.7 mm	3.45 in	51.8 mm	1.3 "	300 mW	International	40 °C	0 °C	Level V	CB, CE, cTUVus	181 g	0.399 lb	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	2.22 A	Positive Center	1.83 m	72 in	9 V	Medical	Desktop (Class II)	Cord	IEC 320-C8	20 W
