807-031-558-103

Active

EDAC Inc.

CONN EDGE SGL FMALE 31POS 0.156

807-031-558-103

Active

EDAC Inc.

CONN EDGE SGL FMALE 31POS 0.156

Description Specifications Series Pricing CAD Documents

Description

General part information

807-031 Series

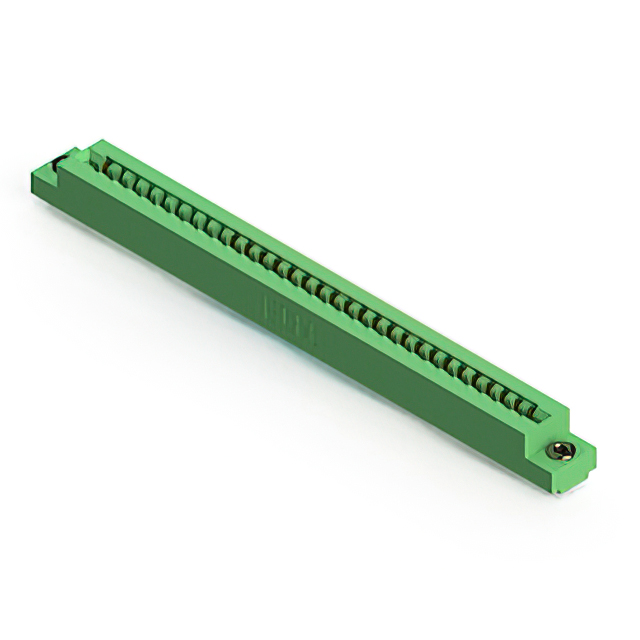

31 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green

Technical Specifications

Parameters and characteristics for this part

Specification	807-031-558-103

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature Diameter	0.116 in
Gender	Female
Material - Insulation	Diallyl Phthalate, DAP
Mounting Type	Through Hole, Right Angle
Number of Positions	31
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Single
Termination	Solder
Termination Rows	1 rows

807-031 Series

...

Part	Card Thickness (Min)	Card Thickness (Max)	Termination Rows	Material - Insulation	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions	Contact Material	Contact Finish	Termination	Flange Feature Diameter	Flange Feature	Number of Rows	Contact Type	Mounting Type	Color	Card Type	Gender	Read Out	Pitch	Contact Finish Thickness
EDAC Inc. 807-031-441-104	0.054 in	0.07 in	1 rows	DAP Diallyl Phthalate	125 °C	-40 °C	31 62	Copper Alloy	Tin	Wire Wrap	0.156 in	Flush Mount Top Opening Unthreaded	2	Semi Bellows	Through Hole	Green	Dual Edge Non Specified	Female	Dual	0.156 in
EDAC Inc. 807-031-557-102	0.054 in	0.07 in	1 rows	DAP Diallyl Phthalate	125 °C	-40 °C	31 62	Copper Alloy	Gold	Solder	0.128 in	Flush Mount Top Opening Unthreaded	2	Semi Bellows	Right Angle Through Hole	Green	Dual Edge Non Specified	Female	Dual	0.156 in	10 Ąin
EDAC Inc. 807-031-525-104	0.054 in	0.07 in	1 rows	DAP Diallyl Phthalate	125 °C	-40 °C	31	Copper Alloy	Gold	Solder	0.156 in	Flush Mount Top Opening Unthreaded	1	Semi Bellows	Through Hole	Green	Non Specified Single Edge	Female	Single	0.156 in	10 Ąin
EDAC Inc. 807-031-441-102	0.054 in	0.07 in	1 rows	DAP Diallyl Phthalate	125 °C	-40 °C	31 62	Copper Alloy	Tin	Wire Wrap	0.128 in	Flush Mount Top Opening Unthreaded	2	Semi Bellows	Through Hole	Green	Dual Edge Non Specified	Female	Dual	0.156 in
EDAC Inc. 807-031-559-108	0.054 in	0.07 in	1 rows	DAP Diallyl Phthalate	125 °C	-40 °C	31	Copper Alloy	Gold	Solder		4-40 Flush Mount Threaded Insert Top Opening	1	Semi Bellows	Right Angle Through Hole	Green	Non Specified Single Edge	Female	Single	0.156 in	10 Ąin
EDAC Inc. 807-031-527-104	0.054 in	0.07 in	1 rows	DAP Diallyl Phthalate	125 °C	-40 °C	31	Copper Alloy	Gold	Solder	0.156 in	Flush Mount Top Opening Unthreaded	1	Semi Bellows	Through Hole	Green	Non Specified Single Edge	Female	Single	0.156 in	10 Ąin
EDAC Inc. 807-031-547-107	0.054 in	0.07 in	1 rows	DAP Diallyl Phthalate	125 °C	-40 °C	31	Copper Alloy	Gold	Wire Wrap		Flush Mount M3 Threaded Insert Top Opening	1	Semi Bellows	Through Hole	Green	Non Specified Single Edge	Female	Single	0.156 in	10 Ąin
EDAC Inc. 807-031-521-107	0.054 in	0.07 in	1 rows	DAP Diallyl Phthalate	125 °C	-40 °C	31 62	Copper Alloy	Gold	Solder		Flush Mount M3 Threaded Insert Top Opening	2	Semi Bellows	Through Hole	Green	Dual Edge Non Specified	Female	Dual	0.156 in	10 Ąin
EDAC Inc. 807-031-558-103	0.054 in	0.07 in	1 rows	DAP Diallyl Phthalate	125 °C	-40 °C	31	Copper Alloy	Gold	Solder	0.116 in	Floating Bobbin Flush Mount	1	Semi Bellows	Right Angle Through Hole	Green	Non Specified Single Edge	Female	Single	0.156 in	10 Ąin
EDAC Inc. 807-031-527-102	0.054 in	0.07 in	1 rows	DAP Diallyl Phthalate	125 °C	-40 °C	31	Copper Alloy	Gold	Solder	0.128 in	Flush Mount Top Opening Unthreaded	1	Semi Bellows	Through Hole	Green	Non Specified Single Edge	Female	Single	0.156 in	10 Ąin
