2-215083-4

Active

TE Connectivity Raychem Cable Protection

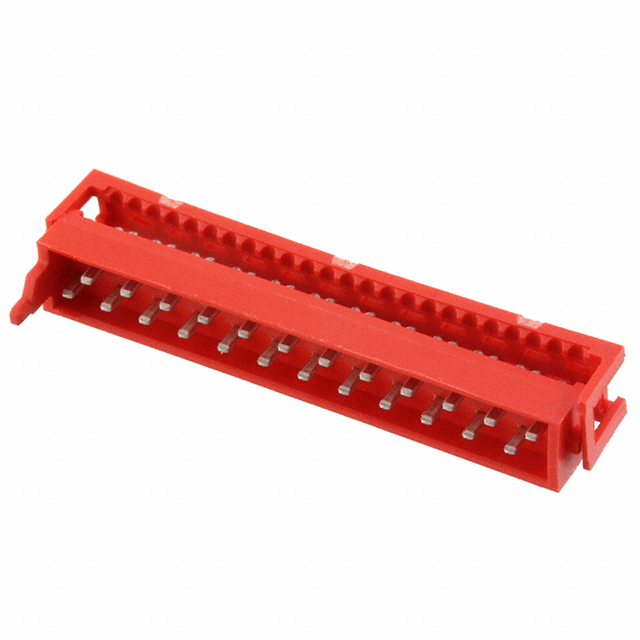

CONN PLUG 24POS IDC 28AWG TIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2-215083-4

Active

TE Connectivity Raychem Cable Protection

CONN PLUG 24POS IDC 28AWG TIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2-215083-4

Cable Termination	IDC
Color	Red
Connector Type	Plug
Contact Finish	Tin
Contact Type	Male Pin
Features	Feed Through
Mounting Type	Free Hanging (In-Line)
Number of Positions	24
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing [Max]	1.5 mm
Row Spacing [Max]	0.059 in
Wire Gauge	28 AWG
Wire Type	Ribbon Cable

Micro-MaTch Industrial Series

Headers & Wire Housings MM 4P FIB SMD CONN

...

Part	Contact Finish - Post	Contact Material	Insulation Material	Insulation Color	Pitch - Mating	Pitch - Mating	Voltage Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Insulation Height	Insulation Height	Number of Positions	Mounting Type	Contact Type	Number of Positions Loaded	Material Flammability Rating	Fastening Type	Termination	Style	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Length - Post	Contact Length - Post	Length	Length	Length	Number of Positions	Cable Termination	Wire Gauge	Pitch [x]	Pitch [x]	Color	Wire Type	Features	Contact Finish	Row Spacing [Max]	Row Spacing [Max]	Applications	Insulation Height [custom]	Insulation Height [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Contact Shape	Shrouding
TE Connectivity Raychem Cable Protection 1-100400-6	Tin	Phosphor Bronze	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Red	0.1 in	2.54 mm	100 V	2.54 mm	0.1 in	Receptacle	5.8 mm	0.228 in	16	Through Hole Right Angle	Forked	All	UL94 V-0	Push-Pull	Kinked Pin Solder	Board to Board Cable	-40 °C	105 ░C	2	0.122 "	3.1 mm
TE Connectivity Raychem Cable Protection 2205062-1										Plug to Plug													2			0.246 ft	75 mm	2.95 in	8	IDC
TE Connectivity Raychem Cable Protection 2-215083-0										Plug				Free Hanging (In-Line)	Male Pin								2						20	IDC	28 AWG	2.54 mm	0.1 in	Red	Ribbon Cable	Feed Through	Tin	1.5 mm	0.059 in
TE Connectivity Raychem Cable Protection 2-215083-4										Plug				Free Hanging (In-Line)	Male Pin								2						24	IDC	28 AWG	2.54 mm	0.1 in	Red	Ribbon Cable	Feed Through	Tin	1.5 mm	0.059 in
TE Connectivity Raychem Cable Protection 188275-6	Tin	Phosphor Bronze	Glass Filled Nylon 4/6 Polyamide (PA46)	Red	0.1 in	2.54 mm	100 V	2.54 mm	0.1 in	Receptacle	5.3 mm	0.209 "		Surface Mount	Forked	All	UL94 V-0	Push-Pull	Solder	Board to Board Cable	-40 °C	105 ░C	2						6											Automotive General Purpose
TE Connectivity Raychem Cable Protection 8-215079-8	Tin	Phosphor Bronze	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Red	0.1 in	2.54 mm	100 V	2.54 mm	0.1 in	Receptacle				Through Hole	Forked	All	UL94 V-0	Push-Pull	Kinked Pin Solder	Board to Board Cable	-40 °C	105 ░C	2	0.122 "	3.1 mm				18											Automotive General Purpose	0.157 in	4 mm
TE Connectivity Raychem Cable Protection 1-338068-8	Tin	Phosphor Bronze	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Red	0.1 in	2.54 mm	100 V	2.54 mm	0.1 in	Receptacle				Through Hole	Forked	All	UL94 V-0	Friction Lock	Kinked Pin Solder	Board to Board Cable	-40 °C	105 ░C	2	0.122 "	3.1 mm				18											Automotive General Purpose	0.157 in	4 mm
TE Connectivity Raychem Cable Protection 215464-8	Tin	Brass	Polybutylene Terephthalate (PBT) Glass Filled	Red	0.1 in	2.54 mm	230 V	2.54 mm	0.1 in	Header	3.6 mm	0.142 in		Through Hole	Male Pin	All	UL94 V-0	Latch Lock	Press-Fit Solder	Board to Board Cable	-40 °C	105 ░C	2	0.122 "	3.1 mm				8											General Purpose			118.1 µin	3 µm	1.5 A	Rectangular	Shrouded - 4 Wall
TE Connectivity Raychem Cable Protection 1-215464-4	Tin	Brass	Polybutylene Terephthalate (PBT) Glass Filled	Red	0.1 in	2.54 mm	230 V	2.54 mm	0.1 in	Header	3.6 mm	0.142 in		Through Hole	Male Pin	All	UL94 V-0	Latch Lock	Press-Fit Solder	Board to Board Cable	-40 °C	105 ░C	2	0.122 "	3.1 mm				14											General Purpose			118.1 µin	3 µm	1.5 A	Rectangular	Shrouded - 4 Wall
TE Connectivity Raychem Cable Protection 7-215460-8	Tin	Phosphor Bronze	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Red	0.1 in	2.54 mm	100 V	2.54 mm	0.1 in	Receptacle	5.8 mm	0.228 in		Through Hole Right Angle	Forked	All	UL94 V-0	Push-Pull	Kinked Pin Solder	Board to Board Cable	-40 °C	105 ░C	2	0.122 "	3.1 mm				8											Automotive General Purpose
