1019184

Active

Phoenix Contact

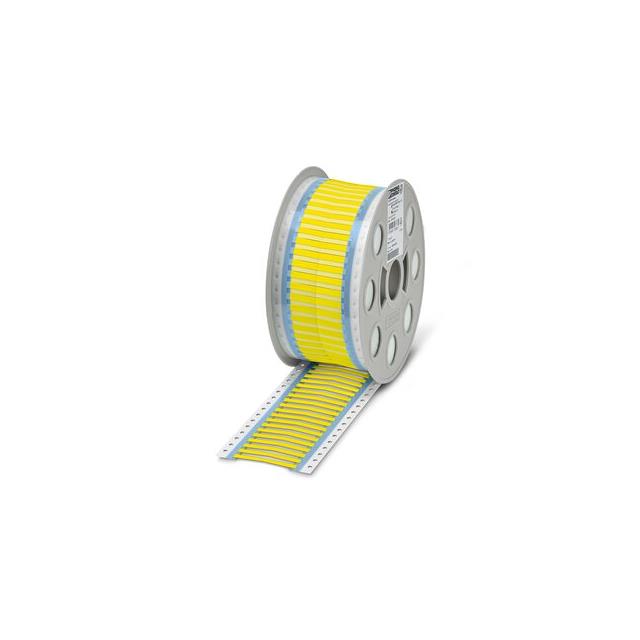

SHRINK SLEEVE, ROLL, YELLOW, UNL

Search across all available documentation for this part.

Active

Phoenix Contact

SHRINK SLEEVE, ROLL, YELLOW, UNL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1352.04

General part information

Yellow Standard Label 0.197" W x 1.181" L (5.0mm x 30.0mm); Cable O.D. 0.04" ~ 0.13" (1.0mm ~ 3.2mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1019184	WMS 3,2 Series

Color	Yellow	Black, White, Yellow
For Use With/Related Products	-	Thermomark Printer
Label Size	-	0.2 - 393.7 in
Label Size	-	0.2 in
Label Size	-	2.36 in
Label Size	-	5 mm
Label Size	-	30 - 60 mm
Label Size	-	3.2 mm
Label Size	-	0.126 in
Label Size [Max] [x]	3.2 mm	3.2 mm
Label Size [Max] [x]	0.13 "	0.13 "
Label Size [Min] [x]	0.04 "	0.04 "
Label Size [Min] [x]	1 mm	1 mm
Label Size [x]	0.197 in	0.197 - 0.2 "
Label Size [x]	5 mm	5 mm
Label Size [y]	30 mm	30 mm
Label Size [y]	1.181 in	1.18 - 98.4 in
Label Type	Standard	Heat Shrinkable, Standard
Material	Polyolefin (PO)	Polyolefin, Polyolefin (PO), Halogen Free
Operating Temperature [Max]	125 °C	125 - 135 °C
Operating Temperature [Min]	-55 °C	-55 °C

LABEL HEAT SHRINKABLE BLACK

Part	Label Type	Color	Material	For Use With/Related Products	Label Size	Operating Temperature [Max]	Operating Temperature [Min]	Label Size [x]	Label Size [y]	Label Size [x]	Label Size [y]	Label Size [y]	Label Size [x]	Label Size [y]	Label Size [x]	Label Size [Max] [x]	Label Size [Min] [x]	Label Size [Max] [x]	Label Size [Min] [x]	Label Size [diameter]	Label Size [diameter]
Phoenix Contact 0800428	Heat Shrinkable	Black	Polyolefin	Thermomark Printer	0.2 in, 393.7 '	135 °C	-55 °C
Phoenix Contact 0800384	Heat Shrinkable	White	Polyolefin	Thermomark Printer		135 °C	-55 °C	0.2 in	2.36 in	5 mm	60 mm
Phoenix Contact 0800399	Heat Shrinkable	Yellow	Polyolefin	Thermomark Printer		135 °C	-55 °C	0.2 in	2.36 in	5 mm	60 mm
Phoenix Contact 0800374	Heat Shrinkable	White	Polyolefin	Thermomark Printer		135 °C	-55 °C			5 mm	30 mm	1.18 in	0.2 "
Phoenix Contact 0800387	Heat Shrinkable	White	Polyolefin	Thermomark Printer		135 °C	-55 °C			5 mm	30 mm	1.18 in	0.2 "
Phoenix Contact 0800320	Heat Shrinkable	White	Polyolefin	Thermomark Printer	0.2 in, 393.7 '	135 °C	-55 °C
Phoenix Contact 1019184	Standard	Yellow	Polyolefin (PO)			125 °C	-55 °C					1.181 in	0.197 in	30 mm	5 mm	3.2 mm	0.04 "	0.13 "	1 mm
Phoenix Contact 0800408	Heat Shrinkable	Yellow	Polyolefin	Thermomark Printer		135 °C	-55 °C			5 mm	30 mm	1.18 in	0.2 "
Phoenix Contact 0804268	Heat Shrinkable	White	Halogen Free, Polyolefin (PO)	Thermomark Printer						5 mm	30 mm	1.181 in	0.197 in							3.2 mm	0.126 in
Phoenix Contact 0800301	Heat Shrinkable	Yellow	Polyolefin	Thermomark Printer		135 °C	-55 °C			5 mm	30 m	98.4 '	0.2 "
