8279 0101000

8279 010500

Active

MINI VIDEO CABLE

8279 0101000

8279 010500

Active

MINI VIDEO CABLE

Description Specifications Series Pricing CAD Documents

Description

General part information

8279 Series

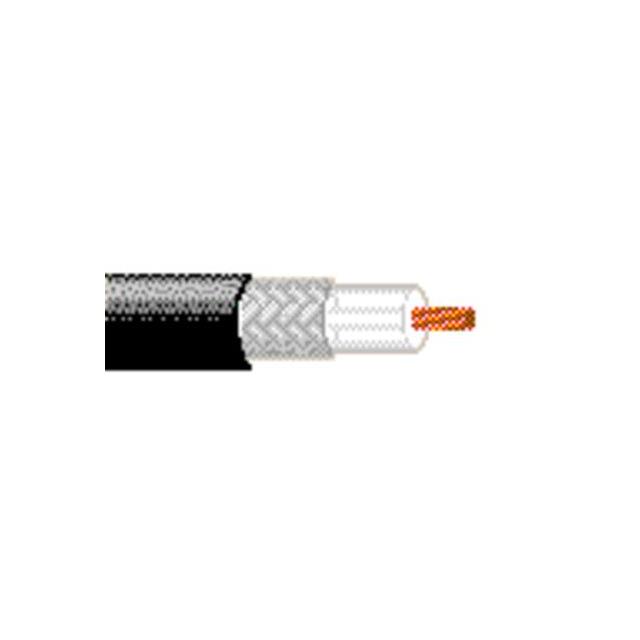

Coaxial Cable 23 AWG RG-59 Mini 500.0' (152.40m) 75 Ohms

Technical Specifications

Parameters and characteristics for this part

Specification	8279 010500

Cable Group	RG-59 Mini
Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand Count	7 Strands
Conductor Strand Gauge	32
Dielectric Diameter	0.146 in
Dielectric Material	Polyethylene (PE)
Features	Direct Burial
Impedance	75 Ohm
Jacket (Insulation) Diameter	0.22 in
Jacket (Insulation) Material	Polyethylene (PE)
Jacket Color	Black
Length	500 ft
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-55 °C
Shield Coverage	95 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Video
Velocity of Propagation (VoP)	66 %
Wire Gauge	23 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — free Log in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

8279 010500 | Datasheet

8279 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Velocity of Propagation (VoP)	Shield Material	Dielectric Material	Shield Coverage	Conductor Material	Dielectric Diameter	Length	Jacket (Insulation) Diameter	Cable Type	Wire Gauge	Shield Type	Cable Group	Impedance	Features	Conductor Strand Count	Conductor Strand Gauge	Usage	Jacket Color	Jacket (Insulation) Material
Belden Inc. 8279 010500	80 °C	-55 °C	66 %	Copper Tinned	Polyethylene (PE)	95 %	Bare Copper	0.146 in	500 ft	0.22 in	Coaxial	23 AWG	Braid	RG-59 Mini	75 Ohm	Direct Burial	7 Strands	32	Video	Black	Polyethylene (PE)
