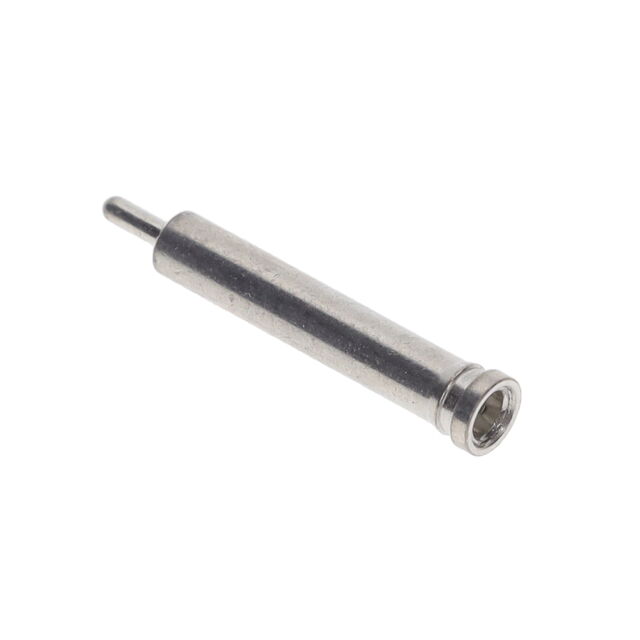

4034-0-15-01-23-01-04-0

Active

Mill-Max Manufacturing Corp.

CONN RECEPT PIN .045-.065" .125"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4034-0-15-01-23-01-04-0

Accepts Pin Diameter [Max]	0.065 in
Accepts Pin Diameter [Max]	1.65 mm
Accepts Pin Diameter [Min]	0.045 in
Accepts Pin Diameter [Min]	1.14 mm
Contact Finish	Tin-Lead
Contact Finish Thickness	200 Áin
Contact Finish Thickness	5.08 Ám
Contact Material	Beryllium Copper
Flange Diameter [diameter]	3.12 mm
Flange Diameter [diameter]	0.123 in
Length - Overall [x]	0.725 in
Length - Overall [x]	18.42 mm
Mounting Hole Diameter [diameter]	2.77 mm
Mounting Hole Diameter [diameter]	0.109 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.088 in
Pin Hole Diameter [diameter]	2.24 mm
Socket Depth	9.53 mm
Socket Depth	0.375 in
Tail Diameter	1.02 mm
Tail Diameter [diameter]	0.04 "
Tail Type	Standard Tail
Termination	Press-Fit

4034-0 Series

Part	Socket Depth	Socket Depth	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Termination	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Flange Diameter [diameter]	Flange Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Length - Overall [x]	Length - Overall [x]	Contact Finish Thickness	Contact Finish Thickness	Tail Type	Contact Material	Tail Diameter [diameter]	Tail Diameter
Mill-Max Manufacturing Corp. 4034-0-15-01-23-01-04-0	9.53 mm	0.375 in	2.77 mm	0.109 in	0.088 in	2.24 mm	Press-Fit	Tin-Lead	-55 °C	125 °C	3.12 mm	0.123 in	0.065 in	0.045 in	1.14 mm	1.65 mm	0.725 in	18.42 mm	200 Áin	5.08 Ám	Standard Tail	Beryllium Copper	0.04 "	1.02 mm
Mill-Max Manufacturing Corp. 4034-0-15-80-23-14-04-0	9.53 mm	0.375 in	2.77 mm	0.109 in	0.088 in	2.24 mm	Press-Fit	Gold	-55 °C	125 °C	3.12 mm	0.123 in	0.065 in	0.045 in	1.14 mm	1.65 mm	0.725 in	18.42 mm	10 Áin	0.25 Ám	Standard Tail	Beryllium Copper	0.04 "	1.02 mm
Mill-Max Manufacturing Corp. 4034-0-15-15-23-27-04-0	9.53 mm	0.375 in	2.77 mm	0.109 in	0.088 in	2.24 mm	Press-Fit	Gold	-55 °C	125 °C	3.12 mm	0.123 in	0.065 in	0.045 in	1.14 mm	1.65 mm	0.725 in	18.42 mm	30 Áin	0.76 Ám	Standard Tail	Beryllium Copper	0.04 "	1.02 mm
Mill-Max Manufacturing Corp. 4034-0-15-80-23-80-04-0	9.53 mm	0.375 in	2.77 mm	0.109 in	0.088 in	2.24 mm	Press-Fit	Tin	-55 °C	125 °C	3.12 mm	0.123 in	0.065 in	0.045 in	1.14 mm	1.65 mm	0.725 in	18.42 mm	200 Áin	5.08 Ám	Standard Tail	Beryllium Copper	0.04 "	1.02 mm
Mill-Max Manufacturing Corp. 4034-0-15-01-23-27-04-0	9.53 mm	0.375 in	2.77 mm	0.109 in	0.088 in	2.24 mm	Press-Fit	Gold	-55 °C	125 °C	3.12 mm	0.123 in	0.065 in	0.045 in	1.14 mm	1.65 mm	0.725 in	18.42 mm	30 Áin	0.76 Ám	Standard Tail	Beryllium Copper	0.04 "	1.02 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.78
		10	$ 1.55
		100	$ 1.39
		1000	$ 0.99
		5000	$ 0.88
		10000	$ 0.86

Description

General part information

4034-0 Series

Pin Receptacle Connector 0.045" ~ 0.065" (1.14mm ~ 1.65mm) Standard Tail Press-Fit
