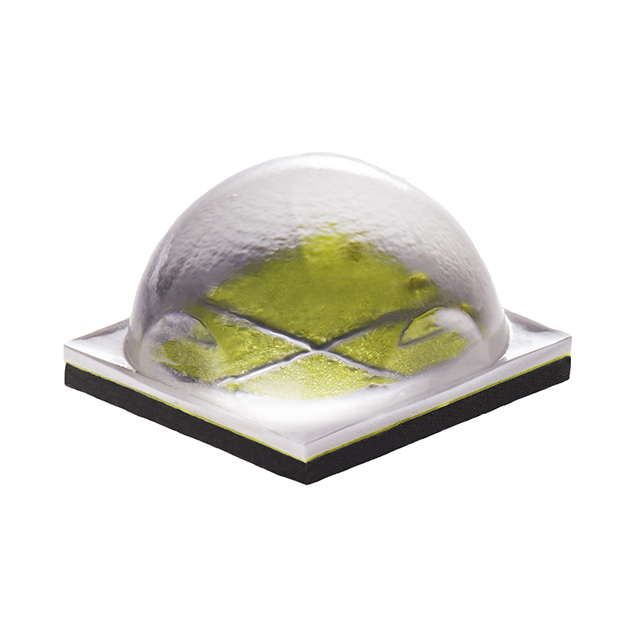

XHP70A-01-0000-0D0UK40CB

Obsolete

Cree LED

LED XLAMP COOL WHITE 6500K SMD

Deep-Dive with AI

Search across all available documentation for this part.

XHP70A-01-0000-0D0UK40CB

Obsolete

Cree LED

LED XLAMP COOL WHITE 6500K SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XHP70A-01-0000-0D0UK40CB

CCT (K)	6500 K
Color	Cool, White
CRI (Color Rendering Index)	90
Current - Max	2.4 A, 4.8 A
Current - Test	1.05 A
Current - Test	2.1 A
Flux @ 85°C, Current - Test	1335 lm
Flux @ 85°C, Current - Test [Max]	1380 lm
Flux @ 85°C, Current - Test [Min]	1290 lm
Height - Seated (Max) [Max]	0.182 in
Height - Seated (Max) [Max]	4.62 mm
Lumens/Watt @ Current - Test	106 lm/W
Mounting Type	Surface Mount
Size / Dimension [x]	0.276 "
Size / Dimension [x]	7 mm
Size / Dimension [y]	7 mm
Size / Dimension [y]	0.276 in
Supplier Device Package	SMD
Thermal Resistance of Package	0.9 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	6 V, 12 V

XHP70A Series

...

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lumens/Watt @ Current - Test	Current - Max	Current - Test	Current - Test	Supplier Device Package	Thermal Resistance of Package	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Mounting Type	Color	CCT (K)	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test [Min]	Flux @ 85°C, Current - Test	Viewing Angle
Cree LED XHP70A-00-0000-0D0UK40E2	0.182 in	4.62 mm	106 lm/W	2.4 A 4.8 A	1.05 A	2.1 A	SMD	0.9 °C/W	7 mm	0.276 in	0.276 "	7 mm	6 V 12 V	90	Surface Mount	Cool White	5700 K	1380 lm	1290 lm	1335 lm	120 °
Cree LED XHP70A-00-0000-0D0BN40DV	0.182 in	4.62 mm	140 lm/W	2.4 A 4.8 A	1.05 A	2.1 A	SMD	0.9 °C/W	7 mm	0.276 in	0.276 "	7 mm	6 V 12 V	70	Surface Mount	Cool White	6000 K			1770 lm	120 °
Cree LED XHP70A-01-0000-0D0UK40CB	0.182 in	4.62 mm	106 lm/W	2.4 A 4.8 A	1.05 A	2.1 A	SMD	0.9 °C/W	7 mm	0.276 in	0.276 "	7 mm	6 V 12 V	90	Surface Mount	Cool White	6500 K	1380 lm	1290 lm	1335 lm	120 °
Cree LED XHP70A-01-0000-0D0HM230G	0.182 in	4.62 mm	114 lm/W	2.4 A 4.8 A	1.05 A	2.1 A	SMD	0.9 °C/W	7 mm	0.276 in	0.276 "	7 mm	6 V 12 V	80	Surface Mount	Warm White	3000 K	1485 lm	1380 lm	1433 lm	120 °
Cree LED XHP70A-01-0000-0D0UK240H	0.182 in	4.62 mm	99 lm/W	2.4 A 4.8 A	1.05 A	2.1 A	SMD	0.9 °C/W	7 mm	0.276 in	0.276 "	7 mm	6 V 12 V	90	Surface Mount	Neutral White	4000 K	1290 lm	1200 lm	1245 lm	120 °
Cree LED XHP70A-01-0000-0D0HM40E2	0.182 in	4.62 mm	122 lm/W	2.4 A 4.8 A	1.05 A	2.1 A	SMD	0.9 °C/W	7 mm	0.276 in	0.276 "	7 mm	6 V 12 V	80	Surface Mount	Cool White	5700 K	1590 lm	1485 lm	1538 lm	120 °
Cree LED XHP70A-00-0000-0D0HN250G	0.182 in	4.62 mm	131 lm/W	2.4 A 4.8 A	1.05 A	2.1 A	SMD	0.9 °C/W	7 mm	0.276 in	0.276 "	7 mm	6 V 12 V	80	Surface Mount	Cool White		1710 lm	1590 lm	1650 lm	120 °
Cree LED XHP70A-01-0000-0D0HM40CB	0.182 in	4.62 mm	122 lm/W	2.4 A 4.8 A	1.05 A	2.1 A	SMD	0.9 °C/W	7 mm	0.276 in	0.276 "	7 mm	6 V 12 V	80	Surface Mount	Cool White	6500 K	1590 lm	1485 lm	1538 lm	120 °
Cree LED XHP70A-01-0000-0D0BM230E	0.182 in	4.62 mm	114 lm/W	2.4 A 4.8 A	1.05 A	2.1 A	SMD	0.9 °C/W	7 mm	0.276 in	0.276 "	7 mm	6 V 12 V	70	Surface Mount	Warm White	3000 K	1485 lm	1380 lm	1433 lm	120 °
Cree LED XHP70A-00-0000-0D0BM40E7	0.182 in	4.62 mm	122 lm/W	2.4 A 4.8 A	1.05 A	2.1 A	SMD	0.9 °C/W	7 mm	0.276 in	0.276 "	7 mm	6 V 12 V	70	Surface Mount	Warm White		1590 lm	1485 lm	1538 lm	120 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XHP70A Series

LED Lighting Xlamp® XHP70 White, Cool 6500K 6V, 12V 2.1A, 1.05A 120° 2828 (7070 Metric)

Documents

Technical documentation and resources

No documents available
