LSF0102QDCURQ1

Active

Texas Instruments

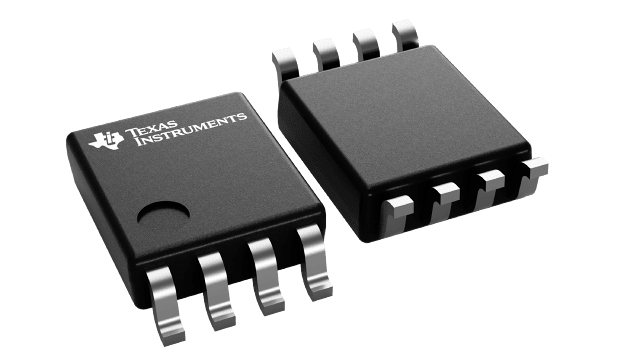

AUTOMOTIVE DUAL-CHANNEL BIDIRECTIONAL MULTI-VOLTAGE LEVEL TRANSLATOR 8-VSSOP -40 TO 125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsVoltage Translation Buying Guide (Rev. A)Understanding Transient Drive Strength vs. DC Drive Strength in Level-Shifters (Rev. A)+5

LSF0102QDCURQ1

Active

Texas Instruments

AUTOMOTIVE DUAL-CHANNEL BIDIRECTIONAL MULTI-VOLTAGE LEVEL TRANSLATOR 8-VSSOP -40 TO 125

Deep-Dive with AI

DocumentsVoltage Translation Buying Guide (Rev. A)Understanding Transient Drive Strength vs. DC Drive Strength in Level-Shifters (Rev. A)+5

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LSF0102QDCURQ1	LSF0102 Series

Channel Type	Bidirectional	Bidirectional
Channels per Circuit	2	2
Data Rate	-	100 MHz
Features	-	Auto-Direction Sensing
Grade	Automotive	Automotive
Mounting Type	Surface Mount	Surface Mount
Number of Circuits	1	1
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	Push-Pull, Open Drain	Push-Pull, Open Drain
Package / Case	0.091 in	0.091 in
Package / Case	8-VFSOP	8-VFSOP, TSOT-23-8, SOT-23-8 Thin, 8-XFDFN
Package / Case	2.3 mm	2.3 mm
Qualification	AEC-Q100	AEC-Q100
Supplier Device Package	-	SM8, TSOT-23-8, 8-X2SON (1.4x1)
Translator Type	Voltage Level	Voltage Level
Voltage - VCCA [Max]	5 V	5 V
Voltage - VCCA [Min]	0 V	0 V
Voltage - VCCB [Max]	5 V	5 V
Voltage - VCCB [Min]	0 V	0 - 0.95 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow Electronics	Cut Strips	1	$ 0.31
		10	$ 0.29
		25	$ 0.29
		100	$ 0.29
		250	$ 0.29
		500	$ 0.29
		1000	$ 0.29
Chip One Stop	Cut Tape	5	$ 0.29
		10	$ 0.29
		50	$ 0.29
		100	$ 0.29
		500	$ 0.28
DigiKey	Digi-Reel®, Cut Tape (CT), Tape & Reel (TR)	1	$ 0.70
		10	$ 0.50
		25	$ 0.45
		100	$ 0.39
		250	$ 0.36
		500	$ 0.35
		1000	$ 0.33
		3000	$ 0.32
		6000	$ 0.31
		9000	$ 0.31
		15000	$ 0.30
		21000	$ 0.30
		30000	$ 0.30
Digikey	Cut Tape (CT)	1	$ 0.85
		10	$ 0.75
		25	$ 0.70
		100	$ 0.57
		250	$ 0.53
		500	$ 0.45
		1000	$ 0.36
	Digi-Reel®	1	$ 0.85
		10	$ 0.75
		25	$ 0.70
		100	$ 0.57
		250	$ 0.53
		500	$ 0.45
		1000	$ 0.36
	Tape & Reel (TR)	3000	$ 0.33
		6000	$ 0.31
		15000	$ 0.29
		30000	$ 0.28
Mouser Electronics	N/A	1	$ 0.66
		10	$ 0.43
		100	$ 0.36
		500	$ 0.34
		1000	$ 0.33
		3000	$ 0.32
		6000	$ 0.31
		9000	$ 0.30
		24000	$ 0.29
Quest Components	N/A	1	$ 0.98
		103	$ 0.49
		409	$ 0.39
Rochester Electronics	N/A	1	$ 0.31
		25	$ 0.30
		100	$ 0.29
		500	$ 0.28
		1000	$ 0.26
Texas Instruments	LARGE T&R	1	$ 0.55
		100	$ 0.43
		250	$ 0.31
		1000	$ 0.22
Verical	N/A	21	$ 0.29
		25	$ 0.29
		100	$ 0.29
		250	$ 0.29
		500	$ 0.29
		1000	$ 0.29
Win Source Electronics	N/A	135	$ 0.38
		325	$ 0.31
		500	$ 0.30
		690	$ 0.29
		890	$ 0.28
		1190	$ 0.25

LSF0102 Series

Dual bidirectional multivoltage level translator

Part	Translator Type	Channel Type	Voltage - VCCA [Min]	Voltage - VCCA [Max]	Output Type	Channels per Circuit	Qualification	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Package / Case	Voltage - VCCB [Max]	Voltage - VCCB [Min]	Number of Circuits	Grade	Mounting Type	Supplier Device Package	Features	Data Rate
Texas Instruments LSF0102QDCURQ1 The LSF0102-Q1 device is an auto bidirectional voltage translator that translates among a wide range of supplies without the need for a directional pin. The LSF0102-Q1 supports up to 100 MHz up translation and greater than 100 MHz down translation with capacitive loads ≤ 30 pF. Additionally, the LSF0102-Q1 supports up to 40 MHz up and down translation at 50 pF capacitance load, which enables the LSF0102-Q1 device to support a wide variety of standard interfaces commonly found in automotive applications such as I 2C, SPI, GPIO, SDIO, UART, and MDIO. The LSF0102-Q1 device has 5-V tolerant data inputs. This makes the device compatible with TTL voltage levels. Furthermore, the LSF0102-Q1 supports mixed-mode voltage translation, allowing the device to up translate and down translate to different supply levels on each channel. The LSF0102-Q1 device is an auto bidirectional voltage translator that translates among a wide range of supplies without the need for a directional pin. The LSF0102-Q1 supports up to 100 MHz up translation and greater than 100 MHz down translation with capacitive loads ≤ 30 pF. Additionally, the LSF0102-Q1 supports up to 40 MHz up and down translation at 50 pF capacitance load, which enables the LSF0102-Q1 device to support a wide variety of standard interfaces commonly found in automotive applications such as I 2C, SPI, GPIO, SDIO, UART, and MDIO. The LSF0102-Q1 device has 5-V tolerant data inputs. This makes the device compatible with TTL voltage levels. Furthermore, the LSF0102-Q1 supports mixed-mode voltage translation, allowing the device to up translate and down translate to different supply levels on each channel.	Voltage Level	Bidirectional	0 V	5 V	Open Drain, Push-Pull	2	AEC-Q100	125 °C	-40 °C	0.091 in	8-VFSOP	2.3 mm	5 V	0 V	1	Automotive	Surface Mount
Texas Instruments LSF0102DCTR The LSF family of devices supports bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I2C, SMBus, and so forth). The LSF family of devices supports up to 100MHz up translation and greater than 100MHz down translation at ≤ 30pF capacitive load and up to 40MHz up or down translation at 50pF capacitive load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO). LSF family supports 5V tolerance on I/O port which makes it compatible with TTL levels in industrial and telecom applications. The LSF family is able to set up different voltage translation levels which makes it very flexible. The LSF family of devices supports bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I2C, SMBus, and so forth). The LSF family of devices supports up to 100MHz up translation and greater than 100MHz down translation at ≤ 30pF capacitive load and up to 40MHz up or down translation at 50pF capacitive load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO). LSF family supports 5V tolerance on I/O port which makes it compatible with TTL levels in industrial and telecom applications. The LSF family is able to set up different voltage translation levels which makes it very flexible.	Voltage Level	Bidirectional	0 V	5 V	Open Drain, Push-Pull	2		125 °C	-40 °C				5 V	0 V	1		Surface Mount	SM8	Auto-Direction Sensing
Texas Instruments LSF0102DDFR The LSF family of devices supports bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I2C, SMBus, and so forth). The LSF family of devices supports up to 100MHz up translation and greater than 100MHz down translation at ≤ 30pF capacitive load and up to 40MHz up or down translation at 50pF capacitive load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO). LSF family supports 5V tolerance on I/O port which makes it compatible with TTL levels in industrial and telecom applications. The LSF family is able to set up different voltage translation levels which makes it very flexible. The LSF family of devices supports bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I2C, SMBus, and so forth). The LSF family of devices supports up to 100MHz up translation and greater than 100MHz down translation at ≤ 30pF capacitive load and up to 40MHz up or down translation at 50pF capacitive load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO). LSF family supports 5V tolerance on I/O port which makes it compatible with TTL levels in industrial and telecom applications. The LSF family is able to set up different voltage translation levels which makes it very flexible.	Voltage Level	Bidirectional			Open Drain, Push-Pull	2		125 °C	-40 °C		SOT-23-8 Thin, TSOT-23-8		5 V	0.95 V	1		Surface Mount	TSOT-23-8		100 MHz
Texas Instruments LSF0102DQER The LSF family of devices supports bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I2C, SMBus, and so forth). The LSF family of devices supports up to 100MHz up translation and greater than 100MHz down translation at ≤ 30pF capacitive load and up to 40MHz up or down translation at 50pF capacitive load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO). LSF family supports 5V tolerance on I/O port which makes it compatible with TTL levels in industrial and telecom applications. The LSF family is able to set up different voltage translation levels which makes it very flexible. The LSF family of devices supports bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I2C, SMBus, and so forth). The LSF family of devices supports up to 100MHz up translation and greater than 100MHz down translation at ≤ 30pF capacitive load and up to 40MHz up or down translation at 50pF capacitive load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO). LSF family supports 5V tolerance on I/O port which makes it compatible with TTL levels in industrial and telecom applications. The LSF family is able to set up different voltage translation levels which makes it very flexible.	Voltage Level	Bidirectional	0 V	5 V	Open Drain, Push-Pull	2		125 °C	-40 °C		8-XFDFN		5 V	0 V	1		Surface Mount	8-X2SON (1.4x1)	Auto-Direction Sensing
Texas Instruments LSF0102DCUR The LSF family of devices supports bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I2C, SMBus, and so forth). The LSF family of devices supports up to 100MHz up translation and greater than 100MHz down translation at ≤ 30pF capacitive load and up to 40MHz up or down translation at 50pF capacitive load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO). LSF family supports 5V tolerance on I/O port which makes it compatible with TTL levels in industrial and telecom applications. The LSF family is able to set up different voltage translation levels which makes it very flexible. The LSF family of devices supports bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I2C, SMBus, and so forth). The LSF family of devices supports up to 100MHz up translation and greater than 100MHz down translation at ≤ 30pF capacitive load and up to 40MHz up or down translation at 50pF capacitive load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO). LSF family supports 5V tolerance on I/O port which makes it compatible with TTL levels in industrial and telecom applications. The LSF family is able to set up different voltage translation levels which makes it very flexible.	Voltage Level	Bidirectional	0 V	5 V	Open Drain, Push-Pull	2		125 °C	-40 °C	0.091 in	8-VFSOP	2.3 mm	5 V	0 V	1		Surface Mount		Auto-Direction Sensing

Description

General part information

LSF0102 Series

The LSF family of devices supports bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I2C, SMBus, and so forth). The LSF family of devices supports up to 100MHz up translation and greater than 100MHz down translation at ≤ 30pF capacitive load and up to 40MHz up or down translation at 50pF capacitive load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO).

LSF family supports 5V tolerance on I/O port which makes it compatible with TTL levels in industrial and telecom applications. The LSF family is able to set up different voltage translation levels which makes it very flexible.
