TFT20018 NA005

Active

ALPHA WIRE

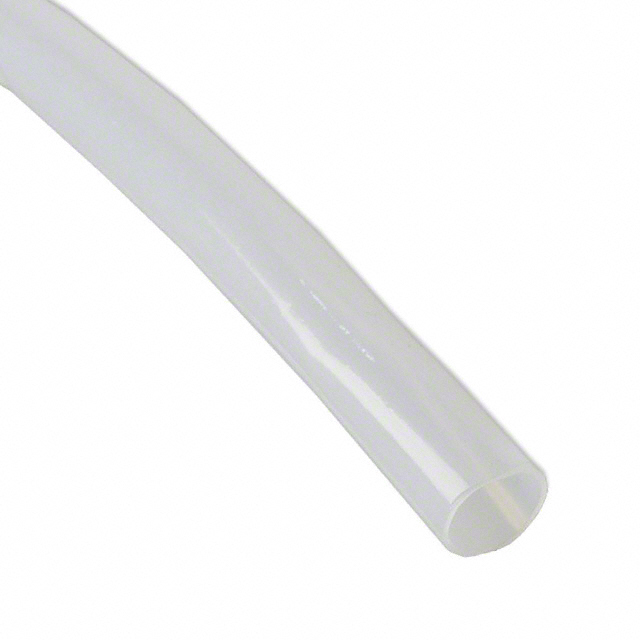

TUBING 0.04" ID PTFE 100' NAT

Search across all available documentation for this part.

Active

ALPHA WIRE

TUBING 0.04" ID PTFE 100' NAT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TFT20018 NA005	TFT20018 Series

Abrasion Protection	Abrasion Resistant	Abrasion Resistant
Color	Natural	Natural
Diameter - Inside [diameter]	1.02 mm	1.02 mm
Diameter - Inside [diameter]	0.04 "	0.04 "
Diameter - Outside [diameter]	0.07 "	0.07 "
Diameter - Outside [diameter]	1.78 mm	1.78 mm
Environment Protection	Corrosion Resistant	Corrosion Resistant
Heat Protection	Heat Resistant	Heat Resistant
Length	100 ft	100 ft
Length	30.48 m	30.48 m
Length	-	500 '
Length	-	152.4 m
Liquid Protection	Oil Resistant	Oil Resistant
Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Material Flammability Rating	UL94 V-0	UL94 V-0
Operating Temperature [Max]	260 ░C	260 ░C
Operating Temperature [Min]	-103 °F	-103 °F
Type	Solid Tubing	Solid Tubing
Type Attributes	Smooth	Smooth
Wall Thickness	0.012 in	0.012 in
Wall Thickness	0.3 mm	0.3 mm

TFT20018 NATURAL 500 FT ROHS COMPLIANT: YES

Part	Environment Protection	Heat Protection	Type	Color	Abrasion Protection	Length [x]	Length [x]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Material Flammability Rating	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Type Attributes	Liquid Protection	Wall Thickness	Wall Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Material	Length	Length
ALPHA WIRE TFT20018 NA002	Corrosion Resistant	Heat Resistant	Solid Tubing	Natural	Abrasion Resistant	500 '	152.4 m	0.07 "	1.78 mm	UL94 V-0	1.02 mm	0.04 "	Smooth	Oil Resistant	0.012 in	0.3 mm	260 ░C	-103 °F	Polytetrafluoroethylene (PTFE)
ALPHA WIRE TFT20018 NA005	Corrosion Resistant	Heat Resistant	Solid Tubing	Natural	Abrasion Resistant			0.07 "	1.78 mm	UL94 V-0	1.02 mm	0.04 "	Smooth	Oil Resistant	0.012 in	0.3 mm	260 ░C	-103 °F	Polytetrafluoroethylene (PTFE)	100 ft	30.48 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Natural Polytetrafluoroethylene (PTFE) Smooth Solid Tubing 0.040" (1.02mm) 100' (30.48m)
