HFC0310GS-Z

Active

Monolithic Power Systems Inc.

IC OFFLINE SWITCH FLYBACK 8SOIC

Search across all available documentation for this part.

Active

Monolithic Power Systems Inc.

IC OFFLINE SWITCH FLYBACK 8SOIC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HFC0310GS-Z	HFC0310 Series

Control Features	Frequency Control	Frequency Control
Fault Protection	Over Temperature, Over Load, Over Voltage, Short Circuit	Over Temperature, Over Load, Over Voltage, Short Circuit
Frequency - Switching [Max]	600 kHz	600 kHz
Internal Switch(s)	False	False
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 ¯C	125 ¯C
Operating Temperature [Min]	-40 °C	-40 °C
Output Isolation	Isolated	Isolated

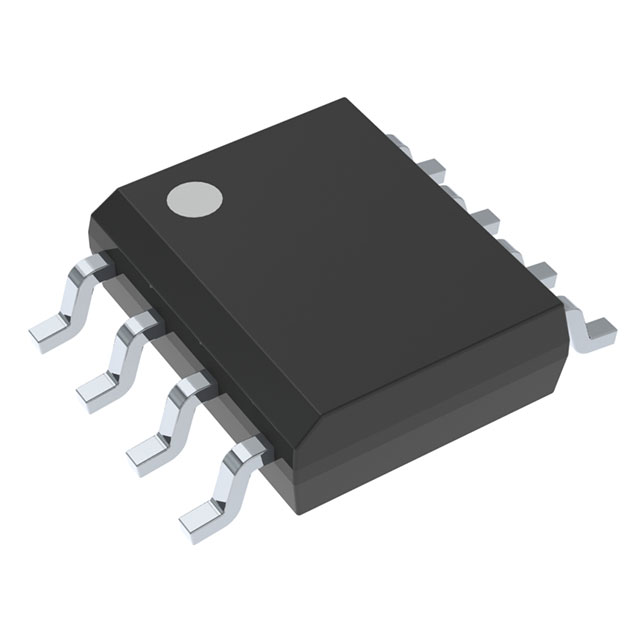

Package / Case	8-SOIC	8-SOIC
Package / Case [x]	0.154 in	0.154 in
Package / Case [y]	3.9 mm	3.9 mm
Supplier Device Package	8-SOIC	8-SOIC
Topology	Flyback	Flyback
Voltage - Start Up	12 V	12 V
Voltage - Supply (Vcc/Vdd) [Max]	20 V	20 V
Voltage - Supply (Vcc/Vdd) [Min]	8 V	8 V

IC REG CTRLR FLYBK PWM 8SOIC

Part	Package / Case	Package / Case [y]	Package / Case [x]	Fault Protection	Internal Switch(s)	Output Isolation	Frequency - Switching [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Supplier Device Package	Mounting Type	Topology	Voltage - Start Up	Control Features
Monolithic Power Systems Inc. HFC0310GS	8-SOIC	3.9 mm	0.154 in	Over Load, Over Temperature, Over Voltage, Short Circuit		Isolated	600 kHz	-40 °C	125 ¯C	20 V	8 V	8-SOIC	Surface Mount	Flyback	12 V	Frequency Control
Monolithic Power Systems Inc. HFC0310GS-Z	8-SOIC	3.9 mm	0.154 in	Over Load, Over Temperature, Over Voltage, Short Circuit		Isolated	600 kHz	-40 °C	125 ¯C	20 V	8 V	8-SOIC	Surface Mount	Flyback	12 V	Frequency Control

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Converter Offline Flyback Topology Up to 600kHz 8-SOIC
