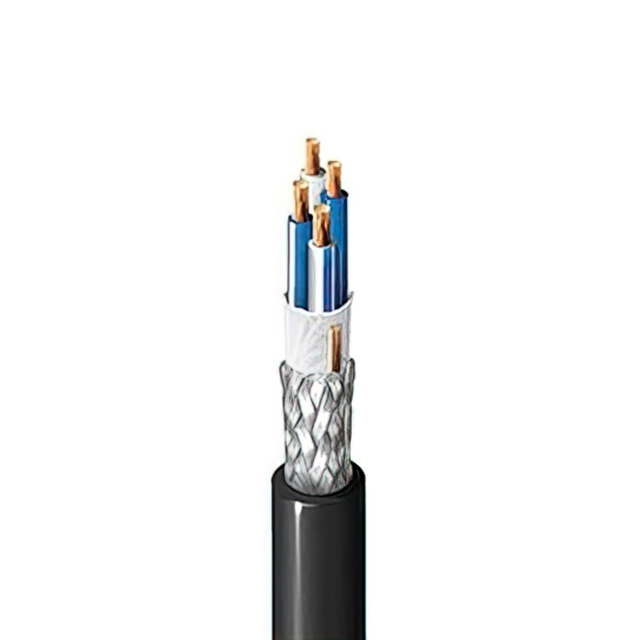

1172A U901000

Active

Belden Inc.

4 #26 PE FBRD PVC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBroadcast and Professional AV Solutions Datasheet

1172A U901000

Active

Belden Inc.

4 #26 PE FBRD PVC

Deep-Dive with AI

DocumentsBroadcast and Professional AV Solutions Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.80

Description

General part information

1172A Series

4 Conductor Microphone Cable Gray 26 AWG Braid 1000.0' (304.8m)

Documents

Technical documentation and resources

Broadcast and Professional AV Solutions

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1172A U901000	1172A Series

Cable Type	Microphone	Microphone
Conductor Insulation	Polyethylene (PE)	Polyethylene (PE)
Conductor Material	Copper, Bare	Copper, Bare
Features	Drain Wire	Drain Wire
Jacket (Insulation) Diameter [diameter]	4.83 mm	4.83 mm
Jacket (Insulation) Diameter [diameter]	0.19 in	0.19 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.031 in	0.031 in
Jacket (Insulation) Thickness	0.787 mm	0.787 mm
Jacket Color	Gray	Red, Purple, Blue, Yellow, Black, Gray
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Number of Conductors	4	4
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-20 C	-20 C
Shield Coverage	95 %	95 %
Shield Material	Copper, Tinned	Copper, Tinned
Shield Type	Braid	Braid
Usage	Audio	Audio
Voltage	100 V	100 V
Wire Gauge	26 AWG	26 AWG

1172A Series

4 #26 PE FBRD PVC

Part	Cable Type	Shield Type	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Jacket (Insulation) Material	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Features	Jacket Color	Length	Length	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Conductor Insulation	Wire Gauge	Number of Conductors
Belden Inc. 1172A G7V1000	Microphone	Braid	-20 C	60 °C	Copper, Tinned	Poly-Vinyl Chloride (PVC)	Audio	0.031 in	0.787 mm	Copper, Bare	Drain Wire	Red	1000 ft	304.8 m	95 %	4.83 mm	0.19 in	100 V	Polyethylene (PE)	26 AWG	4
Belden Inc. 1172A G8C1000	Microphone	Braid	-20 C	60 °C	Copper, Tinned	Poly-Vinyl Chloride (PVC)	Audio	0.031 in	0.787 mm	Copper, Bare	Drain Wire	Purple	1000 ft	304.8 m	95 %	4.83 mm	0.19 in	100 V	Polyethylene (PE)	26 AWG	4
Belden Inc. 1172A G7X1000	Microphone	Braid	-20 C	60 °C	Copper, Tinned	Poly-Vinyl Chloride (PVC)	Audio	0.031 in	0.787 mm	Copper, Bare	Drain Wire	Blue	1000 ft	304.8 m	95 %	4.83 mm	0.19 in	100 V	Polyethylene (PE)	26 AWG	4
Belden Inc. 1172A G8M1000	Microphone	Braid	-20 C	60 °C	Copper, Tinned	Poly-Vinyl Chloride (PVC)	Audio	0.031 in	0.787 mm	Copper, Bare	Drain Wire	Yellow	1000 ft	304.8 m	95 %	4.83 mm	0.19 in	100 V	Polyethylene (PE)	26 AWG	4
Belden Inc. 1172A B59N1000	Microphone	Braid	-20 C	60 °C	Copper, Tinned	Poly-Vinyl Chloride (PVC)	Audio	0.031 in	0.787 mm	Copper, Bare	Drain Wire	Black	1000 ft	304.8 m	95 %	4.83 mm	0.19 in	100 V	Polyethylene (PE)	26 AWG	4
Belden Inc. 1172A U901000	Microphone	Braid	-20 C	60 °C	Copper, Tinned	Poly-Vinyl Chloride (PVC)	Audio	0.031 in	0.787 mm	Copper, Bare	Drain Wire	Gray	1000 ft	304.8 m	95 %	4.83 mm	0.19 in	100 V	Polyethylene (PE)	26 AWG	4
