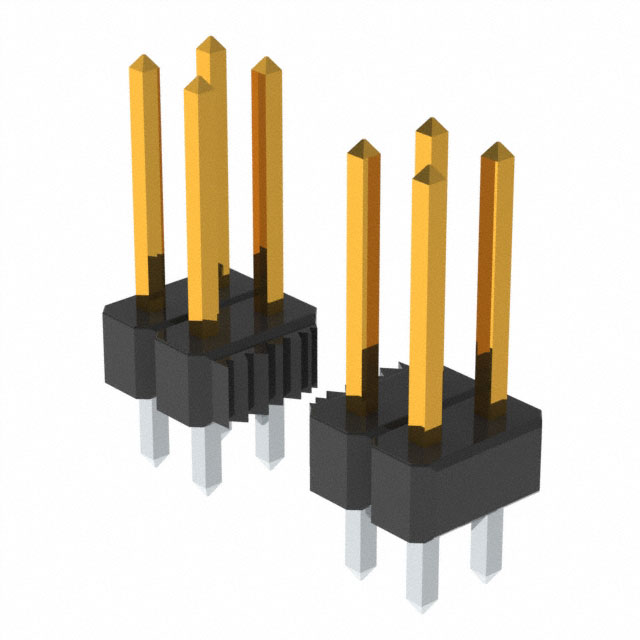

PBC21DFAN

Active

Sullins Connector Solutions

CONN HEADER VERT 42POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PBC21DFAN

Active

Sullins Connector Solutions

CONN HEADER VERT 42POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBC21DFAN

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	42
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	0.538 "
Overall Contact Length	13.67 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PBC21 Series

Part	Contact Finish - Mating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Termination	Style	Shrouding	Contact Finish - Post	Material Flammability Rating	Number of Rows	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Insulation Color	Number of Positions Loaded	Number of Positions	Contact Length - Mating [x]	Contact Length - Mating	Contact Type	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Overall Contact Length	Contact Length - Mating [x]
Sullins Connector Solutions PBC21DACN	Gold	Breakaway Header	125 °C	-65 ░C	Square	Solder	Board to Board Cable	Unshrouded	Tin	UL94 V-0	2	3 A	0.1 in	2.54 mm	16.51 mm	0.65 in	0.1 in	2.54 mm	0.32 in	8.13 mm	Phosphor Bronze	Polybutylene Terephthalate (PBT)	10 çin	0.25 çm	Through Hole	Black	All	42	0.23 in	5.84 mm	Male Pin	Push-Pull	2.54 mm	0.1 in	2.54 µm	100 µin
Sullins Connector Solutions PBC21SAEN	Gold	Breakaway Header	125 °C	-65 ░C	Square	Solder	Board to Board Cable	Unshrouded	Tin	UL94 V-0	1	3 A	0.1 in	2.54 mm		21.59 mm	0.1 in	2.54 mm			Phosphor Bronze	Polybutylene Terephthalate (PBT)	10 çin	0.25 çm	Through Hole	Black	All	21	0.23 in	5.84 mm	Male Pin	Push-Pull			2.54 µm	100 µin	13.21 mm	0.52 "	0.85 in
Sullins Connector Solutions PBC21DFAN	Gold	Breakaway Header	125 °C	-65 ░C	Square	Solder	Board to Board Cable	Unshrouded	Tin	UL94 V-0	2	3 A	0.1 in	2.54 mm		13.67 mm	0.1 in	2.54 mm	0.12 in	3.05 mm	Phosphor Bronze	Polybutylene Terephthalate (PBT)	10 çin	0.25 çm	Through Hole	Black	All	42	0.318 "		Male Pin	Push-Pull	2.54 mm	0.1 in	2.54 µm	100 µin			0.538 "	8.08 mm
Sullins Connector Solutions PBC21SFDN	Gold	Breakaway Header	125 °C	-65 ░C	Square	Solder	Board to Board Cable	Unshrouded	Tin	UL94 V-0	1	3 A	0.1 in	2.54 mm		21.29 mm	0.1 in	2.54 mm	0.42 in	10.67 mm	Phosphor Bronze	Polybutylene Terephthalate (PBT)	10 çin	0.25 çm	Through Hole	Black	All	21	0.318 "		Male Pin	Push-Pull			2.54 µm	100 µin			0.838 in	8.08 mm
Sullins Connector Solutions PBC21DFEN	Gold	Breakaway Header	125 °C	-65 ░C	Square	Solder	Board to Board Cable	Unshrouded	Tin	UL94 V-0	2	3 A	0.1 in	2.54 mm		23.83 mm	0.1 in	2.54 mm			Phosphor Bronze	Polybutylene Terephthalate (PBT)	10 çin	0.25 çm	Through Hole	Black	All	42	0.318 "		Male Pin	Push-Pull	2.54 mm	0.1 in	2.54 µm	100 µin	13.21 mm	0.52 "	0.938 in	8.08 mm
Sullins Connector Solutions PBC21SADN	Gold	Breakaway Header	125 °C	-65 ░C	Square	Solder	Board to Board Cable	Unshrouded	Tin	UL94 V-0	1	3 A	0.1 in	2.54 mm		19.05 mm	0.1 in	2.54 mm	0.42 in	10.67 mm	Phosphor Bronze	Polybutylene Terephthalate (PBT)	10 çin	0.25 çm	Through Hole	Black	All	21	0.23 in	5.84 mm	Male Pin	Push-Pull			2.54 µm	100 µin			0.75 in
Sullins Connector Solutions PBC21SFBN	Gold	Breakaway Header	125 °C	-65 ░C	Square	Solder	Board to Board Cable	Unshrouded	Tin	UL94 V-0	1	3 A	0.1 in	2.54 mm		16.21 mm	0.1 in	2.54 mm			Phosphor Bronze	Polybutylene Terephthalate (PBT)	10 çin	0.25 çm	Through Hole	Black	All	21	0.318 "		Male Pin	Push-Pull			2.54 µm	100 µin	5.58 mm	0.22 in	0.638 in	8.08 mm
Sullins Connector Solutions PBC21SBCN	Gold	Breakaway Header	125 °C	-65 ░C	Square	Solder	Board to Board Cable	Unshrouded	Tin	UL94 V-0	1	3 A	0.1 in	2.54 mm			0.14 in	3.56 mm	0.3 "	7.62 mm	Phosphor Bronze	Polybutylene Terephthalate (PBT)	10 çin	0.25 çm	Through Hole Right Angle	Black	All	21	0.23 in	5.84 mm	Male Pin	Push-Pull			2.54 µm	100 µin
Sullins Connector Solutions PBC21SBAN	Gold	Breakaway Header	125 °C	-65 ░C	Square	Solder	Board to Board Cable	Unshrouded	Tin	UL94 V-0	1	3 A	0.1 in	2.54 mm			0.14 in	3.56 mm			Phosphor Bronze	Polybutylene Terephthalate (PBT)	10 çin	0.25 çm	Through Hole Right Angle	Black	All	21	0.23 in	5.84 mm	Male Pin	Push-Pull			2.54 µm	100 µin	2.54 mm	0.1 in
Sullins Connector Solutions PBC21DAEN	Gold	Breakaway Header	125 °C	-65 ░C	Square	Solder	Board to Board Cable	Unshrouded	Tin	UL94 V-0	2	3 A	0.1 in	2.54 mm		21.59 mm	0.1 in	2.54 mm			Phosphor Bronze	Polybutylene Terephthalate (PBT)	10 çin	0.25 çm	Through Hole	Black	All	42	0.23 in	5.84 mm	Male Pin	Push-Pull	2.54 mm	0.1 in	2.54 µm	100 µin	13.21 mm	0.52 "	0.85 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.33
		10	$ 2.03
		100	$ 1.81
		500	$ 1.51
		1000	$ 1.30
		5000	$ 1.23

Description

General part information

PBC21 Series

Connector Header Through Hole 42 position 0.100" (2.54mm)
