C14610R0065068

Active

Amphenol Tuchel Industrial

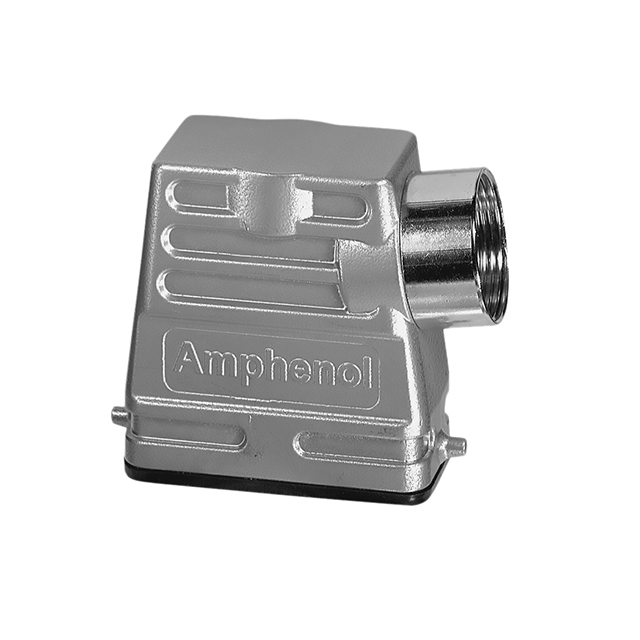

CONN HOOD SIDE ENTRY SZE6 M32

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZE6 M32

Technical Specifications

Parameters and characteristics for this part

Specification	C14610R0065068

Connector Type	Hood
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	60 mm
Size / Dimension [x]	2.362 in
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	70 mm
Size / Dimension [z]	2.756 in
Style	Side Entry
Thread Size	M32

Part	Lock Location	Thread Size	Style	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Connector Type
Amphenol Tuchel Industrial C14610R0065068	Locking Clip (1) on Base Bottom	M32	Side Entry	60 mm	70 mm	2.362 in	1.693 in	2.756 in	43 mm	IP65 - Dust Tight Water Resistant	100 °C	-40 °C	Aluminum Die Cast	Hood
Amphenol Tuchel Industrial C14610R0066568	Locking Clip (1) on Base Bottom	M25	Top Entry	60 mm	70 mm	2.362 in	1.693 in	2.756 in	43 mm	IP65 - Dust Tight Water Resistant	100 °C	-40 °C	Aluminum Die Cast	Hood
Amphenol Tuchel Industrial C14610R0066068	Locking Clip (1) on Base Bottom	M32	Top Entry	60 mm	70 mm	2.362 in	1.693 in	2.756 in	43 mm	IP65 - Dust Tight Water Resistant	100 °C	-40 °C	Aluminum Die Cast	Hood

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	45	$ 17.68

General part information

Hood Connector Side Entry M32 E6 IP65 - Dust Tight, Water Resistant
