307-037-547-168

Active

EDAC Inc.

CONN EDGE SGL FMALE 37POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

307-037-547-168

Active

EDAC Inc.

CONN EDGE SGL FMALE 37POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-037-547-168

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Guides
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	37
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

307-037 Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Number of Rows	Contact Type	Color	Read Out	Number of Positions	Flange Feature	Card Type	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Mounting Type	Gender	Features	Termination	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Pitch [x]	Pitch [x]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 307-037-505-178	-40 °C	105 ░C	Gold	1	Semi Bellows	Green	Single	37	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Single Edge	1	10 Áin	0.25 Ám	Copper Alloy	Through Hole	Female	Card Guides	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	0.156 in	3.96 mm	37	37	37
EDAC Inc. 307-037-557-102	-40 °C	105 ░C	Gold	2	Semi Bellows	Green	Dual	74	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	1	10 Áin	0.25 Ám	Copper Alloy	Through Hole Right Angle	Female		Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	0.156 in	3.96 mm	37	37	37	3.25 mm	0.128 "
EDAC Inc. 307-037-453-104	-40 °C	105 ░C	Tin	2	Semi Bellows	Green	Dual	74	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	1			Copper Alloy	Through Hole Right Angle	Female		Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	0.156 in	3.96 mm	37	37	37	3.96 mm	0.156 in
EDAC Inc. 307-037-457-168	-40 °C	105 ░C	Tin	2	Semi Bellows	Green	Dual	74	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	1			Copper Alloy	Through Hole Right Angle	Female	Card Guides	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	0.156 in	3.96 mm	37	37	37
EDAC Inc. 307-037-547-168	-40 °C	105 ░C	Gold	1	Semi Bellows	Green	Single	37	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Single Edge	1	10 Áin	0.25 Ám	Copper Alloy	Through Hole	Female	Card Guides	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	0.156 in	3.96 mm	37	37	37
EDAC Inc. 307-037-501-178	-40 °C	105 ░C	Gold	2	Semi Bellows	Green	Dual	74	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	1	10 Áin	0.25 Ám	Copper Alloy	Through Hole	Female	Card Guides	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	0.156 in	3.96 mm	37	37	37
EDAC Inc. 307-037-454-104	-40 °C	105 ░C	Tin	2	Semi Bellows	Green	Dual	74	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	1			Copper Alloy	Surface Mount	Female		Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	0.156 in	3.96 mm	37	37	37	3.96 mm	0.156 in
EDAC Inc. 307-037-459-108	-40 °C	105 ░C	Tin	1	Semi Bellows	Green	Single	37	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Single Edge	1			Copper Alloy	Through Hole Right Angle	Female		Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	0.156 in	3.96 mm	37	37	37
EDAC Inc. 307-037-545-168	-40 °C	105 ░C	Gold	1	Semi Bellows	Green	Single	37	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Single Edge	1	10 Áin	0.25 Ám	Copper Alloy	Through Hole	Female	Card Guides	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	0.156 in	3.96 mm	37	37	37
EDAC Inc. 307-037-501-158	-40 °C	105 ░C	Gold	2	Semi Bellows	Green	Dual	74	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	1	10 Áin	0.25 Ám	Copper Alloy	Through Hole	Female	Card Guides	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	0.156 in	3.96 mm	37	37	37

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 22.07

Description

General part information

307-037 Series

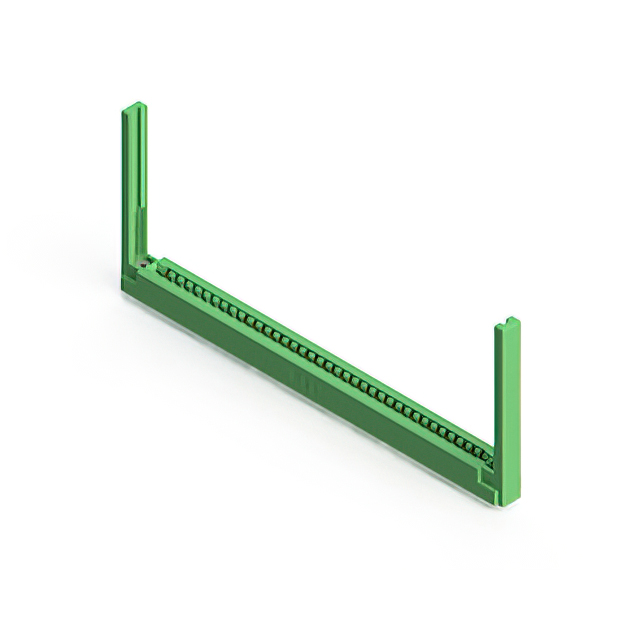

37 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
