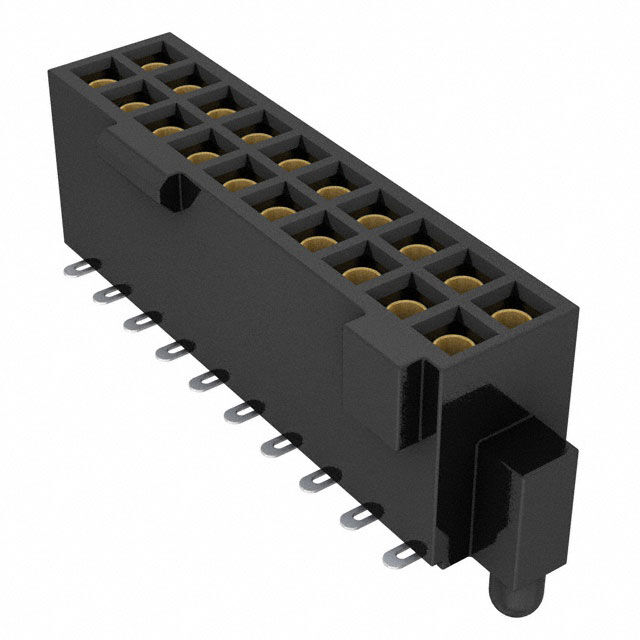

SFML-110-02-L-D-A

Active

Samtec Inc.

CONN RCPT 20POS 0.05 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSFML-105-01-L-D Datasheet 02 SFML Series Other Related Documents 01 +1

SFML-110-02-L-D-A

Active

Samtec Inc.

CONN RCPT 20POS 0.05 GOLD SMD

Deep-Dive with AI

DocumentsSFML-105-01-L-D Datasheet 02 SFML Series Other Related Documents 01 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFML-110-02-L-D-A

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3.2 A
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Black
Insulation Height	0.185 in
Insulation Height	4.7 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

SFML-110 Series

Part	Fastening Type	Mounting Type	Style	Pitch - Mating	Pitch - Mating	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Current Rating (Amps)	Voltage Rating	Insulation Material	Number of Positions Loaded	Contact Finish - Post	Contact Type	Number of Positions	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Connector Type	Material Flammability Rating	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features
Samtec Inc. SFML-110-L1-S-D-LC	Locking Ramp	Through Hole	Board to Board Cable	0.05 in	1.27 mm	2	-55 °C	125 °C	Gold	3.2 A	250 VAC	Liquid Crystal Polymer (LCP)	All	Tin	Female Socket	20	Black	0.05 in	1.27 mm	4.57 mm	0.18 "	Square	0.12 in	3.05 mm	Receptacle	UL94 V-0	Solder	30 Áin	0.76 Ám
Samtec Inc. SFML-110-02-L-D-P-TR	Locking Ramp	Surface Mount	Board to Board Cable	0.05 in	1.27 mm	2	-55 °C	125 °C	Gold	3.2 A	250 VAC	Liquid Crystal Polymer (LCP)	All	Tin	Female Socket	20	Black	0.05 in	1.27 mm	4.7 mm	0.185 in	Square			Receptacle	UL94 V-0	Solder	10 çin	0.25 çm	Pick and Place
Samtec Inc. SFML-110-02-LM-D	Locking Ramp	Surface Mount	Board to Board Cable	0.05 in	1.27 mm	2	-55 °C	125 °C	Gold	3.2 A	250 VAC	Liquid Crystal Polymer (LCP)	All	Tin	Female Socket	20	Black	0.05 in	1.27 mm	4.7 mm	0.185 in	Square			Receptacle	UL94 V-0	Solder	10 çin	0.25 çm
Samtec Inc. SFML-110-T2-L-D-A-K-TR	Locking Ramp	Surface Mount	Board to Board Cable	0.05 in	1.27 mm	2	-55 °C	125 °C	Gold	3.2 A	250 VAC	Liquid Crystal Polymer (LCP)	All	Tin	Female Socket	20	Black	0.05 in	1.27 mm	4.7 mm	0.185 in	Square			Receptacle	UL94 V-0	Solder	10 çin	0.25 çm	Board Guide Pick and Place
Samtec Inc. SFML-110-02-L-D-A	Locking Ramp	Surface Mount	Board to Board Cable	0.05 in	1.27 mm	2	-55 °C	125 °C	Gold	3.2 A	250 VAC	Liquid Crystal Polymer (LCP)	All	Tin	Female Socket	20	Black	0.05 in	1.27 mm	4.7 mm	0.185 in	Square			Receptacle	UL94 V-0	Solder	10 çin	0.25 çm	Board Guide
Samtec Inc. SFML-110-02-S-D-A-K	Locking Ramp	Surface Mount	Board to Board Cable	0.05 in	1.27 mm	2	-55 °C	125 °C	Gold	3.2 A	250 VAC	Liquid Crystal Polymer (LCP)	All	Tin	Female Socket	20	Black	0.05 in	1.27 mm	4.7 mm	0.185 in	Square			Receptacle	UL94 V-0	Solder	30 Áin	0.76 Ám	Board Guide Pick and Place
Samtec Inc. SFML-110-02-S-D-SN	Locking Ramp	Surface Mount	Board to Board Cable	0.05 in	1.27 mm	2	-55 °C	125 °C	Gold	3.2 A	250 VAC	Liquid Crystal Polymer (LCP)	All	Tin	Female Socket	20	Black	0.05 in	1.27 mm	4.7 mm	0.185 in	Square			Receptacle	UL94 V-0	Solder	30 Áin	0.76 Ám	Solder Retention
Samtec Inc. SFML-110-01-F-D	Locking Ramp	Through Hole	Board to Board Cable	0.05 in	1.27 mm	2	-55 °C	125 °C	Gold	3.2 A	250 VAC	Liquid Crystal Polymer (LCP)	All	Tin	Female Socket	20	Black	0.05 in	1.27 mm	4.57 mm	0.18 "	Square	0.12 in	3.05 mm	Receptacle	UL94 V-0	Solder	3 µin	0.076 µm
Samtec Inc. SFML-110-L2-S-D-A-K-TR	Locking Ramp	Surface Mount	Board to Board Cable	0.05 in	1.27 mm	2	-55 °C	125 °C	Gold	3.2 A	250 VAC	Liquid Crystal Polymer (LCP)	All	Tin	Female Socket	20	Black	0.05 in	1.27 mm	4.7 mm	0.185 in	Square			Receptacle	UL94 V-0	Solder	30 Áin	0.76 Ám	Board Guide Pick and Place
Samtec Inc. SFML-110-02-S-D-A	Locking Ramp	Surface Mount	Board to Board Cable	0.05 in	1.27 mm	2	-55 °C	125 °C	Gold	3.2 A	250 VAC	Liquid Crystal Polymer (LCP)	All	Tin	Female Socket	20	Black	0.05 in	1.27 mm	4.7 mm	0.185 in	Square			Receptacle	UL94 V-0	Solder	30 Áin	0.76 Ám	Board Guide
