IPRF-B-J20C0N02-H-5

Active

Sure-Seal

BNC BULKHEAD CRIMP JACK

Search across all available documentation for this part.

Active

Sure-Seal

BNC BULKHEAD CRIMP JACK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IPRF-B-J20C0N02-H-5	IPRF Series

Body Finish	-	Gold
Body Material	-	Brass
Cable Group	-	URM95, Belden 7805A, 188, 316, RG-174, LMR-100
Center Contact Material	-	Beryllium Copper, Brass
Center Contact Plating	-	Gold
Connector Style	BNC	N Type, MMCX, BNC, SMA
Connector Type	Female Socket, Jack	Female Socket, Jack, Male Pin, Plug
Contact Termination	Crimp	Solder, Crimp
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Fastening Type	-	Snap-On, Bayonet Lock
Frequency - Max	-	12 - 6000 MHz
Housing Color	-	Gold
Impedance	-	50 - 75 Ohms
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	-	Through Hole, Right Angle, Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature	-	155 - 165 °C
Operating Temperature	-	-65 - -55 °C
Shield Termination	-	Solder, Crimp
Voltage Rating	-	170 - 500 V

N TYPE BULKHEAD JACK

Part	Number of Ports	Ingress Protection	Connector Type	Mounting Feature	Connector Style	Mounting Type	Frequency - Max [Max]	Housing Color	Body Material	Center Contact Material	Contact Termination	Center Contact Plating	Fastening Type	Shield Termination	Body Finish	Impedance	Dielectric Material	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Cable Group
Sure-Seal IPRF-N-J24A0N01-M-5	1	IP68 - Dust Tight, Waterproof	Female Socket, Jack	Bulkhead - Front Side Nut	N Type
Sure-Seal IPRF-MM-J11A0G29	1	IP68 - Dust Tight, Waterproof	Female Socket, Jack		MMCX	Through Hole, Right Angle	6000 MHz	Gold	Brass	Beryllium Copper	Solder	Gold	Snap-On	Solder	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	170 V	155 °C	-55 °C
Sure-Seal IPRF-B-J20C0N02-H-5	1	IP68 - Dust Tight, Waterproof	Female Socket, Jack	Bulkhead - Front Side Nut	BNC						Crimp
Sure-Seal IPRF-UB-J03P0G23-R0	1	IP68 - Dust Tight, Waterproof	Female Socket, Jack	Bulkhead - Front Side Nut	BNC		12 GHz	Gold	Brass	Beryllium Copper	Solder	Gold	Bayonet Lock	Solder	Gold	75 Ohms	Polytetrafluoroethylene (PTFE)	500 V	165 °C	-65 ░C
Sure-Seal IPRF-S-P01P0G27-M	1	IP68 - Dust Tight, Waterproof	Male Pin, Plug		SMA	Free Hanging (In-Line)	12.4 GHz	Gold	Brass	Brass	Crimp	Gold		Crimp	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	500 V	165 °C	-65 ░C	188, 316, Belden 7805A, LMR-100, RG-174, URM95
Sure-Seal IPRF-HB-J18P0N01-AT-R	1	IP68 - Dust Tight, Waterproof	Female Socket, Jack		BNC		12 GHz				Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

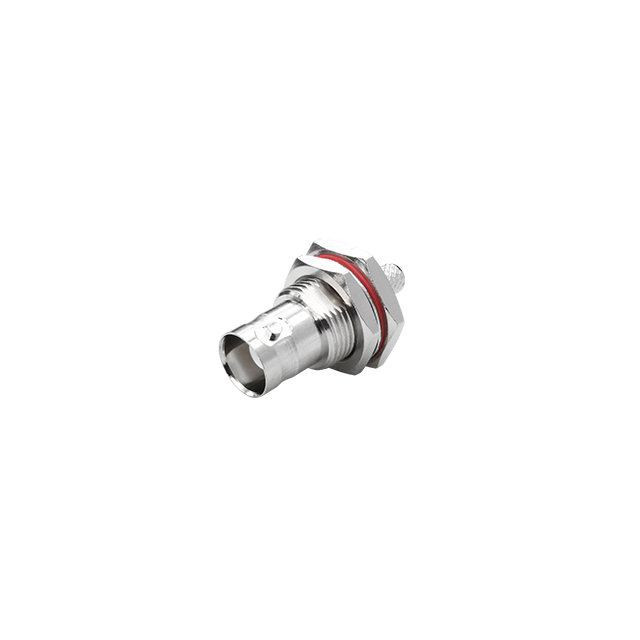

BNC Connector Jack, Female Socket Panel Mount Crimp
