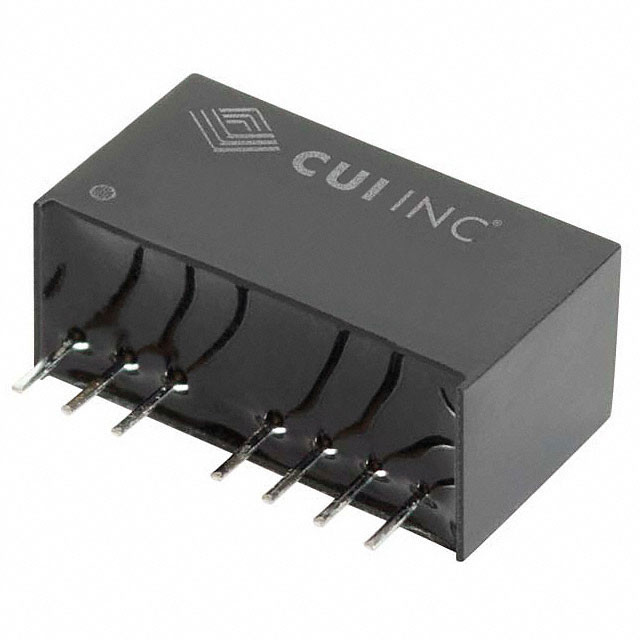

PQMC3-D12-S9-S
CUI Inc.
DC DC CONVERTER 9V 3W
Deep-Dive with AI
Search across all available documentation for this part.
PQMC3-D12-S9-S
CUI Inc.
DC DC CONVERTER 9V 3W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PQMC3-D12-S9-S |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | EN |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 333 mA |
| Efficiency | 79 % |
| Features | Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-SIP Module |
| Package / Case | 7 Leads |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 22 mm |
| Size / Dimension [x] | 0.87 in |
| Size / Dimension [y] | 0.37 " |
| Size / Dimension [y] | 9.5 mm |
| Size / Dimension [z] | 0.47 " |
| Size / Dimension [z] | 12 mm |
| Standard Number | 55024, 55032 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 9 V |
PQMC3 Series
| Part | Power (Watts) | Voltage - Input (Min) [Min] | Package / Case | Package / Case | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Output 1 | Mounting Type | Approval Agency | Efficiency | Number of Outputs | Type | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Standard Number | Features | Applications | Control Features | Voltage - Isolation | Voltage - Output 2 | Current - Output (Max) | Current - Output (Max) | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CUI Inc. | 3 W | 9 V | 8-SIP Module | 7 Leads | 0.47 " | 22 mm | 0.37 " | 0.87 in | 9.5 mm | 12 mm | 9 V | Through Hole | EN | 79 % | 1 | Isolated Module | 333 mA | 18 V | -40 °C | 105 ░C | 55024 55032 | Remote On/Off SCP | ITE (Commercial) | Active Low Enable | 1.5 kV | ||||
CUI Inc. | 3 W | 18 V | 8-SIP Module | 7 Leads | 0.47 " | 22 mm | 0.37 " | 0.87 in | 9.5 mm | 12 mm | 9 V | Through Hole | EN | 83 % | 1 | Isolated Module | 333 mA | 36 V | -40 °C | 105 ░C | 55024 55032 | Remote On/Off SCP | ITE (Commercial) | Active Low Enable | 1.5 kV | ||||
CUI Inc. | 3 W | 18 V | 8-SIP Module | 7 Leads | 0.47 " | 22 mm | 0.37 " | 0.87 in | 9.5 mm | 12 mm | 15 V | Through Hole | EN | 81 % | 1 | Isolated Module | 200 mA | 36 V | -40 °C | 105 ░C | 55024 55032 | OCP SCP | ITE (Commercial) | 1.5 kV | |||||
CUI Inc. | 3 W | 18 V | 8-SIP Module | 7 Leads | 0.47 " | 22 mm | 0.37 " | 0.87 in | 9.5 mm | 12 mm | 5 V | Through Hole | EN | 78 % | 1 | Isolated Module | 600 mA | 36 V | -40 °C | 105 ░C | 55024 55032 | OCP SCP | ITE (Commercial) | 1.5 kV | |||||
CUI Inc. | 3 W | 4.5 V | 8-SIP Module | 7 Leads | 0.47 " | 22 mm | 0.37 " | 0.87 in | 9.5 mm | 12 mm | 15 V | Through Hole | EN | 71 % | 2 | Isolated Module | 9 V | -40 °C | 105 ░C | 55024 55032 | OCP SCP | ITE (Commercial) | 1.5 kV | -15 V | 83 mA | 83 mA | |||
CUI Inc. | 3 W | 18 V | 8-SIP Module | 7 Leads | 0.47 " | 22 mm | 0.37 " | 0.87 in | 9.5 mm | 12 mm | 12 V | Through Hole | EN | 80 % | 2 | Isolated Module | 36 V | -40 °C | 105 ░C | 55024 55032 | OCP SCP | ITE (Commercial) | 1.5 kV | -12 V | 125 mA | 125 mA | |||
CUI Inc. | 3 W | 18 V | 8-SIP Module | 7 Leads | 0.47 " | 22 mm | 0.37 " | 0.87 in | 9.5 mm | 12 mm | 9 V | Through Hole | EN | 81 % | 2 | Isolated Module | 36 V | -40 °C | 105 ░C | 55024 55032 | Remote On/Off SCP | ITE (Commercial) | Active Low Enable | 1.5 kV | -9 V | 167 mA | 167 mA | ||
CUI Inc. | 3 W | 9 V | 8-SIP Module | 7 Leads | 0.47 " | 22 mm | 0.37 " | 0.87 in | 9.5 mm | 12 mm | 12 V | Through Hole | EN | 79 % | 2 | Isolated Module | 18 V | -40 °C | 105 ░C | 55024 55032 | OCP SCP | ITE (Commercial) | 1.5 kV | -12 V | 125 mA | 125 mA | |||
CUI Inc. | 3 W | 9 V | 8-SIP Module | 7 Leads | 0.47 " | 22 mm | 0.37 " | 0.87 in | 9.5 mm | 12 mm | 15 V | Through Hole | EN | 80 % | 2 | Isolated Module | 18 V | -40 °C | 105 ░C | 55024 55032 | OCP SCP | ITE (Commercial) | 1.5 kV | -15 V | 100 mA | 100 mA | |||
CUI Inc. | 3 W | 4.5 V | 8-SIP Module | 7 Leads | 0.47 " | 22 mm | 0.37 " | 0.87 in | 9.5 mm | 12 mm | 5 V | Through Hole | EN | 69 % | 1 | Isolated Module | 500 mA | 9 V | -40 °C | 105 ░C | 55024 55032 | OCP SCP | ITE (Commercial) | 1.5 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 22 | $ 13.39 | |
Description
General part information
PQMC3 Series
Isolated Module DC DC Converter 1 Output 9V 333mA 9V - 18V Input
