1SNK705911R0000

Active

TE Connectivity ENTRELEC

AUT SNK ACCESSORIES

Search across all available documentation for this part.

Active

TE Connectivity ENTRELEC

AUT SNK ACCESSORIES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1SNK705911R0000	1SNK7 Series

Color	Gray	Gray, Green, Yellow, Red
Current - IEC	-	1 - 41 A
Current - UL	-	1 - 50 A
Features	-	Diode
For Use With/Related Products	SNK, ZK Series	SNK, ZK Series
Material - Insulation	-	Nylon, Polyamide (PA)
Material Flammability Rating	-	UL94 V-0
Number of Levels	-	3
Number of Levels	-	Connected
Number of Levels	-	1 - 3
Number of Positions	-	2 - 6
Stripping Length	-	11 - 12.5 mm
Terminal - Width	-	5.2 - 8 mm
Termination Style	-	Push In, Spring
Type	End Plate	Feed Through, Ground, Earth, End Plate
Voltage - IEC	-	1 - 630 V
Voltage - UL	-	300 V
Voltage - UL	-	600 V
Wire Gauge or Range - AWG	-	8 - 12 AWG
Wire Gauge or Range - AWG	-	24 - 26 AWG
Wire Gauge or Range - mm˛	-	0.2 - 0.5 mm˛
Wire Gauge or Range - mm˛	-	4 - 6 mm˛
Wire Gauge or Range - mm²	-	0.2 - 0.5 mm²
Wire Gauge or Range - mm²	-	4 - 10 mm²

AUT SNK PI-SPRING

Part	Current - IEC	Termination Style	Color	Number of Positions	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Voltage - UL [custom]	Material Flammability Rating	Current - UL	Material - Insulation	Voltage - IEC	Terminal - Width [y]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Number of Levels [custom]	Type	Stripping Length	Number of Levels	Number of Levels	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Voltage - UL	For Use With/Related Products	Features
TE Connectivity ENTRELEC 1SNK705510R0000	22 A	Push In, Spring	Gray	6	0.2 mm²	4 mm²	300 V	UL94 V-0	20 A	Nylon, Polyamide (PA)	500 V	5.2 mm	12 AWG	26 AWG	3	Feed Through	11 mm
TE Connectivity ENTRELEC 1SNK705550R0000		Push In, Spring	Green, Yellow	6	0.2 mm²	4 mm²		UL94 V-0		Nylon, Polyamide (PA)		5.2 mm	12 AWG	26 AWG		Ground, Earth	11 mm	Connected	3
TE Connectivity ENTRELEC 1SNK705031R0000	24 A	Push In, Spring						UL94 V-0	20 A	Nylon, Polyamide (PA)	1 kV	5.2 mm	12 AWG	26 AWG		Feed Through	11 mm		1	0.2 mm˛	4 mm˛	600 V
TE Connectivity ENTRELEC 1SNK705911R0000			Gray													End Plate							SNK, ZK Series
TE Connectivity ENTRELEC 1SNK705710R0000	1 A	Push In, Spring	Gray	4	0.2 mm²	4 mm²	300 V	UL94 V-0	1 A	Nylon, Polyamide (PA)	630 V	5.2 mm	12 AWG	26 AWG		Feed Through	11 mm		1					Diode
TE Connectivity ENTRELEC 1SNK708060R0000	41 A	Push In, Spring	Yellow	2	0.5 mm²	10 mm²		UL94 V-0	50 A	Nylon, Polyamide (PA)	1 kV	8 mm	8 AWG	24 AWG		Feed Through	12.5 mm		1			600 V
TE Connectivity ENTRELEC 1SNK706062R0000	32 A	Push In, Spring	Red	2				UL94 V-0	30 A	Nylon, Polyamide (PA)	1 kV	6 mm	10 AWG	26 AWG		Feed Through	12.5 mm		1	0.5 mm˛	6 mm˛	600 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

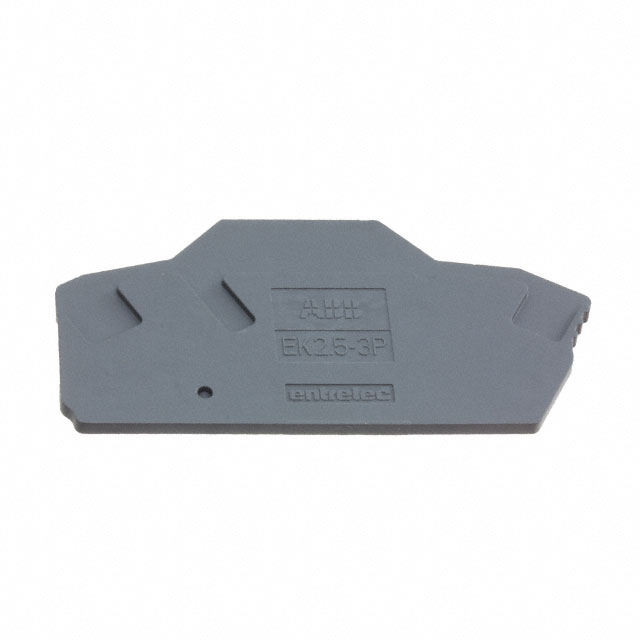

Connector End Plate For SNK, ZK Series
