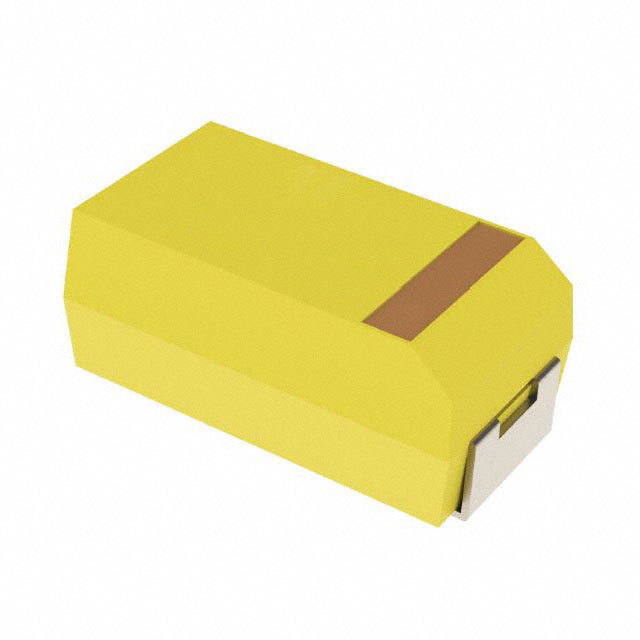

T491X476M035AHAUTO

Active

KEMET

TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 35V, 20% +TOL, 20% -TOL, 47UF, SURFACE MOUNT, 2917, CHIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsT491X476M035AHAUTO Datasheet

T491X476M035AHAUTO

Active

KEMET

TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 35V, 20% +TOL, 20% -TOL, 47UF, SURFACE MOUNT, 2917, CHIP

Deep-Dive with AI

DocumentsT491X476M035AHAUTO Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T491X476M035AHAUTO

Capacitance	47 µF
ESR (Equivalent Series Resistance)	600 mOhm
Features	Automotive
Grade	Automotive
Height - Seated (Max) [Max]	0.169 "
Height - Seated (Max) [Max]	4.3 mm
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	X
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	7343 Metric
Package / Case	2917
Qualification	AEC-Q200
Ratings	AEC-Q200
Size / Dimension [x]	0.287 "
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	4.3 mm
Size / Dimension [y]	0.169 "
Tolerance	20 %
Type	Molded
Voltage - Rated	35 V

T491X Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Mounting Type	Tolerance	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Package / Case	Manufacturer Size Code	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Lifetime @ Temp.	Capacitance	Features	ESR (Equivalent Series Resistance)	Ratings	Grade	Qualification
KEMET T491X156K050AH	-55 °C	125 °C	50 VDC	Surface Mount	10 %	Molded	0.169 "	4.3 mm	7343 Metric	2917	X	4.3 mm	0.287 "	7.3 mm	0.169 "	2000 Hrs	15 µF	General Purpose	700 mOhm
KEMET T491X227K010AT4053	-55 °C	125 °C	10 V	Surface Mount	10 %	Molded	0.169 "	4.3 mm	7343 Metric	2917	X	4.3 mm	0.287 "	7.3 mm	0.169 "	2000 Hrs	220 µF	General Purpose	500 mOhms
KEMET T491X476M035AHAUTO	-55 °C	125 °C	35 V	Surface Mount	20 %	Molded	0.169 "	4.3 mm	7343 Metric	2917	X	4.3 mm	0.287 "	7.3 mm	0.169 "	2000 Hrs	47 µF	Automotive	600 mOhm	AEC-Q200	Automotive	AEC-Q200
KEMET T491X336K035AT7280	-55 °C	125 °C	35 V	Surface Mount	10 %	Molded	0.169 "	4.3 mm	7343 Metric	2917	X	4.3 mm	0.287 "	7.3 mm	0.169 "	2000 Hrs	33 ÁF	General Purpose	600 mOhm
KEMET T491X476K035AH7280	-55 °C	125 °C	35 V	Surface Mount	10 %	Molded	0.169 "	4.3 mm	7343 Metric	2917	X	4.3 mm	0.287 "	7.3 mm	0.169 "	2000 Hrs	47 µF	General Purpose	600 mOhm
KEMET T491X476M035AT	-55 °C	125 °C	35 V	Surface Mount	20 %	Molded	0.169 "	4.3 mm	7343 Metric	2917	X	4.3 mm	0.287 "	7.3 mm	0.169 "	2000 Hrs	47 µF	General Purpose	600 mOhm
KEMET T491X106M050AT2478	-55 °C	125 °C	50 VDC	Surface Mount	20 %	Molded	0.169 "	4.3 mm	7343 Metric	2917	X	4.3 mm	0.287 "	7.3 mm	0.169 "	2000 Hrs	10 µF	General Purpose	700 mOhm
KEMET T491X226M035AT4153	-55 °C	125 °C	35 V	Surface Mount	20 %	Molded	0.169 "	4.3 mm	7343 Metric	2917	X	4.3 mm	0.287 "	7.3 mm	0.169 "	2000 Hrs	22 µF	General Purpose	700 mOhm
KEMET T491X337M006AT	-55 °C	125 °C	6.3 V	Surface Mount	20 %	Molded	0.169 "	4.3 mm	7343 Metric	2917	X	4.3 mm	0.287 "	7.3 mm	0.169 "	2000 Hrs	330 µF	General Purpose	400 mOhms
KEMET T491X476M035AT48182478	-55 °C	125 °C	35 V	Surface Mount	20 %	Molded	0.169 "	4.3 mm	7343 Metric	2917	X	4.3 mm	0.287 "	7.3 mm	0.169 "	2000 Hrs	47 µF	General Purpose	600 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 2.06

Description

General part information

T491X Series

47 µF Molded Tantalum Capacitors 35 V 2917 (7343 Metric) 600mOhm
