110-41-316-41-001000

Active

Mill-Max Manufacturing Corp.

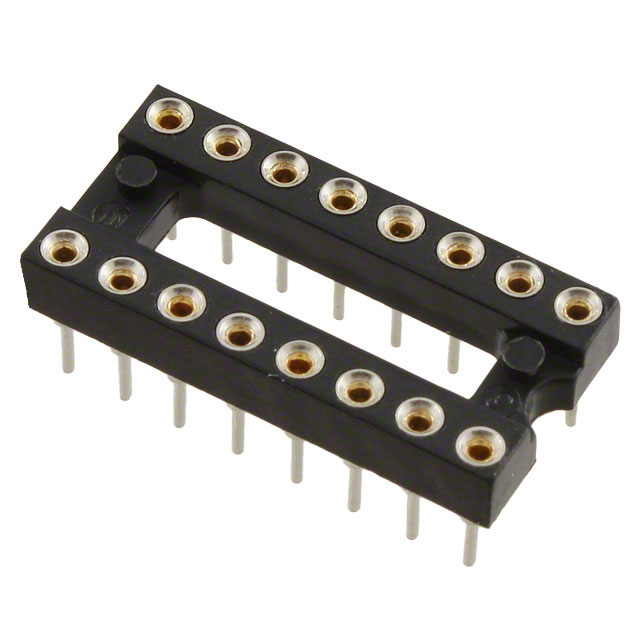

CONN IC DIP SOCKET 16POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

110-41-316-41-001000

Active

Mill-Max Manufacturing Corp.

CONN IC DIP SOCKET 16POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	110-41-316-41-001000

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Current Rating (Amps)	3 A
Features	Open Frame
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	16
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	0.3 "
Type	7.62 mm
Type	DIP

110-41 Series

Part	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Housing Material	Number of Positions or Pins (Grid)	Operating Temperature [Min]	Operating Temperature [Max]	Termination Post Length	Termination Post Length	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Pitch - Post	Pitch - Post	Current Rating (Amps)	Contact Resistance	Contact Material - Post	Contact Material - Mating	Features	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Finish - Post	Type	Type	Type	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 110-41-424-41-105000	Solder	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	24	-55 °C	125 °C	3.18 mm	0.125 in	0.1 in	2.54 mm	UL94 V-0	2.54 mm	0.1 in	3 A	10 mOhm	Brass Alloy	Beryllium Copper	Open Frame	Surface Mount	10 çin	0.25 çm	Gold	Tin	0.4 in	10.16 mm	DIP
Mill-Max Manufacturing Corp. 110-41-322-41-105000	Solder	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	22	-55 °C	125 °C	3.18 mm	0.125 in	0.1 in	2.54 mm	UL94 V-0	2.54 mm	0.1 in	3 A	10 mOhm	Brass Alloy	Beryllium Copper	Open Frame	Surface Mount	10 çin	0.25 çm	Gold	Tin	0.3 "	7.62 mm	DIP
Mill-Max Manufacturing Corp. 110-41-632-41-605000	Solder	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester		-55 °C	125 °C	3.18 mm	0.125 in	0.1 in	2.54 mm	UL94 V-0	2.54 mm	0.1 in	3 A	10 mOhm	Brass Alloy	Beryllium Copper	Open Frame	Through Hole	10 çin	0.25 çm	Gold	Tin	0.6 in	15.24 mm	DIP	2 x 16	32
Mill-Max Manufacturing Corp. 110-41-950-41-001000	Solder	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester		-55 °C	125 °C	3.18 mm	0.125 in	0.1 in	2.54 mm	UL94 V-0	2.54 mm	0.1 in	3 A	10 mOhm	Brass Alloy	Beryllium Copper	Open Frame	Through Hole	10 çin	0.25 çm	Gold	Tin	0.9 in	22.86 mm	DIP			25	2	50
Mill-Max Manufacturing Corp. 110-41-650-41-105000	Solder	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester		-55 °C	125 °C	3.18 mm	0.125 in	0.1 in	2.54 mm	UL94 V-0	2.54 mm	0.1 in	3 A	10 mOhm	Brass Alloy	Beryllium Copper	Open Frame	Surface Mount	10 çin	0.25 çm	Gold	Tin	0.6 in	15.24 mm	DIP			25	2	50
Mill-Max Manufacturing Corp. 110-41-316-41-001000	Solder	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	16	-55 °C	125 °C	3.18 mm	0.125 in	0.1 in	2.54 mm		2.54 mm	0.1 in	3 A		Brass Alloy	Beryllium Copper	Open Frame	Through Hole	10 çin	0.25 çm	Gold	Tin	0.3 "	7.62 mm	DIP
Mill-Max Manufacturing Corp. 110-41-642-61-001000	Solder	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	42	-55 °C	125 °C	3.18 mm	0.125 in	0.1 in	2.54 mm	UL94 V-0	2.54 mm	0.1 in	3 A	10 mOhm	Brass Alloy	Beryllium Copper		Through Hole	10 çin	0.25 çm	Gold	Tin	0.6 in	15.24 mm	DIP
Mill-Max Manufacturing Corp. 110-41-964-41-105000	Solder	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	64	-55 °C	125 °C	3.18 mm	0.125 in	0.1 in	2.54 mm	UL94 V-0	2.54 mm	0.1 in	3 A	10 mOhm	Brass Alloy	Beryllium Copper	Open Frame	Surface Mount	10 çin	0.25 çm	Gold	Tin	0.9 in	22.86 mm	DIP
Mill-Max Manufacturing Corp. 110-41-328-41-001000	Solder	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	28	-55 °C	125 °C	3.18 mm	0.125 in	0.1 in	2.54 mm		2.54 mm	0.1 in	3 A		Brass Alloy	Beryllium Copper	Open Frame	Through Hole	10 çin	0.25 çm	Gold	Tin	0.3 "	7.62 mm	DIP
Mill-Max Manufacturing Corp. 110-41-624-41-105000	Solder	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	24	-55 °C	125 °C	3.18 mm	0.125 in	0.1 in	2.54 mm	UL94 V-0	2.54 mm	0.1 in	3 A	10 mOhm	Brass Alloy	Beryllium Copper	Open Frame	Surface Mount	10 çin	0.25 çm	Gold	Tin	0.6 in	15.24 mm	DIP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.96
		10	$ 1.67
		25	$ 1.56
		50	$ 1.49
		100	$ 1.42
		250	$ 1.33
		500	$ 1.26
		1000	$ 1.20
		2500	$ 1.13

Description

General part information

110-41 Series

16 (2 x 8) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole

Documents

Technical documentation and resources

No documents available
