104652-7
ActiveTE Connectivity AMP Connectors

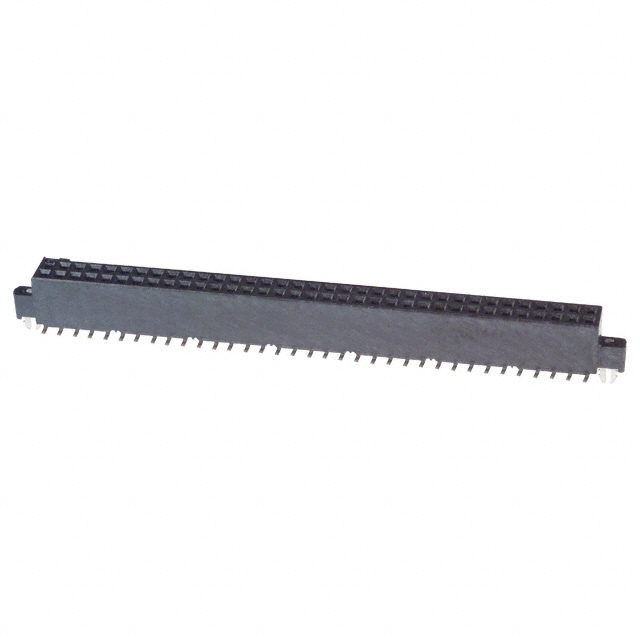

CONN RCPT 70POS 0.05 GOLD SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
104652-7
ActiveTE Connectivity AMP Connectors
CONN RCPT 70POS 0.05 GOLD SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 104652-7 | 104652 Series |
|---|---|---|
| Connector Type | Receptacle | Receptacle |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin-Lead | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 150 Áin | 150 Áin |
| Contact Finish Thickness - Post | 3.81 Ám | 3.81 Ám |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Square | Square |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Black | Black |
| Insulation Height | 0.187 in | 0.187 in |
| Insulation Height | 4.75 mm | 4.75 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Mated Stacking Heights | 6.35 mm, 8.13 mm, 9.91 mm | 6.35 - 9.91 mm |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Positions | 70 | 10 - 100 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.05 in | 0.05 in |
| Pitch - Mating | 1.27 mm | 1.27 mm |
| Row Spacing - Mating | 0.05 in | 0.05 in |
| Row Spacing - Mating | 1.27 mm | 1.27 mm |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 7.06 | |
| 10 | $ 6.16 | |||
| 100 | $ 5.71 | |||
104652 Series
CONN RCPT 40POS 0.05 GOLD SMD
| Part | Number of Positions Loaded | Contact Shape | Mated Stacking Heights | Number of Rows | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating | Contact Type | Contact Material | Row Spacing - Mating | Row Spacing - Mating | Contact Finish - Mating | Connector Type | Fastening Type | Termination | Contact Finish - Post | Insulation Color | Insulation Material | Number of Positions | Mounting Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-104652-4 | All | Square | 6.35 mm, 8.13 mm, 9.91 mm | 2 | 0.187 in | 4.75 mm | -65 ░C | 105 ░C | 30 Áin | 0.76 Ám | 0.05 in | 1.27 mm | Female Socket | Copper Alloy | 0.05 in | 1.27 mm | Gold | Receptacle | Push-Pull | Solder | Tin | Black | Liquid Crystal Polymer (LCP) | 40 | Surface Mount | 150 Áin | 3.81 Ám | Board to Board, Cable |
TE Connectivity AMP Connectors 104652-4 | All | Square | 6.35 mm, 8.13 mm, 9.91 mm | 2 | 0.187 in | 4.75 mm | -65 ░C | 105 ░C | 30 Áin | 0.76 Ám | 0.05 in | 1.27 mm | Female Socket | Copper Alloy | 0.05 in | 1.27 mm | Gold | Receptacle | Push-Pull | Solder | Tin-Lead | Black | Liquid Crystal Polymer (LCP) | 40 | Surface Mount | 150 Áin | 3.81 Ám | Board to Board, Cable |
TE Connectivity AMP Connectors 104652-1 | All | Square | 6.35 mm, 8.13 mm, 9.91 mm | 2 | 0.187 in | 4.75 mm | -65 ░C | 105 ░C | 30 Áin | 0.76 Ám | 0.05 in | 1.27 mm | Female Socket | Copper Alloy | 0.05 in | 1.27 mm | Gold | Receptacle | Push-Pull | Solder | Tin-Lead | Black | Liquid Crystal Polymer (LCP) | 10 | Surface Mount | 150 Áin | 3.81 Ám | Board to Board, Cable |
TE Connectivity AMP Connectors 5-104652-2 | All | Square | 6.35 mm, 8.13 mm, 9.91 mm | 2 | 0.187 in | 4.75 mm | -65 ░C | 105 ░C | 30 Áin | 0.76 Ám | 0.05 in | 1.27 mm | Female Socket | Copper Alloy | 0.05 in | 1.27 mm | Gold | Receptacle | Push-Pull | Solder | Tin | Black | Liquid Crystal Polymer (LCP) | 20 | Surface Mount | 150 Áin | 3.81 Ám | Board to Board, Cable |
TE Connectivity AMP Connectors 104652-6 | All | Square | 6.35 mm, 8.13 mm, 9.91 mm | 2 | 0.187 in | 4.75 mm | -65 ░C | 105 ░C | 30 Áin | 0.76 Ám | 0.05 in | 1.27 mm | Female Socket | Copper Alloy | 0.05 in | 1.27 mm | Gold | Receptacle | Push-Pull | Solder | Tin-Lead | Black | Liquid Crystal Polymer (LCP) | 60 | Surface Mount | 150 Áin | 3.81 Ám | Board to Board, Cable |
TE Connectivity AMP Connectors 5-104652-3 | All | Square | 6.35 mm, 8.13 mm, 9.91 mm | 2 | 0.187 in | 4.75 mm | -65 ░C | 105 ░C | 30 Áin | 0.76 Ám | 0.05 in | 1.27 mm | Female Socket | Copper Alloy | 0.05 in | 1.27 mm | Gold | Receptacle | Push-Pull | Solder | Tin | Black | Liquid Crystal Polymer (LCP) | 30 | Surface Mount | 150 Áin | 3.81 Ám | Board to Board, Cable |
TE Connectivity AMP Connectors 104652-2 | All | Square | 6.35 mm, 8.13 mm, 9.91 mm | 2 | 0.187 in | 4.75 mm | -65 ░C | 105 ░C | 30 Áin | 0.76 Ám | 0.05 in | 1.27 mm | Female Socket | Copper Alloy | 0.05 in | 1.27 mm | Gold | Receptacle | Push-Pull | Solder | Tin-Lead | Black | Liquid Crystal Polymer (LCP) | 20 | Surface Mount | 150 Áin | 3.81 Ám | Board to Board, Cable |
TE Connectivity AMP Connectors 104652-7 | All | Square | 6.35 mm, 8.13 mm, 9.91 mm | 2 | 0.187 in | 4.75 mm | -65 ░C | 105 ░C | 30 Áin | 0.76 Ám | 0.05 in | 1.27 mm | Female Socket | Copper Alloy | 0.05 in | 1.27 mm | Gold | Receptacle | Push-Pull | Solder | Tin-Lead | Black | Liquid Crystal Polymer (LCP) | 70 | Surface Mount | 150 Áin | 3.81 Ám | Board to Board, Cable |
TE Connectivity AMP Connectors 6-104652-0 | All | Square | 6.35 mm, 8.13 mm, 9.91 mm | 2 | 0.187 in | 4.75 mm | -65 ░C | 105 ░C | 30 Áin | 0.76 Ám | 0.05 in | 1.27 mm | Female Socket | Copper Alloy | 0.05 in | 1.27 mm | Gold | Receptacle | Push-Pull | Solder | Tin | Black | Liquid Crystal Polymer (LCP) | 100 | Surface Mount | 150 Áin | 3.81 Ám | Board to Board, Cable |
TE Connectivity AMP Connectors 5-104652-6 | All | Square | 6.35 mm, 8.13 mm, 9.91 mm | 2 | 0.187 in | 4.75 mm | -65 ░C | 105 ░C | 30 Áin | 0.76 Ám | 0.05 in | 1.27 mm | Female Socket | Copper Alloy | 0.05 in | 1.27 mm | Gold | Receptacle | Push-Pull | Solder | Tin | Black | Liquid Crystal Polymer (LCP) | 60 | Surface Mount | 150 Áin | 3.81 Ám | Board to Board, Cable |
Description
General part information
104652 Series
70 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
