QSS-025-01-H-D-A-K-TR

Active

Samtec Inc.

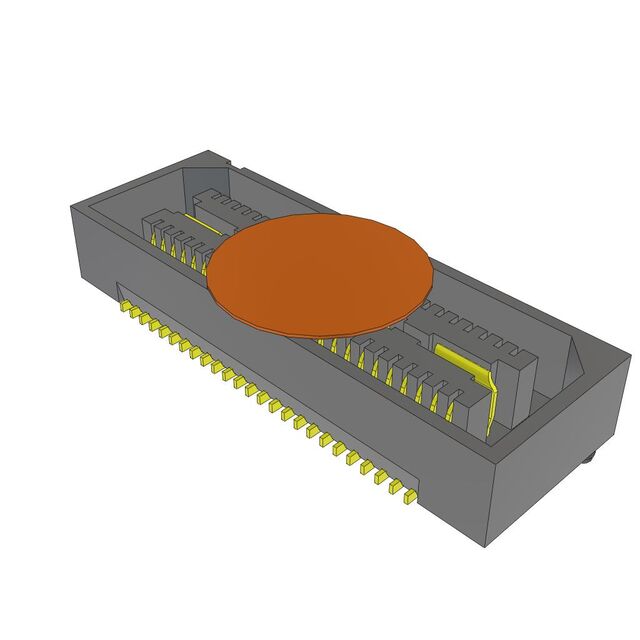

CONN SOCKET 50POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QSS-025-01-H-D-A-K-TR

Active

Samtec Inc.

CONN SOCKET 50POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QSS-025-01-H-D-A-K-TR

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Board Guide, Ground Bus (Plane), Pick and Place
Height Above Board	0.143 in
Height Above Board	3.63 mm
Mated Stacking Heights	5 mm
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

QSS-025 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Connector Type	Contact Finish	Number of Rows	Mated Stacking Heights	Mounting Type	Features
Samtec Inc. QSS-025-01-F-D-K-TR	3 Áin	0.076 Ám	50	0.143 in	3.63 mm	0.64 mm	0.025 in	Socket Center Strip Contacts	Gold	2	5 mm	Surface Mount	Ground Bus (Plane) Pick and Place
Samtec Inc. QSS-025-01-F-D-A-LS2	3 Áin	0.076 Ám	50	0.143 in	3.63 mm	0.64 mm	0.025 in	Socket Center Strip Contacts	Gold	2		Surface Mount	Board Guide Ground Bus (Plane) Mounting Flange
Samtec Inc. QSS-025-01-H-D-A-K-TR	30 Áin	0.76 Ám	50	0.143 in	3.63 mm	0.64 mm	0.025 in	Socket Center Strip Contacts	Gold	2	5 mm	Surface Mount	Board Guide Ground Bus (Plane) Pick and Place
Samtec Inc. QSS-025-01-H-D	30 Áin	0.76 Ám	50	0.143 in	3.63 mm	0.64 mm	0.025 in	Socket Center Strip Contacts	Gold	2	5 mm	Surface Mount	Ground Bus (Plane)
Samtec Inc. QSS-025-01-C-D-A-GP-K	50 µin	1.27 µm	50	0.143 in	3.63 mm	0.64 mm	0.025 in	Socket Center Strip Contacts	Gold	2	5 mm	Surface Mount	Board Guide Ground Bus (Plane) Mating Guide Pick and Place
Samtec Inc. QSS-025-01-L-D-A-K	10 Áin	0.25 Ám	50	0.143 in	3.63 mm	0.64 mm	0.025 in	Socket Center Strip Contacts	Gold	2		Surface Mount	Board Guide Ground Bus (Plane) Pick and Place
Samtec Inc. QSS-025-01-L-D-A-GP-K-TR	10 Áin	0.25 Ám	50	0.143 in	3.63 mm	0.64 mm	0.025 in	Socket Center Strip Contacts	Gold	2	5 mm	Surface Mount	Board Guide Ground Bus (Plane) Mating Guide Pick and Place
Samtec Inc. QSS-025-01-F-D-RA-MTI-K	3 Áin	0.076 Ám	50	0.328 in	8.33 mm	0.64 mm	0.025 in	Socket Center Strip Contacts	Gold	2		Surface Mount Right Angle	Ground Bus (Plane) Pick and Place
Samtec Inc. QSS-025-01-L-D-GP	10 Áin	0.25 Ám	50	0.143 in	3.63 mm	0.64 mm	0.025 in	Socket Center Strip Contacts	Gold	2	5 mm	Surface Mount	Ground Bus (Plane) Mating Guide
Samtec Inc. QSS-025-01-H-D-A-LS2-TR	30 Áin	0.76 Ám	50	0.143 in	3.63 mm	0.64 mm	0.025 in	Socket Center Strip Contacts	Gold	2	5 mm	Surface Mount	Board Guide Ground Bus (Plane) Mating Flange

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 14.63
		10	$ 13.85
		25	$ 13.33
		50	$ 13.00
		100	$ 9.97
	Tape & Reel (TR)	450	$ 8.95
		900	$ 6.96

Description

General part information

QSS-025 Series

50 Position Connector Socket, Center Strip Contacts Surface Mount Gold
