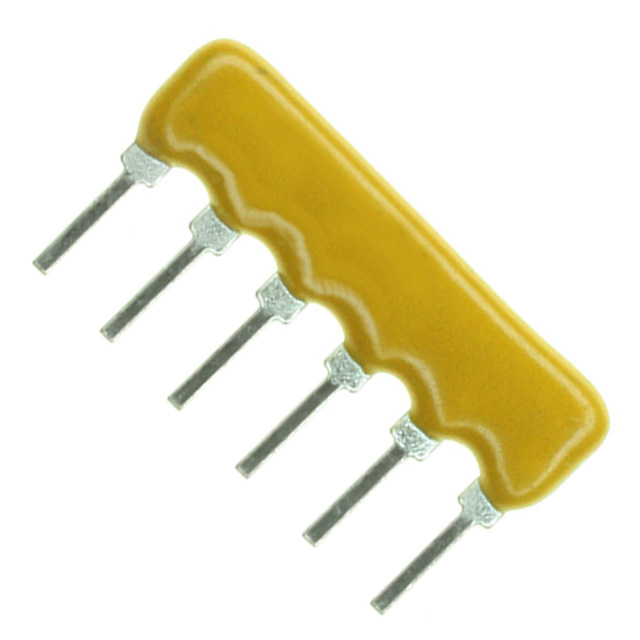

4606X-101-330

Obsolete

Bourns Inc.

RES ARRAY 5 RES 33 OHM 6SIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4606X-101-330

Obsolete

Bourns Inc.

RES ARRAY 5 RES 33 OHM 6SIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4606X-101-330

Circuit Type	Bussed
Height - Seated (Max) [Max] [z]	5.08 mm
Height - Seated (Max) [Max] [z]	0.2 "
Mounting Type	Through Hole
Number of Pins [custom]	6
Number of Resistors	5
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	6-SIP
Power Per Element	200 mW
Resistance (Ohms)	33 Ohms
Size / Dimension [x]	0.598 in
Size / Dimension [x]	15.19 mm
Size / Dimension [y]	2.49 mm
Size / Dimension [y]	0.098 in
Supplier Device Package	6-SIP
Temperature Coefficient	250 ppm/°C
Tolerance	1 Ohm

4606X Series

...

Part	Temperature Coefficient	Package / Case	Power Per Element	Number of Resistors	Mounting Type	Resistance (Ohms)	Number of Pins [custom]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Circuit Type	Supplier Device Package	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Resistance (Ohms)
Bourns Inc. 4606X-101-203LF	100 ppm/°C	6-SIP	200 mW	5	Through Hole	20 kOhms	6	2.49 mm	0.598 in	15.19 mm	0.098 in	Bussed	6-SIP	2 %	-55 °C	125 °C	5.08 mm	0.2 "
Bourns Inc. 4606X-102-102	100 ppm/°C	6-SIP	300 mW	3	Through Hole	1 kOhms	6	2.49 mm	0.598 in	15.19 mm	0.098 in	Isolated	6-SIP	2 %	-55 °C	125 °C	5.08 mm	0.2 "
Bourns Inc. 4606X-101-220LF	250 ppm/°C	6-SIP	200 mW	5	Through Hole	22 Ohms	6	2.49 mm	0.598 in	15.19 mm	0.098 in	Bussed	6-SIP	1 Ohm	-55 °C	125 °C	5.08 mm	0.2 "
Bourns Inc. 4606X-AP2-105LF	100 ppm/°C	6-SIP	300 mW	3	Through Hole		6	2.49 mm	0.598 in	15.19 mm	0.098 in	Isolated	6-SIP	2 %	-55 °C	125 °C	5.08 mm	0.2 "	1M
Bourns Inc. 4606X-102-330LF	250 ppm/°C	6-SIP	300 mW	3	Through Hole	33 Ohms	6	2.49 mm	0.598 in	15.19 mm	0.098 in	Isolated	6-SIP	1 Ohm	-55 °C	125 °C	5.08 mm	0.2 "
Bourns Inc. 4606X-101-122LF	100 ppm/°C	6-SIP	200 mW	5	Through Hole	1.2 kOhms	6	2.49 mm	0.598 in	15.19 mm	0.098 in	Bussed	6-SIP	2 %	-55 °C	125 °C	5.08 mm	0.2 "
Bourns Inc. 4606X-101-822LF	100 ppm/°C	6-SIP	200 mW	5	Through Hole	8.2 kOhms	6	2.49 mm	0.598 in	15.19 mm	0.098 in	Bussed	6-SIP	2 %	-55 °C	125 °C	5.08 mm	0.2 "
Bourns Inc. 4606X-102-222	100 ppm/°C	6-SIP	300 mW	3	Through Hole	2.2 kOhms	6	2.49 mm	0.598 in	15.19 mm	0.098 in	Isolated	6-SIP	2 %	-55 °C	125 °C	5.08 mm	0.2 "
Bourns Inc. 4606X-102-100LF	250 ppm/°C	6-SIP	300 mW	3	Through Hole	10 Ohms	6	2.49 mm	0.598 in	15.19 mm	0.098 in	Isolated	6-SIP	1 Ohm	-55 °C	125 °C	5.08 mm	0.2 "
Bourns Inc. 4606X-101-330	250 ppm/°C	6-SIP	200 mW	5	Through Hole	33 Ohms	6	2.49 mm	0.598 in	15.19 mm	0.098 in	Bussed	6-SIP	1 Ohm	-55 °C	125 °C	5.08 mm	0.2 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

4606X Series

33 Ohm ±1Ohm 200mW Power Per Element Bussed 5 Resistor Network/Array ±250ppm/°C 6-SIP
