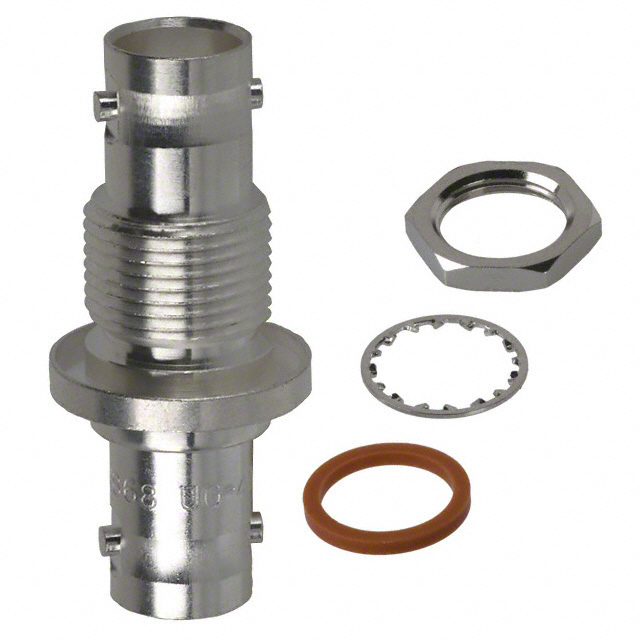

31-3220

Active

Amphenol RF

CONN ADAPT JACK-JACK BNC 50 OHM

Search across all available documentation for this part.

Active

Amphenol RF

CONN ADAPT JACK-JACK BNC 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	31-3220

Adapter Series	BNC to BNC
Adapter Type	Jack to Jack
Body Finish	Silver
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, BNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Includes	1 Gasket, 1 Connector, 1 Nut, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Convert To (Adapter End)	Body Material	Impedance	Fastening Type	Conversion Type	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Type	Frequency - Max [Max]	Includes	Convert From (Adapter End)	Center Gender	Dielectric Material	Adapter Series	Center Contact Material	Mating Cycles	Style	Mounting Feature	Body Finish
Amphenol RF 31-3220	BNC Jack Female Socket	Brass	50 Ohms	Bayonet Lock	Same Series	Silver	-65 ░C	165 °C	Jack to Jack	4 GHz	1 Connector 1 Gasket 1 Lockwasher 1 Nut	BNC Jack Female Socket	Female to Female	Polytetrafluoroethylene (PTFE)	BNC to BNC	Beryllium Copper	500	Straight	Bulkhead	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 50 Ohms
